CONNECTING THE VIDEO OUT TO YOUR TV

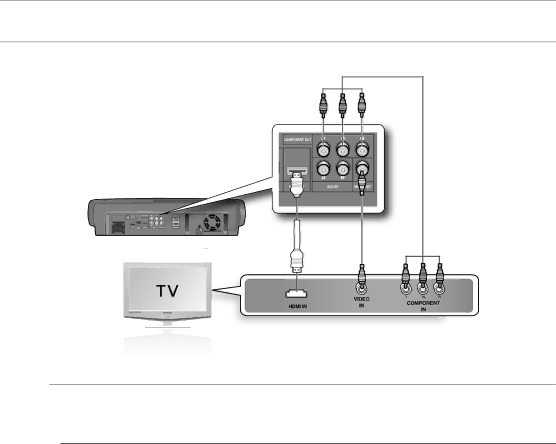

Choose one of the three methods for connecting to a TV.

METHOD1 METHOD3 (supplied)

METHOD2

METHOD 1 : HDMI (BEST)

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the Blu-ray Home Cinema to the HDMI IN jack on your TV.

MCertain HDMI output resolutions may not work, depending on your TV.

If an HDMI cable is connected from the player to a TV, the Blu-ray Home Cinema’s output is set to HDMI automatically within 10 seconds.

If you are using the Anynet + feature (see page 44) and Component and HDMI are both connected, HDMI mode is automatically selected.

When you connect the player to the TV using an HDMI cable for the fi rst time or to a new TV, the HDMI output resolution will automatically be set to the highest provided by the TV.

If you connect a Samsung TV to the Blu-ray Home Cinema using an HDMI cable, the player can be easily operated using the TV remote control. (This is only available with Samsung TVs that support the Anynet+ feature.) (See page 44)

After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your Blu-ray Home Cinema. See your TV owner's manual for more information on how to select the TV's Video Input source.

HDMI Auto Detection Function

The player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on. For possible HDMI resolutions, see page 41.

•HDMI (High Definition Multimedia Interface)

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.

Using HDMI, the Blu-ray Home Cinema transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.
