Grundig DR 3400 DD manual Connection diagram for the loudspeakers, Setting up the loudspeakers

Page 12

CONNECTION AND PREPARATION_________

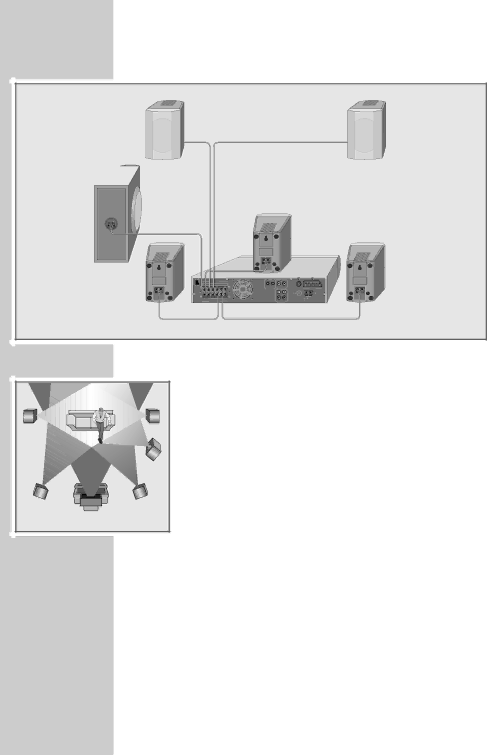

Connection diagram for the loudspeakers

Surround

right

Subwoofer

Centre

Surround

left

Front right





SPEAKER















SW

C

RS

LS

R

L











~AC IN









IN

OUT

IN

OUT

S-VIDEO











OPTICAL



VIDEO

SCART

















L





4-8 Ω





8-16 Ω









R

FM 75 Ω

AM











IN

OUT



LOOP





IMPEDANCE







AUDIO

RESET



Front left

Setting up the loudspeakers

Surround R

Surround L



Subwoofer

Front R

Front L



Centre

If possible, set up the front loudspeakers in line with the TV set, angled slightly towards the listener. The listener and the speakers should form an equilateral triangle. This creates the best stereo effect.

The surround loudspeakers should be angled slightly towards each other at a sufficient distance to the left and right behind the listener. They should be positioned at ear height, even when wall-mounted.

Set up the central loudspeaker at the midpoint between the two front speakers, for example above or below the TV set. The best height for the centre loudspeaker is at head height of the seated listener.

To achieve the best possible bass sound, we recommend that you set up the subwoofer to the left or right of the front loudspeakers, in such a way that the sound crosses the room diagonally.

When you are in the middle of the room, you may not be able to hear the bass tone of the subwoofer sufficiently. This is caused by what are known as standing waves, which occur between parallel walls. In this case, simply position the subwoofer at an angle to the wall.

Avoid placing the loudspeakers in a corner, because this over- amplifies the bass tones.

Objects in front of the loudspeakers significantly impair the treble tones and the stereo effect.

12
