Interior Lighting

The interior of the cabinet can be illuminated whenever the door is opened or remained darkened for a 36-hour period (blackout/Sabbath mode [not Star K certified]).

1

2

3

4

5







ULIN_0074_A

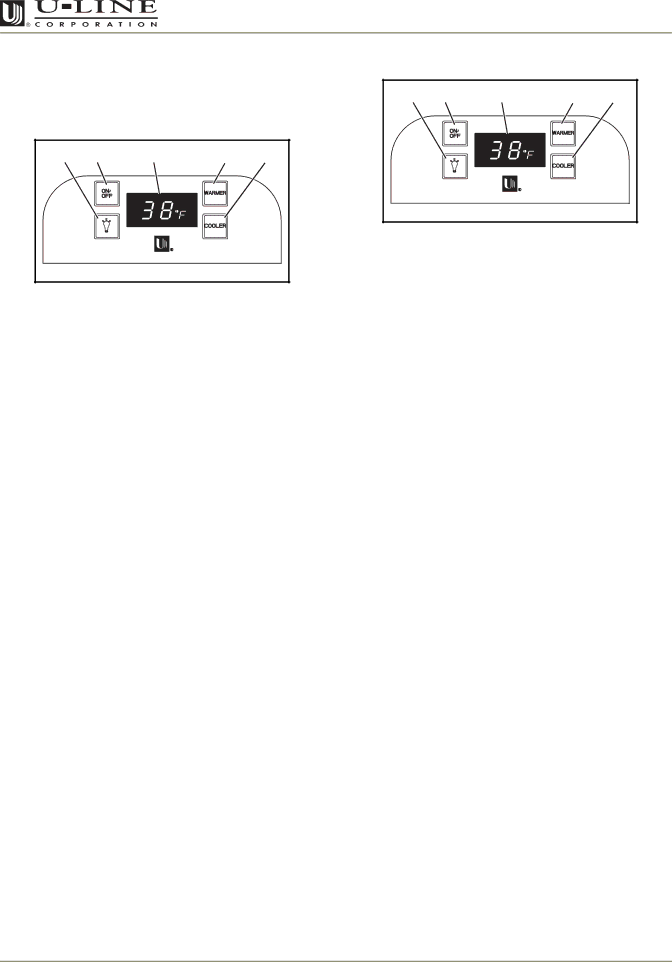

Figure 3

The LIGHT button (Figure 3, 1) on the control panel is used to change the lighting functions.

To turn the lights and display OFF for a preset 36-hour interval (blackout/Sabbath mode [not Star K certified]):

1.Press and hold the LIGHT button (Figure 3, 1) for ten seconds and release (the °F symbol will flash briefly at the end of the ten second period).

2.The interior light and control display (Figure 3, 3) will go dark for the next 36 hours.

NOTE: Although the display will not be visible, the temperature controls in the unit remain active, and the interior temperature will be maintained.

3.To exit the blackout/Sabbath mode (not Star K certified) before the 36-hour period, repeat Step 1.

Electronic Control Panel

1

2

3

4

5







ULIN_0074_A

Figure 4

The electronic control with digital display (Figure 4) is configured to show a single temperature continuously. This set-point temperature is a base number used by the controller to maintain the temperature zone in your unit. The factory default set-point is 38°F. This set-point temperature is used as a gauge if further temperature adjustments are required.

Temperature Display Selection

U-Line products supplied for 110 VAC operation have temperatures displayed in a default Fahrenheit (°F) configuration (Figure 4, 3). Models supplied for 220 VAC operation have temperatures displayed in a default Celsius (°C) configuration.

The display can easily be adjusted for either type of temperature display. Press and hold the LIGHT button (Figure 4, 1) and simultaneously within five seconds press the COOLER button (Figure 4, 5) three times to change the display as desired.

Temperature Display

To display actual temperature:

1.Press the WARMER button (Figure 4, 4) for five seconds. The display (Figure 4, 3) will indicate the actual temperature.

2.After approximately 10 seconds, the set point temperature will return to the display.
