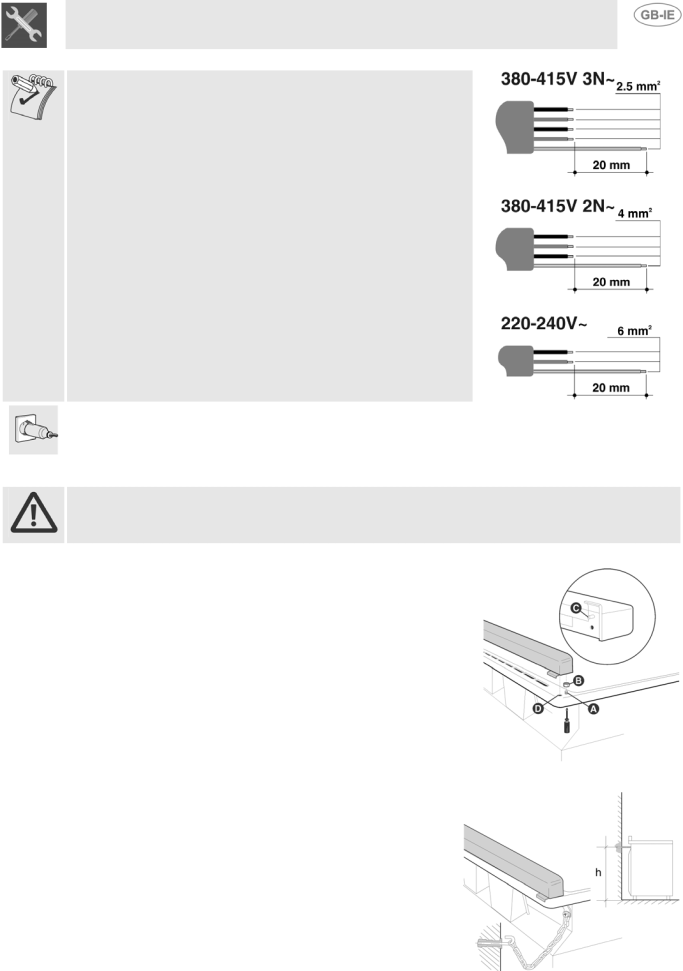

Instructions for the installer

For operation on 380-415V3N : use an H05RR-F /H05RN-F /

H05V2V2-F type five-core cable (5 x 2.5 mm2).

For operation on 380-415V2N : use an H05RR-F /H05RN-F /

H05V2V2-F type five-core cable (cavo di 4 x 4 mm2).

For operation on 220-240V : use an H05RR-F /H05RN-F /

H05V2V2-F (cavo di 3 x 6 mm2).

The cable end to be connected to the appliance must be provided with an ground wire (yellow-green) at least 20 mm longer.

Complete wiring up to power supply with an appropriately rated five-core plug (see data plate) or, in case of operation from a 220-240Vpower supply, with a three-core plug. Make sure that plug and wall socket are of the same type and are in conformity with regulations in force. Make sure that the appliance is properly earthed. Before powering, check that the power line is properly earthed. Avoid using adapters or shunters.

The manufacturer declines all responsibility for damage to persons or things caused by non- observance of the above prescriptions.

14.2 Mounting the rear top skirtboard (where applicable)

•Loosen nuts B.

•Position the skirt above the top, taking care to align pins C with holes D.

•Secure the skirt to the top by tightening screws A.

14.3 Wall fixing

•Stretch out the chain attached to the cooker horizontally so that the other end touches the wall.

•Mark the wall in the position where the hole is to be drilled.Drill the hole, insert the finned dowels and attach the chain.

•Move the cooker up against the wall.

21

Page 18 Page 20
Image 19
Page 18 Page 20
