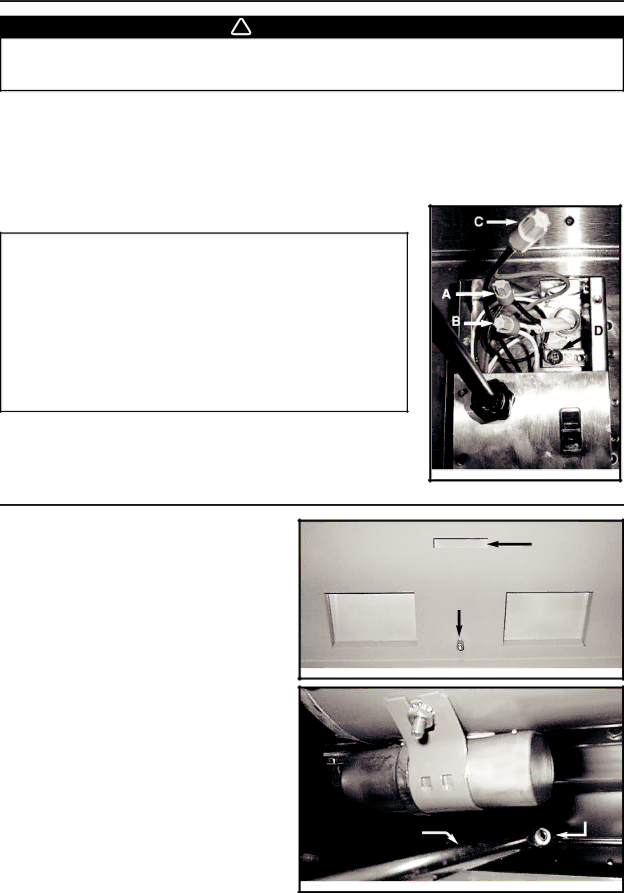

8. BRANCHEMENT ÉLECTRIQUE

!AVERTISSEMENT

Risque d’électrocution. Le raccordement électrique doit être effectué par du personnel qualifié conformément aux codes et standards. Avant d’effectuer le branchement, coupez l’alimentation électrique au panneau de service et verrrouillez-le pour éviter une mise en marche accidentelle.

Perforer l’ouverture pré-amorcée située à l’arrière de la hotte.

Retirer le couvercle du boîtier électrique. Installer le serre-fils à l’arrière du boîtier électrique. Passer le câble d’alimentation dans la boîte électrique à travers le serre-fil. Serrer le serre-fils complètement pour sécuriser le câble d’alimentation. Effectuer le branchement à l’intérieur du boîtier électrique à l’aide des connecteurs étanches fournis.

Connecter le fil NOIR du câble d’alimentation électrique au NOIR provenant du panneau de contrôle de la hotte (A), tous les fils BLANCS ensembles (B), le fil NOIR du boîtier électrique au fil ORANGE du panneau électrique de la hotte (C), et le fil VERT ou DÉNUDÉ à la vis de mise à la terre (D). NE PAS OUBLIER DE CONNECTER LA MISE À LA TERRE. Remettre le couvercle du boîtier électrique.

C

MARCHE À SUIVRE POUR LUTILISATION DES CONNECTEURS ÉTANCHES :

1.Dégainer les fils d’une longueur de 3/8 po.

2.Égaliser les brins ou les conducteurs.

3. Ne pas les tordre. Rapprocher les fils et mettre leurs bouts égaux, sauf

A

pour les fils à brins plus petits, qui eux doivent dépasser légèrement les

B

fils plus gros qu’eux.



D

4. Insérer les fils dans le connecteur en poussant fermement et tordre. NE PAS trop tordre.

5.Un peu de scellant pourrait s’échapper lors de l’insertion des fils dans un connecteur. Essuyer l’excès de scellant autour des conducteurs.

NE PAS RÉUTILISER.

9. INSTALLATION DU VENTILATEUR

HE0048

Engager l’écrou cylindrique (fourni avec le ventilateur) environ à mi-chemin sur la tige filetée située sur le dessus intérieur de la hotte.

Soulever le moteur à l’intérieur de la hotte, puis le glisser vers l’arrière de façon à engager la patte du moteur dans la fente du dessus de la hotte, et la tige filetée et son écrou dans la fente du moteur.

FENTE SUR

LE DESSUS

DE LA HOTTE

ÉCROU CYLINDRIQUE

OUVERTURE SUR TIGE FILETÉE OUVERTURE

DÉVACUATIONDÉVACUATION

HD0061

Àl’aide d’un long tournevis à lame plate, visser complètement l’écrou à la tige filetée. Brancher le moteur à sa prise, à l’extérieur du boîtier électrique.

MOTEUR DU VENTILATEUR

ÉCROU CYLINDRIQUE

TOURNEVIS À

LAME PLATE

HD0054
