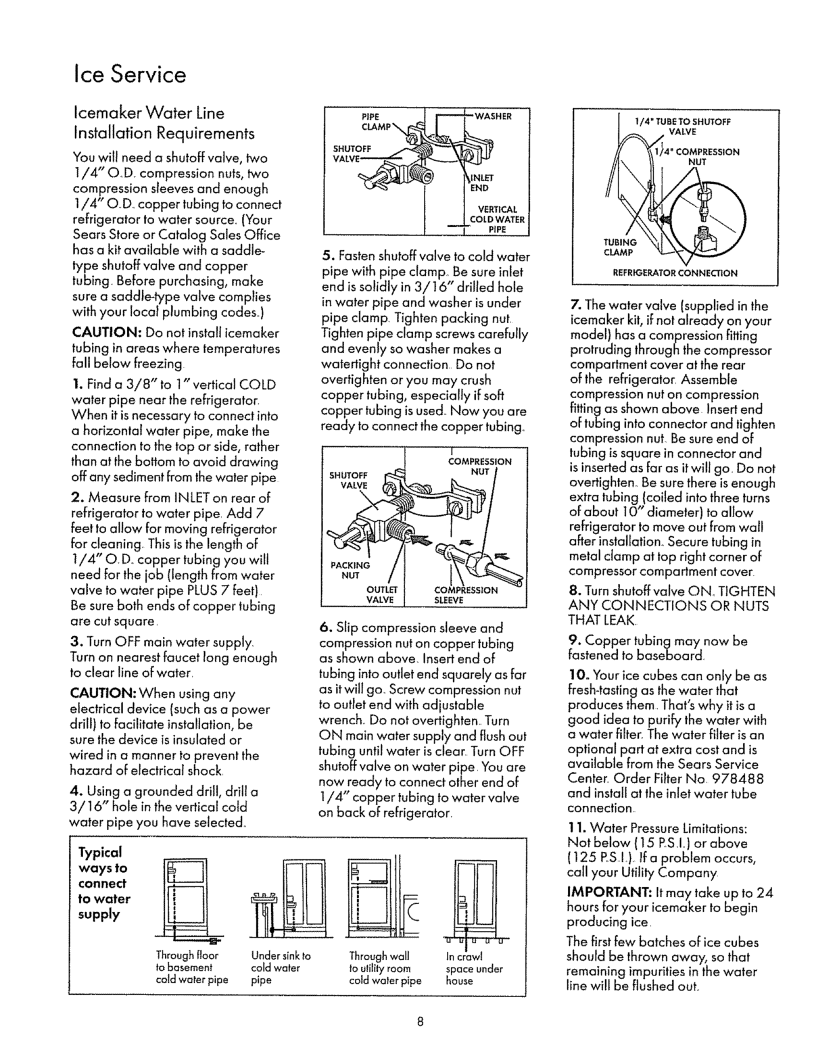

Icemaker Water Line Installation Requirements

Ice Service

Icemaker Water Line

Installation Requirements

You will need a shutoff valve, two 1/4" O,,D, compression nuts, two compression sleeves and enough 1/4" O. D, copper tubing to connect refrigerator to water source,, ("four

Sears Store or Catalog Sales Office has a kit available with a saddle-

type shutoff valve and copper tubing. Before purchasing, make sure a saddle-typevalve complies with your local plumbing codes.) CAUTION: Do not install icemaker tubing in areas where temperatures fall below freezing

1.Find a 3/8" to 1"vertical COLD

water pipe near the refrigerator, When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom to avoid drawing off any sediment from lhe water pipe 2. Measure from INLET on rear of refrigerator to water piper Add 7 feet to allow for moving refrigerator for cleaning. This is the length of t/4" O.D._copper tubing you will need for the job (length from water valve to water pipe PLUS 7 feet)

Be sure both ends of copper tubing are cut square,

3.Turn OFF main water supply, Turn on nearest faucet long enough to clear line of water,

CAUTION: When using any electrical device (such as a power drill) to facilitate installation, be sure the device isinsulated or

wired in a manner to prevent the hazard of electrical shock,

4.Using a grounded drill, drilt a 3/16" hole in the vertical cold water pipe you have selected,,

PIPE _I r _ -WASFIER

CkAMP__

vA vE X

VERT_C&L

COt D WATER

_---! p!pE

5.Fasten shutoff valve to cold water

pipe with pipe clamp Be sure inlet end is solidly in 3/16" drilled hole in water pipe and washer isunder pipe clamp, Tighten packing nut, Tighten pipe clamp screws carefully and evenly so washer makes a watertight connection Do not overtighten or you may crush copper tubing, especially if soft copper tubing is used_ Now you are ready to connect the copper tubing°

COMPRESSION NUT/

SHUTOFF _r_

VALVE _

PACKINGNUT /

OUTLET

VALVESLEEVE

6.Slip compression sleeve and

compression nut on copper tubing as shown above, Insert end of

tubing into outlet end squarely as for as it will go, Screw compression nut to outlet end with adjustable wrench. Do not overtighten,, Turn ON main water supply and flush out tubing until water is clear, Turn OFF shutoff valve on water pipe, You are now ready to connect other end of 1/4" copper tubing to water valve on back of refrigerator,

t/4"TUBETOSHUTOFE

VALVE

NUT

TUBING cLAMP

REFRIGERATORCONNECTION

7.The water valve (supplied in the icemaker kit, if not already on your model) has a compression fitting

protruding through the compressor compartment cover at the rear

of the refrigerator, Assemble

compression nut on compression fitting as shown above Insert end

of tubing into connector and tighten compression nut, Be sure end of tubing is square in connector and is inserted as far as it will go. Do not overtighteno Be sure there is enough extra tubing (coiled into three turns of about 10" diameter) to allow refrigerator to move out from watt after installation, Secure tubing in metal damp at top right corner of compressor compartment cover

8.Turn shutoff valve ON_ TIGHTEN ANY CONNECTIONS OR NUTS THAT LEAK.

9.Copper tubingmay now be fastened to baseboard,

10.Your ice cubes can only be as fresh-tasting as the water that

produces them. That'swhy it is a

good idea to purify the water with a water filter. The water filter is an

optional part at extra cost and is available from the Sears Service

Center_ Order Filter No 978488 and install at the inlet water tube connection

11. Water Pressure Limitations: Not below (15 P,SJ.) or above

Typical

ways to connect

to water

supply

Through floor	Undersinkto	Throughwall	In _wl
tobasement	coldwater	to ulility room	space under
coldwaterpipe	pipe	cold water pipe	house

(125 P,SI,), If a problem occurs, call your Utility Company

IMPORTANT: It may take up to 24 hours for your icemaker to begin producing ice,

The first few batches of ice cubes should be thrown away, so that remaining impurities in the water line will be flushed ouL
