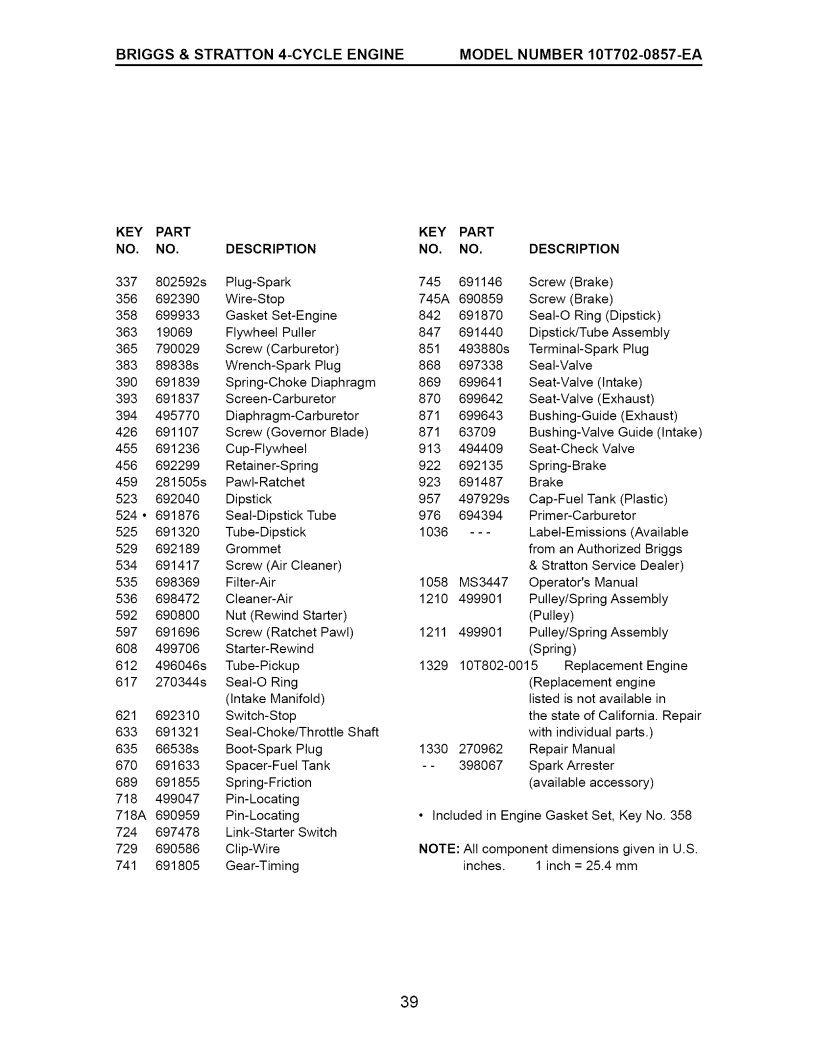

BRIGGS & STRATTON 4-CYCLE ENGINE

MODEL NUMBER 10T702-0857-EA

KEY

PART





NO.

NO.

DESCRIPTION



337

802592s

Plug-Spark



356

692390

Wire-Stop



358

699933

Gasket Set-Engine

363

19069

Flywheel Puller

365

790029

Screw (Carburetor)

383

89838s

Wrench-Spark

Plug

390

691839

Spring-Choke

Diaphragm

393

691837

Screen-Carburetor

394

495770

Diaphragm-Carburetor

426691107 Screw (Governor Blade)

455691236 Cup-Flywheel

456 692299 Retainer-Spring

459 281505s PawI-Ratchet

523 692040 Dipstick

524 • 691876 Seal-Dipstick Tube

525 691320 Tube-Dipstick

529 692189 Grommet

534691417 Screw (Air Cleaner)

535698369 Filter-Air

536698472 Cleaner-Air

592

690800

Nut (Rewind

Starter)

597

691696

Screw

(Ratchet Pawl)

608

499706

Starter-Rewind

612

496046s

Tube-Pickup



617

270344s

SeaI-O

Ring







(Intake

Manifold)

621

692310

Switch-Stop



633

691321

Seal-Choke/Throttle Shaft

635

66538s

Boot-Spark

Plug

670

691633

Spacer-Fuel

Tank

689

691855

Spring-Friction

718

499047

Pin-Locating



718A

690959

Pin-Locating



724

697478

Link-Starter

Switch

729

690586

Clip-Wire



741

691805

Gear-Timing



KEY

PART







NO.

NO.

DESCRIPTION



745

691146

Screw (Brake)



745A

690859

Screw (Brake)



842

691870

SeaI-O Ring (Dipstick)

847

691440

Dipstick/Tube

Assembly

851

493880s

Terminal-Spark

Plug

868

697338

Seal-Valve





869

699641

Seat-Valve

(Intake)

870

699642

Seat-Valve

(Exhaust)

871

699643

Bushing-Guide

(Exhaust)

871

63709

Bushing-Valve Guide (Intake)

913

494409

Seat-Check

Valve

922

692135

Spring-Brake



923

691487

Brake





957497929s Cap-Fuel Tank (Plastic)

976694394 Primer-Carburetor

1036

---

Label-Emissions (Available





from an Authorized Briggs

&Stratton Service Dealer)

1058 MS3447 Operator's Manual

1210 499901 Pulley/Spring Assembly

(Pulley)

1211 499901 Pulley/Spring Assembly (Spring)

1329 10T802-0015 Replacement Engine (Replacement engine listed is not available in

the state of California. Repair with individual parts.)

1330 270962 Repair Manual

398067 Spark Arrester (available accessory)

• Included in Engine Gasket Set, Key No. 358

NOTE: All component dimensions given in U.S.

inches.

1 inch = 25.4 mm

39
