Page 18

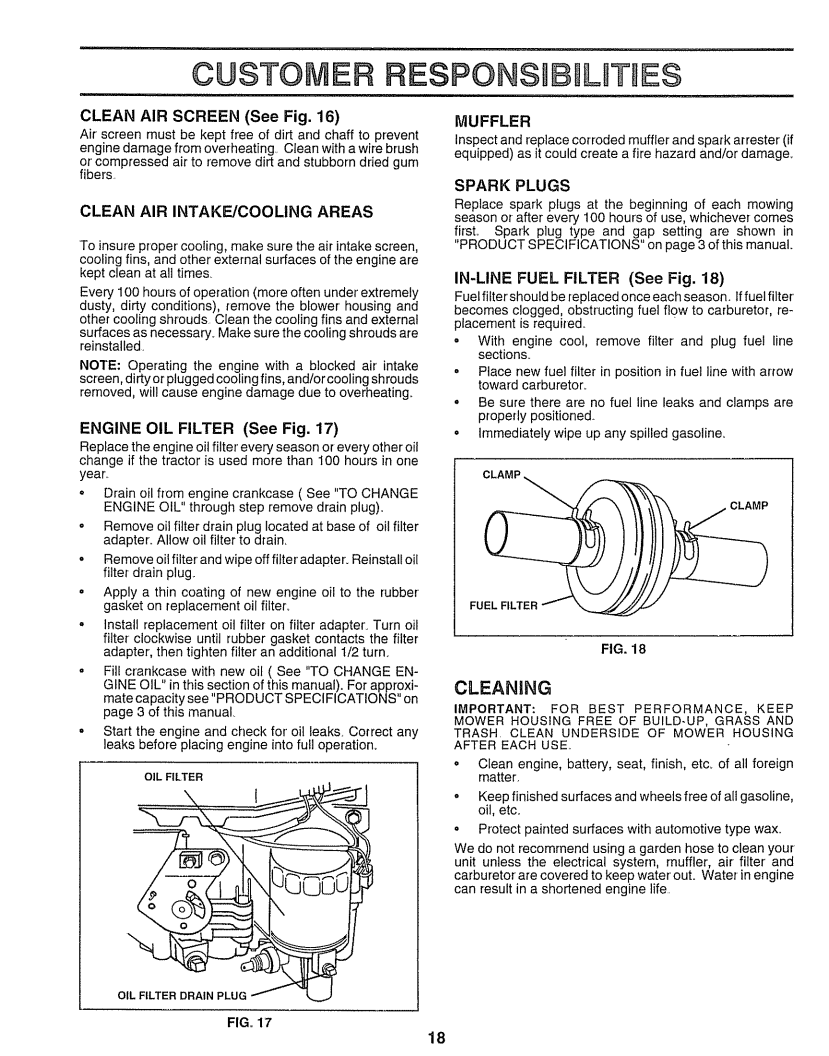

CUSTOMER RESPONS BnL T ES

CLEAN AIR SCREEN (See Fig. 16)

Air screen must be kept free of dirt and chaff to prevent engine damage from overheating Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum fibers

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the air intake screen, cooling fins, and other external surfaces of the engine are kept clean at all times

Every 100 hours of operation (more often under extremely dusty, dirty conditions), remove the blower'housing and other cooling shrouds Clean the cooling fins and external surfaces as necessary. Make sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked air intake screen, dirty or plugged cooling fins, and/or cooling shrouds removed, will cause engine damage due to overheating_

ENGINE OIL FILTER (See Fig. 17)

Replace the engine oil filter every season or every other oil change if the tractor is used more than 100 hours in one year.

•Drain oil from engine crankcase ( See "TO CHANGE ENGINE OIL" through step remove drain plug).

oRemove oil filter drain plug located at base of oil filter adapter. Allow oil filter to drain.

•Remove oil filter'and wipe off filter'adapter. Reinstall oil filter drain plug_

°Apply a thin coating of new engine oil to the rubber gasket on replacement oil filter.

°Install replacement oil filter on filter adapter. Turn oil filter clockwise until rubber gasket contacts the filter adapter, then tighten filter an additional 1/2 turn.

Fill crankcase with new oil ( See "TO CHANGE EN- GINE OIL" in this section of this manual). For approxi- mate capacity see "PRODUCT SPECIFICATIONS" on page 3 of this manual

•Start the engine and check for oil leaks. Correct any leaks before placing engine into full operation.

OIL FILTER

I

MUFFLER

Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage,

SPARKPLUGS

Replace spark plugs at the beginning of each mowing season or after every 100 hours of use, whichever comes first. Spark plug type and gap setting are shown in "PRODUCT SPECIFICATIONS" on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig. 18)

Fuel filter should be replaced once each season. Iffuel filter

becomes clogged, obstructing fuel fl0w to carburetor, re- placement is required.

oWith engine cool, remove filter and plug fuel line sections.

°Place new fuel filter in position in fuel line with arrow toward carburetor_

oBe sure there are no fuel line leaks and clamps are properly positioned.

°Immediately wipe up any spilled gasoline_

CLAMP

FUEL FILTER /

FIG. 18

CLEANING

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER HOUSING FREE OF BUILD-UP, GRASS AND

TRASH CLEAN UNDERSIDE OF MOWER HOUSING AFTER EACH USE

oClean engine, battery, seat, finish, etc_ of all foreign matter.

°Keep finished surfaces and wheels free of all gasoline, oil, etc.

°Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your' unit unless the electrical system, muffler, air filter'and carburetor are covered to keep water'out. Water in engine can result in a shortened engine life

OIL FILTER

FIGo 17

18
