Page 17

ENGLISH

HOW TO USE AND SET FEATURES

MAIN IN JACKS

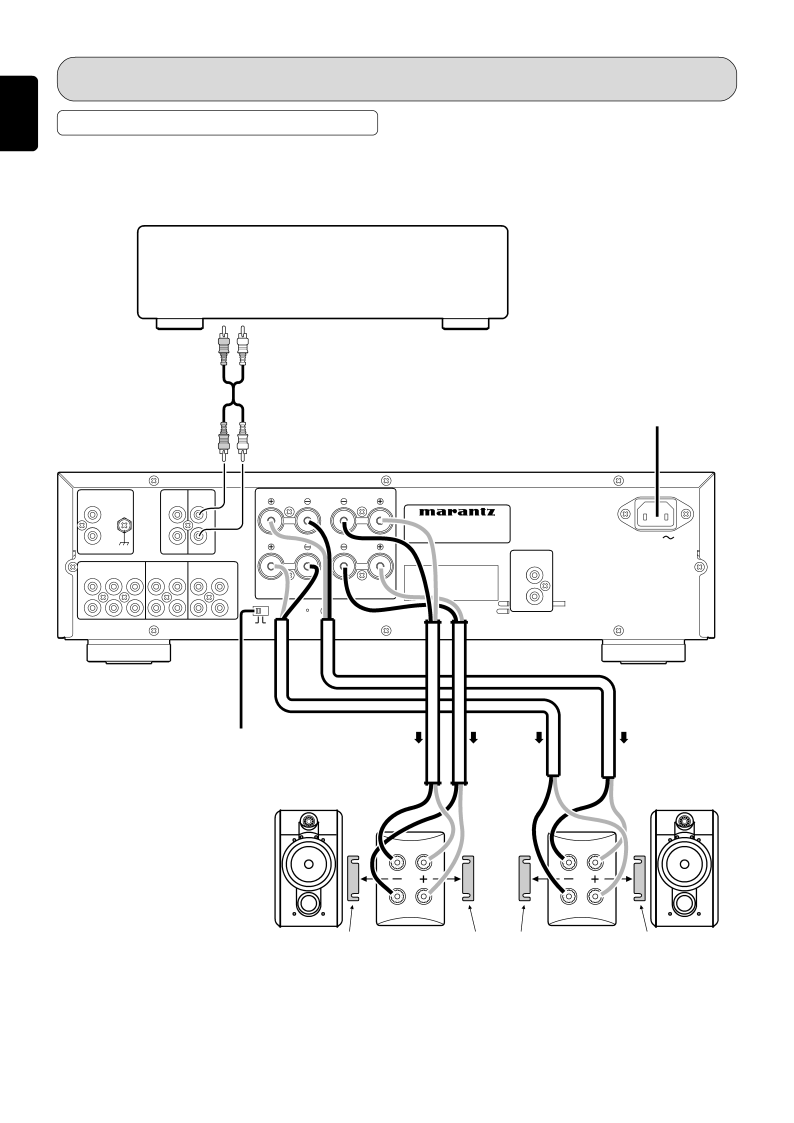

You can separate the pre-amplifier section and main-amplifier section by using the SEPARATE switch settings on the PM7001. If you have another pre-amplifier, you can use the PM7001 as the main-amplifier by connecting as shown in the diagram below.

Pre-amplifier

To PRE OUT Jacks

To power outlet











Set the SPEAKERS 1 and 2 button on the











front panel to the ON position.



PHONO



PRE OUT

MAIN IN

R

SPEAKERS

L











SYSTEM 1



L

GND

L

L





MODEL NO. PM7001

















R



R

R







AC IN

























SYSTEM 2



















REMOTE













SERIAL NO.

CONTROL















CD

TUNER AUX

RECORDER 1

RECORDER 2











/ DVD

IN OUT

IN OUT







IN















L





L

SYSTEM 1 OR SYSTEM 2 4 -16 OHMS











SYSTEM 1 AND SYSTEM 2 8

-16 OHMS

OUT





















SEPARATE







R





R















ON

OFF







Set to “ON

MF / HF

MF / HF



LF





LF



Remove

L CH

Remove

Remove

R CH

Remove shorting

shorting

speaker

shorting

shorting

speaker

bar.

bar.



bar.

bar.





Use a bi-wiring connection (pg. 3) for speakers.

12

Image 17
Contents Model PM7001 / PM7001 KI User Guide English CE Marking Advertencias Contents Copyright Equipment Mains Working SettingBefore USE PM7001 KI Version Features FeaturesBefore Making Connections Wiring Speaker CableBI-WIRING Connection Record Player To Line OUT jacks CD player ConnectionsConnection Example Basic Connection for Stereo Playback Speaker Main-amplifier To power outletTo input jacks Set to OFFFront Panel Names and Functions of PartsRear Panel Volume adjustment buttons Power ON/OFF buttonsInput selector buttons Component operating buttonsTape TunerDVD Operatable range of Remote controller For use of Remote controllerLoading batteries On the front of the PM7001 Approx mPlayback Basic OperationDisc Playback on an CD Player Disc Playback on an Analog Record PlayerUse a bi-wiring connection pg for speakers HOW to USE and SET FeaturesMain in Jacks Set to onFor details connecting the speakers, see Remote Control JacksIs the power cable plugged securely into the power outlet? TroubleshootingBefore considering it as a failure About the Protective CircuitRepairs Specifications & Dimensional DrawingsOthers 07/2005 00M14AJ851310 mzt-d

PM7001KI specifications

The Marantz PM7001KI is a high-performance integrated amplifier that exemplifies the brand's dedication to audio excellence. Designed as part of the Special Edition series, it serves as a tribute to the legendary audio engineer Ken Ishiwata, who significantly contributed to Marantz's legacy. This amplifier combines both elegance and power, making it an attractive choice for audiophiles seeking superior sound quality.

One of the standout features of the PM7001KI is its robust power output. With a continuous power rating of 70 watts per channel into 8 ohms, and even more at lower impedances, this amplifier can drive a variety of speakers with ease. The current feedback amplifier design, a hallmark of Marantz engineering, ensures that the PM7001KI delivers a fast response time and a wide frequency range, resulting in crystal-clear highs and deep, rich lows.

The amplifier is equipped with a vast array of connectivity options. It includes multiple line inputs for additional components, a dedicated phono stage for vinyl aficionados, and a pre-out feature that allows for the connection of separate power amplifiers. This versatility ensures that the PM7001KI can seamlessly integrate into any audio setup.

In terms of build quality, the PM7001KI does not disappoint. It boasts a sturdy chassis designed to minimize vibrations, shielding the internal components from interference. The use of high-quality capacitors and a precision-engineered volume control further enhances the audio experience, providing cleaner, undistorted sound at any volume level.

Another notable technology employed in the PM7001KI is the innovative HDAM (Hyper Dynamic Amplifier Module) circuit, which replaces the conventional operational amplifiers found in many amplifiers. This technology improves audio performance by minimizing noise and increasing dynamic range, leading to a more engaging listening experience.

In summary, the Marantz PM7001KI Integrated Amplifier is a perfect fusion of power, precision, and versatility. Its dedication to exceptional sound quality, combined with a stylish design and comprehensive features, makes it an ideal choice for serious music lovers. Whether listening to classical, jazz, or rock, the PM7001KI ensures that every note is delivered with clarity and impact, staying true to Marantz's commitment to quality audio for decades.
