Echo PAS-225 manual Plastic shield installation, For Nylon Line Operation

Page 10

10

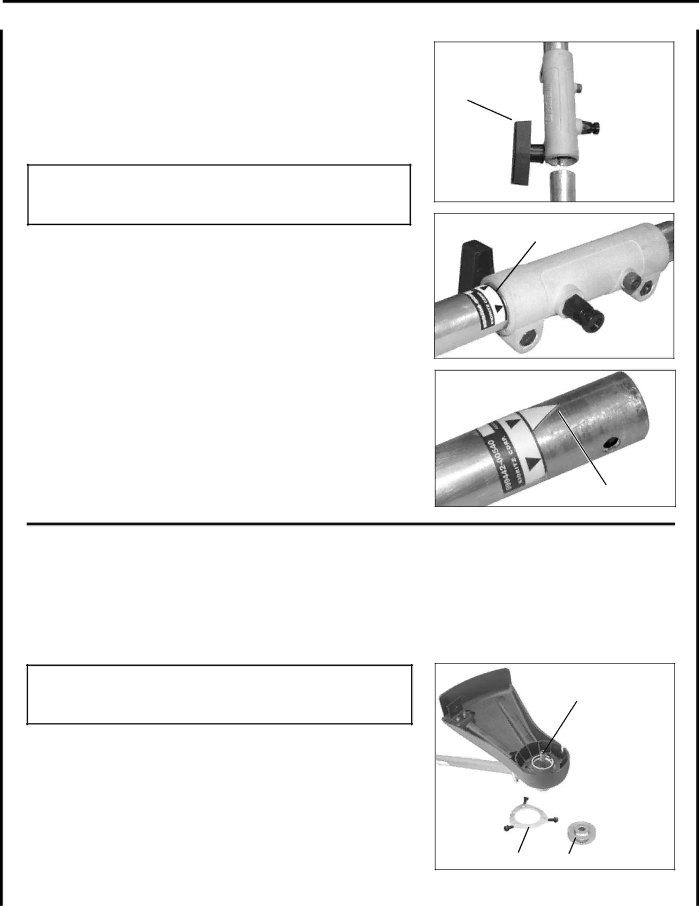

5.Carefully fit attachment drive shaft assembly into coupler (B) to decal assembly line (C), making sure that the inner lower drive shaft engages the square upper drive shaft socket.

NOTE

Lower bearing housing and head assembly must be in line with the engine.

6.Rotate locator pin (A) 1/4 turn clockwise to engage lower shaft hole. Insure locator pin is fully engaged by twisting lower drive shaft. Locator pin should snap flush in coupler. Full engagement will prevent further shaft rotation.

7.Secure lower shaft assembly to coupler by tightening clamping knob (D).

B

D

A

C

E

plastic shield installation

(for Nylon Line Operation)

Parts Required: Plastic Shield, Shield Plate, three (3) 5mm x 16mm screws.

NOTE

The plastic shield is for use with the Nylon Line Head only. Install Metal Shield when using plastic or metal blades.

1.Remove plastic threaded shaft sleeve and adapter plate (C) from PTO shaft (A).

2.Place the shield on the bottom of the bearing housing flange.

3.Place shield plate (B) on shield, align holes. Install three (3) screws from bottom through plate and shield into gear case.

4.Assemble adapter plate (C) onto PTO shaft.

A

B C

Page 9 Page 11
Image 10
Page 9 Page 11
Contents Pro Attachment SeriesTM Introduction Safety manualTable of Contents Operators manualSafety Manual safety symbols and important information International symbolsPersonal condition and safety equipment Repetitive Stress Injuries Clear the Work AreaEmission Control exhaust & evaporative EquipmentEPA 2010 and Later and/or C.A.R.B. Tier Description Page Contents Assembly Power head shaft/lower shaft assemblyPlastic shield installation For Nylon Line OperationTo advance trimmer line Nylon line head installationRemove nylon line head Front handle installation OperationTrimmer operation with blades Preparing the Trimmer/Brush Cutter for Blade UseChoosing the Correct Blade Operating blower Fuel Fuel RequirementsStarting cold engine Mixing InstructionsStarting warm engine Recoil StarterStopping engine MaintenanceSkill levels Maintenance intervals Air filterFuel filter Spark plugCooling system Exhaust system Exhaust Port CleaningSpark Arrestor Screen Engine Break-In Carburetor adjustmentHigh Altitude Operation Lubrication Gear HousingDrive Shaft Lower Nylon line replacement Drive Shaft UpperSharpening metal blades trimmers Tooth BladeTroubleshooting Internal engine problem See your Echo dealerStorage Storage Hook InstallationLong Term Storage over 30 days Specifications Model PAS-225 Value PackEcho approved optional attachments Recommended optional attachmentsWarranty Statements Exceptions99922201032 12/03/09 01/2010 Pro Attachment SeriesTM Operators Manual Servicing Information parts/serial number ServiceWarranty registration Additional or replacement manuals Echo consumer product support

PAS-225 specifications

The Echo PAS-225 is a versatile and powerful outdoor power tool designed for homeowners and professionals who demand efficiency and reliability in garden maintenance tasks. This product stands out in the market due to its innovative features and robust technology that simplify yard work while maximizing performance.

One of the main features of the Echo PAS-225 is its lightweight design. Weighing only about 10.5 pounds, this power head is easy to maneuver, reducing user fatigue during extended use. The unit is equipped with a low-emission, 21.2 cc professional-grade, 2-stroke engine, which not only delivers ample power for various attachments but also complies with stringent emission regulations, making it an environmentally friendly option.

The PAS-225 features a unique Power Agility system, allowing users to interchange multiple attachments with ease. This makes it a highly adaptable solution for a myriad of gardening tasks, from trimming and edging to blowing leaves and cultivating soil. The attachment system is user-friendly, enabling quick changes without the need for specialized tools.

Ergonomics play a crucial role in the design of the PAS-225. The padded handlebars provide a comfortable grip, which helps minimize strain during operation. Additionally, the unit boasts an easy start technology that ensures reliable ignition with minimal effort, setting a new standard in starting ease.

Another noteworthy technology in the PAS-225 is its vibration-dampening system. This reduces the amount of vibration transmitted to the user’s hands, enhancing comfort and control while operating the machine. It's particularly beneficial for prolonged use, making it easier to manage the tool safely.

The fuel efficiency of the PAS-225 is another significant characteristic. Featuring a special engine design that optimizes fuel consumption, users can expect longer run times between refueling, enhancing productivity without frequent interruptions.

In terms of maintenance, the Echo PAS-225 is designed for durability and ease of care. The air filter is easily accessible, facilitating quick cleaning or replacement, and the engine is built to withstand rigorous use over time, ensuring longevity and reliability.

In summary, the Echo PAS-225 is a well-engineered, lightweight, and durable power tool that excels in versatility, performance, and user comfort. Whether for a homeowner looking to maintain their yard or a professional landscaper needing reliable equipment, the PAS-225 includes all the essential features and technologies to tackle a wide range of outdoor tasks with ease and efficiency.
