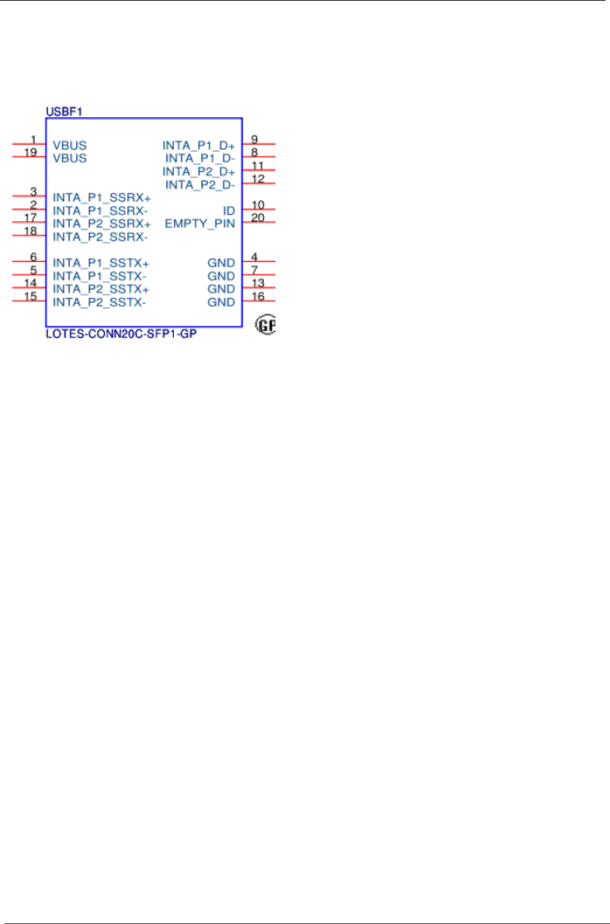

Header Name | Function | Definition |
|
|
|
| Front USB3.0 | 1:USB PWR |
| Header | 2:RXN1 |
|
| 3:RXP1 |
|
| 4:GND |
|
| 5:TXN1 |
|
| 6:TXP1 |
|
| 7:GND |
|
| 8:USB_N1 |
|
| 9:USB_P1 |
|
| 10:OC |
|
| 11:USB_P2 |
|
| 12:USB_N2 |
|
| 13:GND |
|
| 14:TXP2 |
|
| 15:TXN2 |
|
| 16:GND |
|
| 17:RXP2 |
|
| 18:RXN2 |
|
| 19:USB PWR |
|
| 20:NC |
|
|
|
82 | Chapter 5 |
Header Name | Function | Definition |
|
|
|
| Front USB3.0 | 1:USB PWR |
| Header | 2:RXN1 |
|
| 3:RXP1 |
|
| 4:GND |
|
| 5:TXN1 |
|
| 6:TXP1 |
|
| 7:GND |
|
| 8:USB_N1 |
|
| 9:USB_P1 |
|
| 10:OC |
|
| 11:USB_P2 |
|
| 12:USB_N2 |
|
| 13:GND |
|
| 14:TXP2 |
|
| 15:TXN2 |
|
| 16:GND |
|
| 17:RXP2 |
|
| 18:RXN2 |
|
| 19:USB PWR |
|
| 20:NC |
|
|
|
82 | Chapter 5 |
