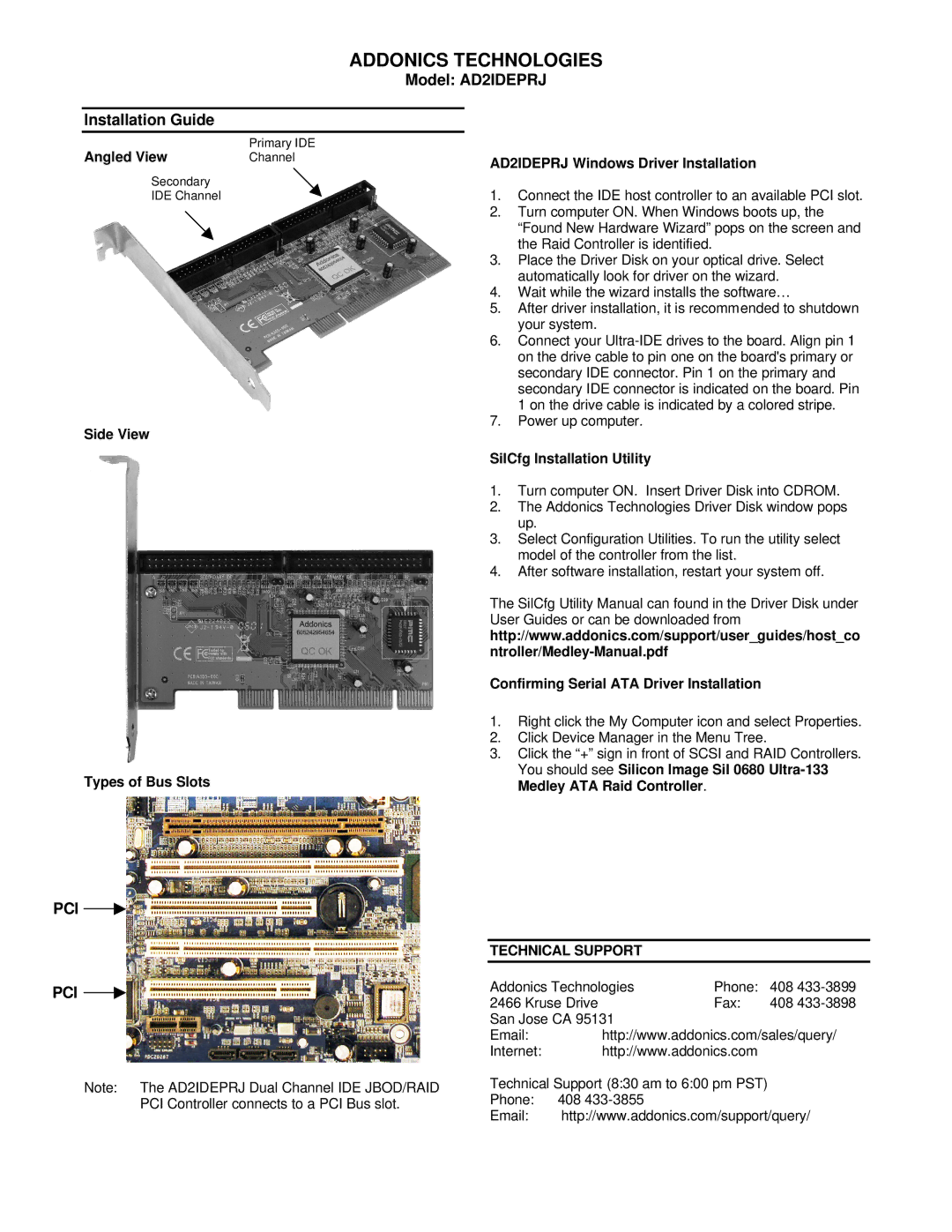

ADDONICS TECHNOLOGIES
Model: AD2IDEPRJ
Installation Guide
Angled View | Primary IDE |
Channel | |
Secondary |
|
IDE Channel |
|
Side View
Types of Bus Slots
AD2IDEPRJ Windows Driver Installation
1.Connect the IDE host controller to an available PCI slot.
2.Turn computer ON. When Windows boots up, the “Found New Hardware Wizard” pops on the screen and the Raid Controller is identified.
3.Place the Driver Disk on your optical drive. Select automatically look for driver on the wizard.
4.Wait while the wizard installs the software…
5.After driver installation, it is recommended to shutdown your system.
6.Connect your
7.Power up computer.
SilCfg Installation Utility
1.Turn computer ON. Insert Driver Disk into CDROM.
2.The Addonics Technologies Driver Disk window pops up.
3.Select Configuration Utilities. To run the utility select model of the controller from the list.
4.After software installation, restart your system off.
The SilCfg Utility Manual can found in the Driver Disk under User Guides or can be downloaded from http://www.addonics.com/support/user_guides/host_co
Confirming Serial ATA Driver Installation
1.Right click the My Computer icon and select Properties.
2.Click Device Manager in the Menu Tree.
3.Click the “+” sign in front of SCSI and RAID Controllers. You should see Silicon Image SiI 0680
PCI
PCI
Note: The AD2IDEPRJ Dual Channel IDE JBOD/RAID PCI Controller connects to a PCI Bus slot.
TECHNICAL SUPPORT
Addonics Technologies | Phone: | 408 | |
2466 Kruse Drive | Fax: | 408 | |
San Jose CA 95131 |
|
| |
Email: | http://www.addonics.com/sales/query/ | ||
Internet: | http://www.addonics.com |
| |
Technical Support (8:30 am to 6:00 pm PST) |
| ||
Phone: | 408 |
|
|
Email: | http://www.addonics.com/support/query/ | ||
