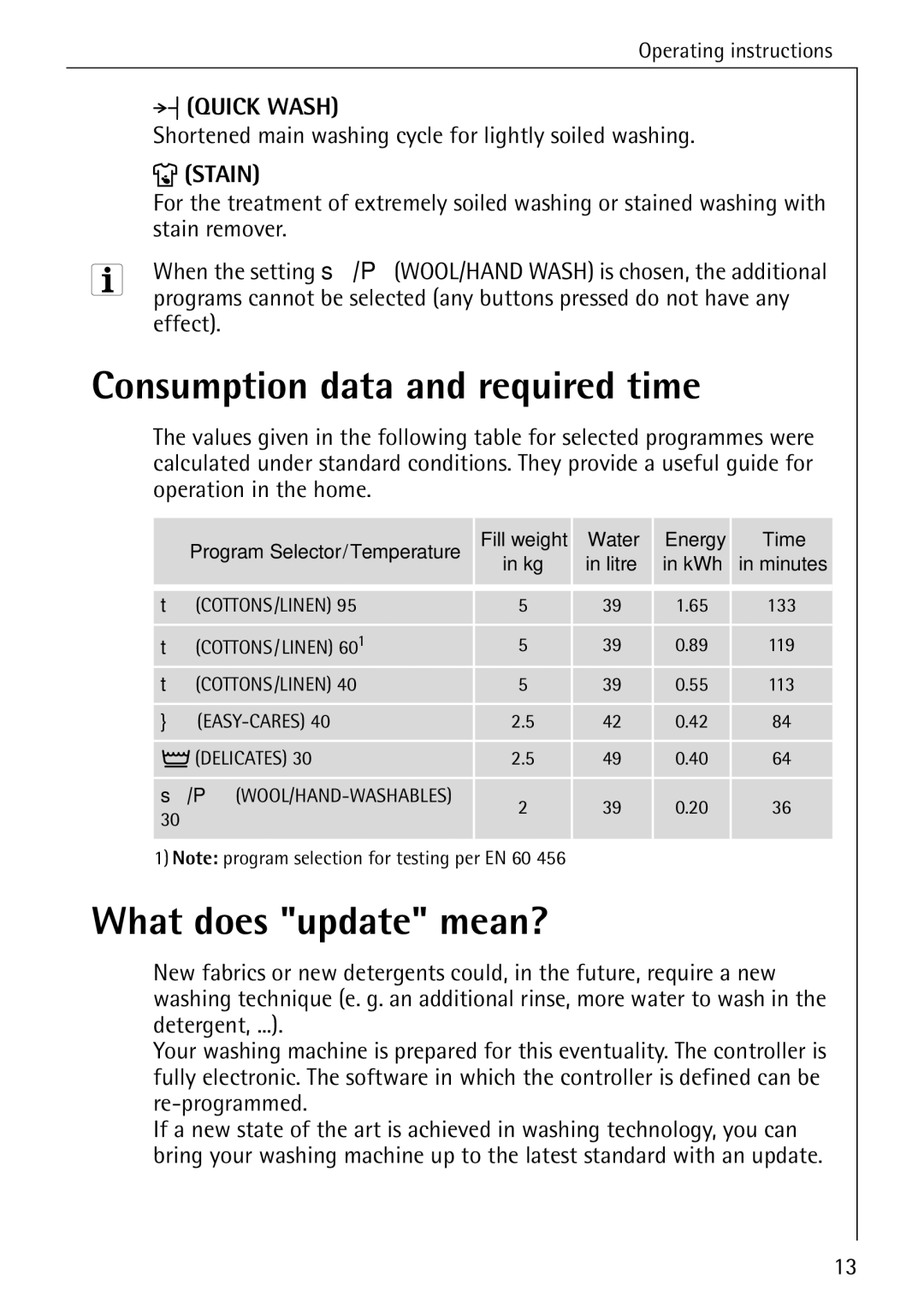

Operating instructions
<(QUICK WASH)
Shortened main washing cycle for lightly soiled washing.
ä(STAIN)
For the treatment of extremely soiled washing or stained washing with stain remover.
3 | When the setting s/P(WOOL/HAND WASH) is chosen, the additional |
| programs cannot be selected (any buttons pressed do not have any |
effect).
Consumption data and required time
The values given in the following table for selected programmes were calculated under standard conditions. They provide a useful guide for operation in the home.
Program Selector/Temperature | Fill weight | Water | Energy | Time | |
in kg | in litre | in kWh | in minutes | ||
| |||||
t (COTTONS/LINEN) 95 | 5 | 39 | 1.65 | 133 | |
t (COTTONS/LINEN) 601 | 5 | 39 | 0.89 | 119 | |
t (COTTONS/LINEN) 40 | 5 | 39 | 0.55 | 113 | |
} | 2.5 | 42 | 0.42 | 84 | |
à (DELICATES) 30 | 2.5 | 49 | 0.40 | 64 | |
s/P | 2 | 39 | 0.20 | 36 | |
30 | |||||
|
|
|
| ||
|
|
|
|
| |
1) Note: program selection for testing per EN 60 456 |
|
|
| ||
What does "update" mean?
New fabrics or new detergents could, in the future, require a new washing technique (e. g. an additional rinse, more water to wash in the detergent, ...).
Your washing machine is prepared for this eventuality. The controller is fully electronic. The software in which the controller is defined can be
If a new state of the art is achieved in washing technology, you can bring your washing machine up to the latest standard with an update.
13
