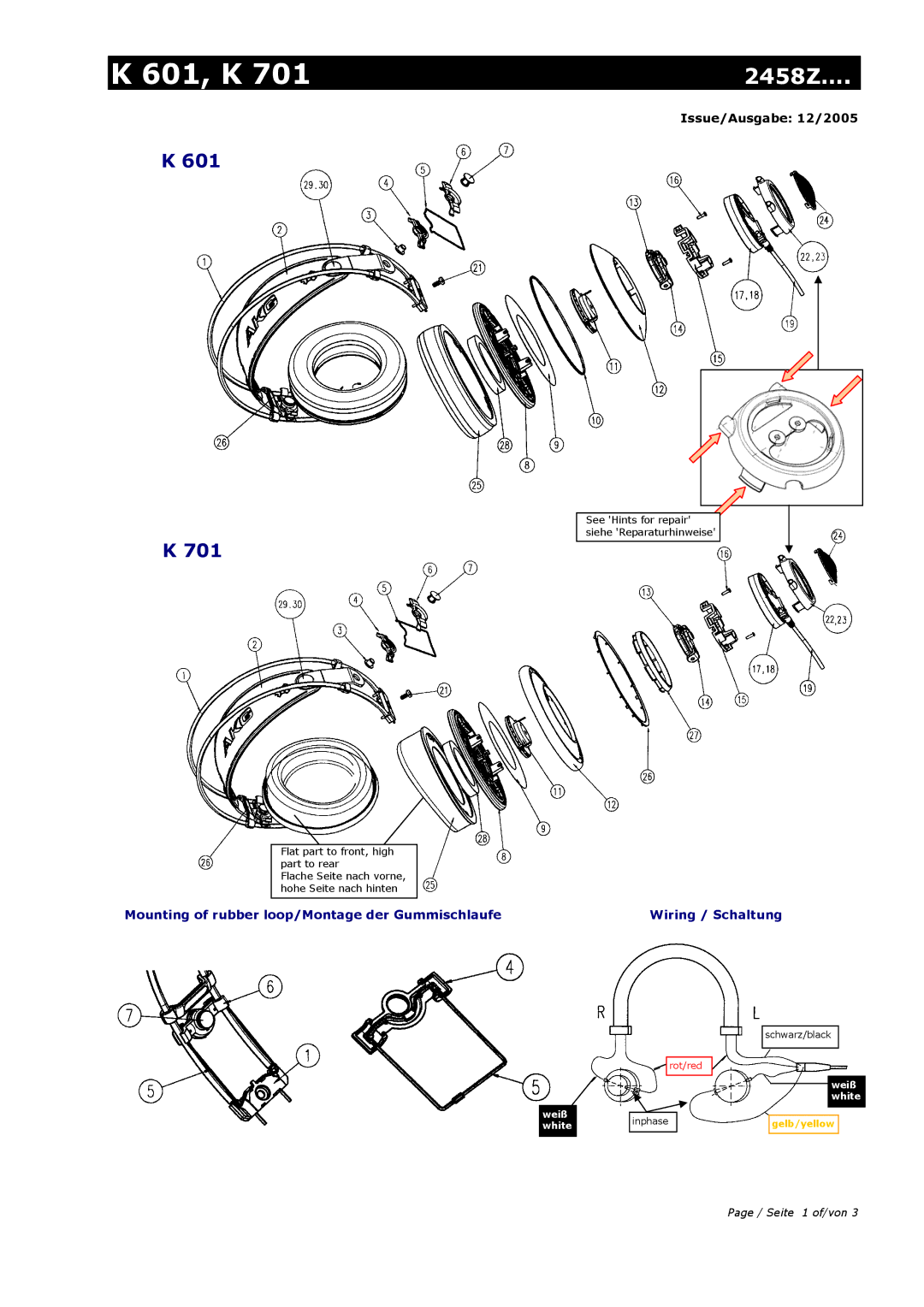

K 601, K 701 | 2458Z…. |
| Issue/Ausgabe: 12/2005 |
K 601
K 701
Flat part to front, high part to rearFlache Seite nach vorne, hohe Seite nach hintenSee 'Hints for repair' siehe 'Reparaturhinweise'
Mounting of rubber loop/Montage der Gummischlaufe | Wiring / Schaltung |
weiß white
schwarz/blackrot/red
weiß white
inphase |
|
|
| gelb/yellow | |
|
|
|
Page / Seite 1 of/von 3
