Before you start installing the POE converter, please verify that the package contains the following items.

-The POE100 Series

-AC Power Cord

-CD containing this manual

Please notify your sales representative if any of the above items are missing or damaged.

4.1POE100 converter with a Powered Device (PD)

1.Connect the POE100 converter to an AC power source.

2.Connect the copper cable to your IEEE 802.3af compliant PD device. e.g. Wireless Access Point, IP Phone, IP Camera

Note:

The POE100 can also work as a standard media converter and connect to a non POE device.

3.Connect the fibre cable to your connecting device.

	Default: Auto

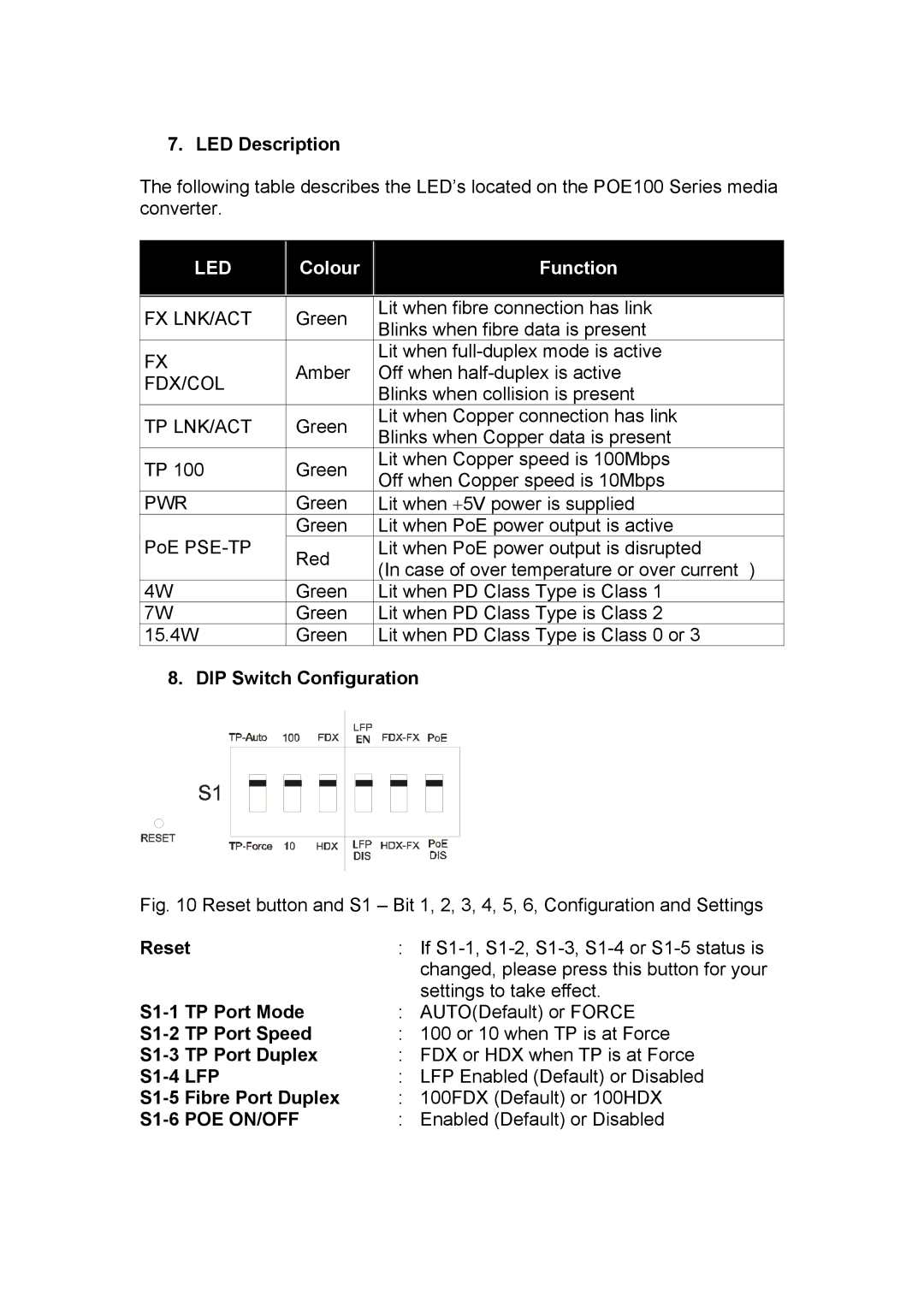

TP	Auto or Force setting, see figure 10. S1-Bit 1
TP	Attach Cat. 5 cable to the copper port and ensure the cable run is not
Port	over 100m in distance.
	The Copper port supports Auto MDI-X, therefore there is no need to
	use a cross-over cable when connecting to a switch.
Fibre	Default: 100FDX
Port	”100FDX”/”100HXD” setting, see figure 10. S1-Bit 5
