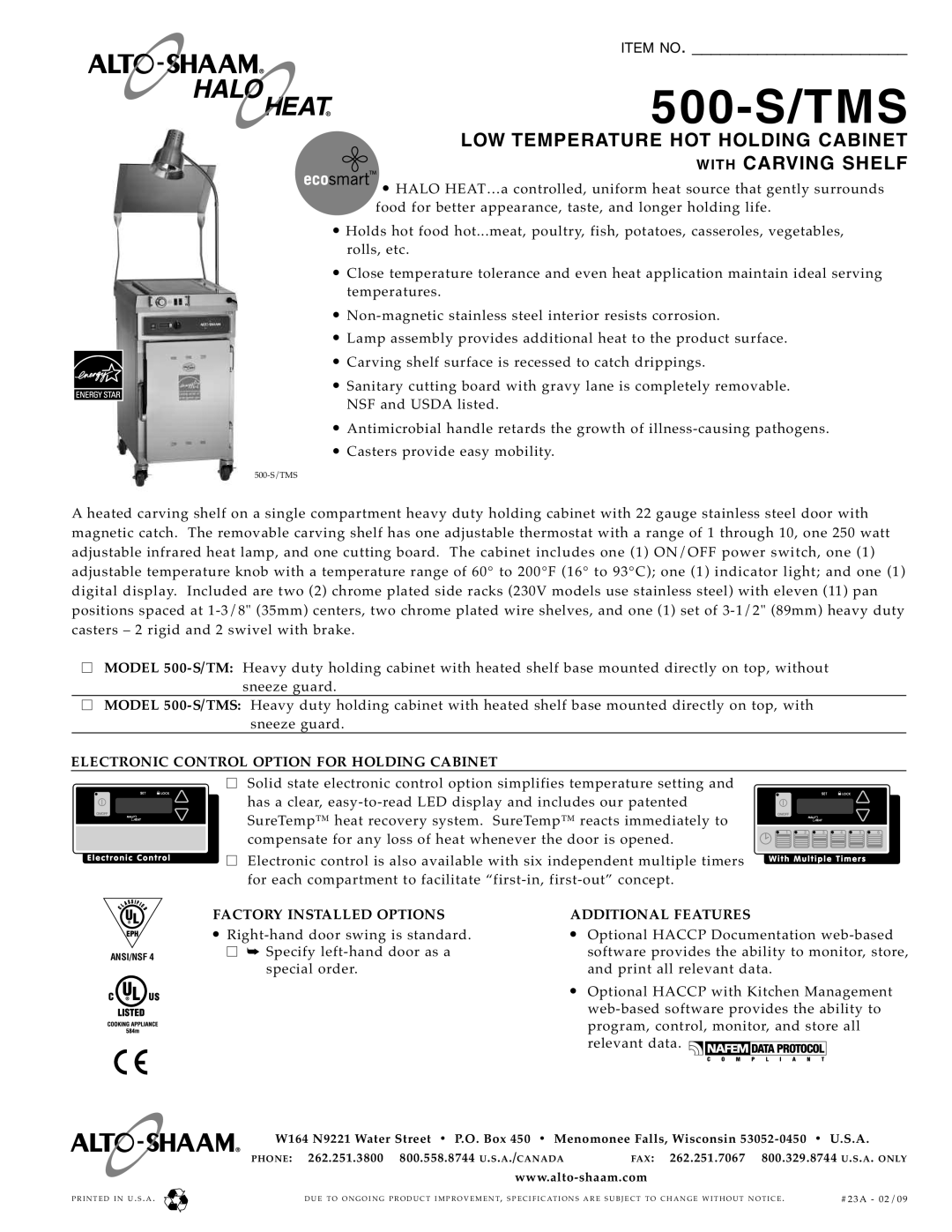

ITEM NO. _______________________



500-S/TMS



LOW TEMPERATURE HOT HOLDING CABINET



WITH CARVING SHELF



HALO HEAT…a controlled, uniform heat source that gently surrounds



food for better appearance, taste, and longer holding life.

Holds hot food hot...meat, poultry, fish, potatoes, casseroles, vegetables,



rolls, etc.

Close temperature tolerance and even heat application maintain ideal serving



temperatures.

Non-magnetic stainless steel interior resists corrosion.

Lamp assembly provides additional heat to the product surface.

Carving shelf surface is recessed to catch drippings.

Sanitary cutting board with gravy lane is completely removable.



NSF and USDA listed.

Antimicrobial handle retards the growth of illness-causing pathogens.

Casters provide easy mobility.

500-S/TMS



A heated carving shelf on a single compartment heavy duty holding cabinet with 22 gauge stainless steel door with magnetic catch. The removable carving shelf has one adjustable thermostat with a range of 1 through 10, one 250 watt adjustable infrared heat lamp, and one cutting board. The cabinet includes one (1) ON/OFF power switch, one (1) adjustable temperature knob with a temperature range of 60° to 200°F (16° to 93°C); one (1) indicator light; and one (1) digital display. Included are two (2) chrome plated side racks (230V models use stainless steel) with eleven (11) pan positions spaced at 1-3/8" (35mm) centers, two chrome plated wire shelves, and one (1) set of 3-1/2" (89mm) heavy duty casters – 2 rigid and 2 swivel with brake.

MODEL 500-S/TM:Heavy duty holding cabinet with heated shelf base mounted directly on top, without

sneeze guard.

MODEL 500-S/TMS:Heavy duty holding cabinet with heated shelf base mounted directly on top, with

sneeze guard.

ELECTRONIC CONTROL OPTION FOR HOLDING CABINET

Solid state electronic control option simplifies temperature setting and has a clear, easy-to-read LED display and includes our patented

SureTemp™ heat recovery system. SureTemp™ reacts immediately to

compensate for any loss of heat whenever the door is opened. 1 2 3 4 5 6 Electronic control is also available with six independent multiple timers

for each compartment to facilitate “first-in, first-out” concept.

FACTORY INSTALLED OPTIONS

Right-hand door swing is standard.

ANSI/NSF 4

Specify left-hand door as a



special order.

ADDITIONAL FEATURES

Optional HACCP Documentation web-based software provides the ability to monitor, store,

and print all relevant data.

Optional HACCP with Kitchen Management web-based software provides the ability to

program, control, monitor, and store all relevant data.





W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450

• U.S.A.





PHONE:

262.251.3800 800.558.8744 U.S.A./CANADA

FAX: 262.251.7067 800.329.8744

U.S.A. ONLY

P R I N T E D I N U .S .A .

www.alto-shaam.com



# 2 3 A - 0 2 / 0 9

D U E T O O N G O I N G P R O D U C T I M P R O V E M E N T, S P E C I F I C AT I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E .



Page 1
Image 1
Alto-Shaam 500-S/TM specifications LOW Temperature HOT Holding Cabinet, With Carving Shelf, Factory Installed Options

500-S/TM, MODEL 500-S/TMS specifications

The Alto-Shaam MODEL 500-S/TMS and 500-S/TM are robust cooking and holding solutions designed to elevate the kitchen experience in commercial environments. These versatile units are ideal for a variety of food service applications, providing exceptional performance while ensuring food quality and safety.

One of the standout features of the Alto-Shaam 500 series is its patented Halo Heat technology. This innovative cooking system utilizes gentle, radiating heat to maintain food at the perfect serving temperature without overcooking or drying it out. This technology ensures that dishes retain their flavor, moisture, and texture, making the 500 series an essential addition to any kitchen where quality is paramount.

The design of the 500-S/TMS and 500-S/TM models emphasizes efficiency and user-friendliness. With a user-friendly digital control system, chefs can easily set precise temperature and humidity levels. The programmable features allow for multiple food items to be cooked and held at target temperatures, providing ultimate flexibility and consistency in food preparation.

Both models are constructed with high-quality stainless steel, making them durable and easy to clean. Their compact footprint allows for optimal use of kitchen space without sacrificing performance. The built-in casters provide mobility, enabling seamless movement between kitchen stations, while the front-loading doors offer convenience for busy environments.

Another significant characteristic of the Alto-Shaam 500 series is its energy efficiency. These models are designed to consume minimal power while maximizing output, which is not only cost-effective but also environmentally friendly. By maintaining food at safe temperatures with minimal energy consumption, operators can fulfill health regulations while reducing utility costs.

The flexibility of the 500-S/TMS and 500-S/TM models allows them to accommodate a wide range of menu items, from meats and vegetables to baked goods. Their ability to hold food for extended periods without compromising quality makes them suitable for buffet service, catering events, and high-volume operations.

In summary, the Alto-Shaam MODEL 500-S/TMS and 500-S/TM bring together advanced technology, durable construction, and user-friendly features to meet the demands of modern food service operations. With Halo Heat technology, programmable controls, and efficient design, these models are a reliable choice for any professional kitchen aiming to deliver quality food consistently.
