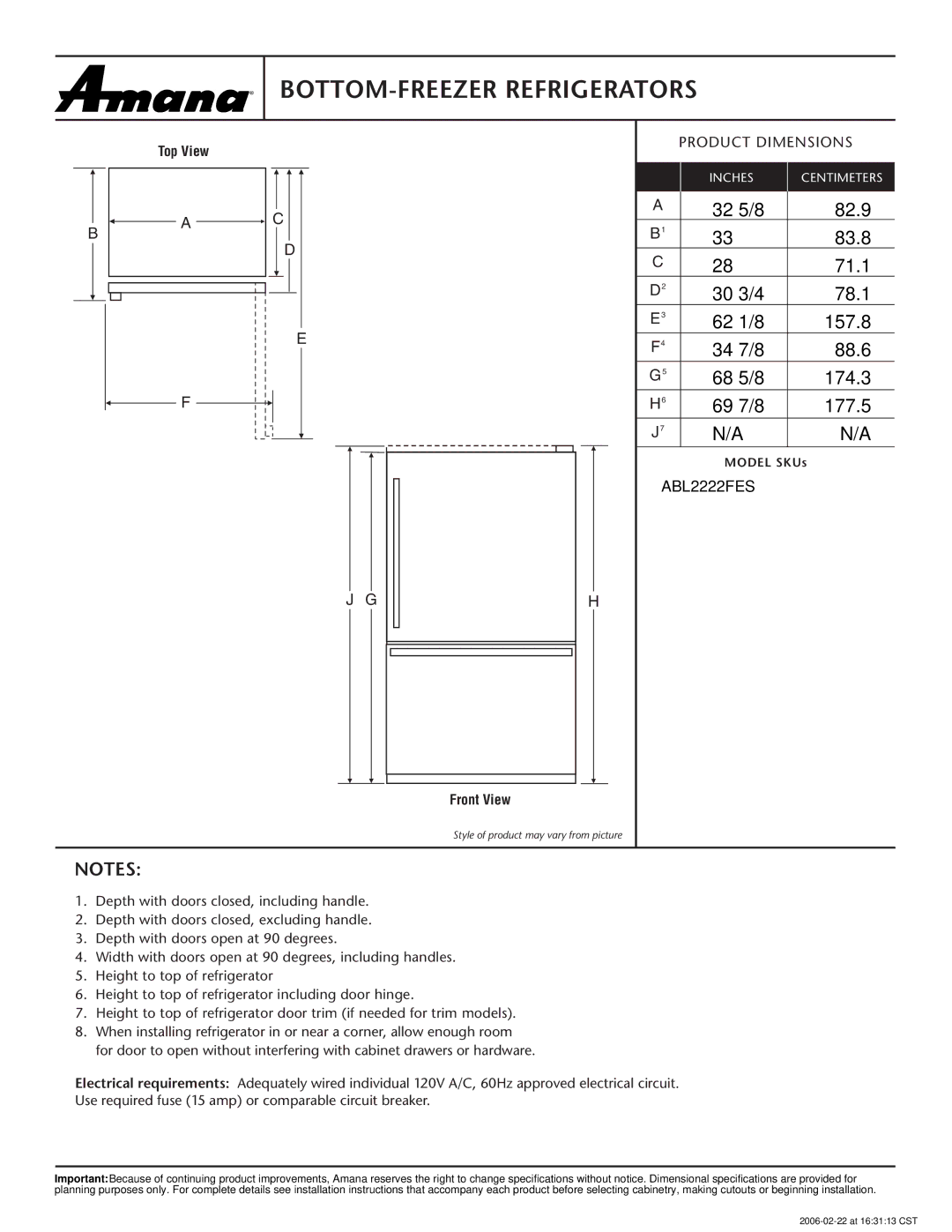

BOTTOM-FREEZER REFRIGERATORS

Top View

B A C

D

E

F

J GH

PRODUCT DIMENSIONS



INCHES

CENTIMETERS







A

32 5/8

82.9

B1

33

83.8

C

28

71.1

D2

30 3/4

78.1

E3

62 1/8

157.8

F4

34 7/8

88.6

G5

68 5/8

174.3

H6

69 7/8

177.5

J7

N/A

N/A

MODEL SKUs

ABL2222FES

Front View

Style of product may vary from picture

NOTES:

1.Depth with doors closed, including handle.

2.Depth with doors closed, excluding handle.

3.Depth with doors open at 90 degrees.

4.Width with doors open at 90 degrees, including handles.

5.Height to top of refrigerator

6.Height to top of refrigerator including door hinge.

7.Height to top of refrigerator door trim (if needed for trim models).

8.When installing refrigerator in or near a corner, allow enough room for door to open without interfering with cabinet drawers or hardware.

Electrical requirements: Adequately wired individual 120V A/C, 60Hz approved electrical circuit.

Use required fuse (15 amp) or comparable circuit breaker.

Important:Because of continuing product improvements, Amana reserves the right to change specifications without notice. Dimensional specifications are provided for planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.

2006-02-22 at 16:31:13 CST

Page 1
Image 1
Amana ABL2222FES dimensions BOTTOM-FREEZER Refrigerators, Product Dimensions, Top View, Front View

ABL2222FES specifications

The Amana ABL2222FES is a top-of-the-line refrigerator that combines functionality, efficiency, and sleek design, making it an ideal choice for modern kitchens. This model features a spacious 22 cubic feet capacity, providing ample storage space for all your groceries and perishables. The refrigerator's design includes a traditional top-freezer layout, which is preferred by many for its ergonomic convenience.

One of the main features of the Amana ABL2222FES is its Energy Star certification. This certification highlights its energy efficiency, allowing users to save on their electricity costs without compromising performance. The efficient cooling system ensures that food stays fresher for longer, reducing food waste and maintaining quality.

Inside the refrigerator, adjustable shelves allow for versatile storage options. The glass shelves are spill-proof, designed to contain any spills that may occur, making cleaning a breeze. Additionally, the crispers are humidity-controlled, ensuring that fruits and vegetables stay fresh and crisp. The dual crispers provide separate spaces for different types of produce, enhancing organization and accessibility.

The Amana ABL2222FES is equipped with a frost-free freezer, which eliminates the need for manual defrosting, saving time and effort. The freezer compartment includes storage bins that help categorize frozen items, making it easier to locate items. This thoughtful design reflects a user-centric approach, emphasizing convenience.

In terms of technology, the refrigerator features a mechanical temperature control system, making it straightforward for users to select and maintain their desired temperatures. The appliance is also built with quiet operation technology, ensuring minimal noise disruption in the kitchen, which is beneficial for open-concept living spaces.

Another notable characteristic of the Amana ABL2222FES is its exterior finish. Available in a sleek stainless steel finish, the refrigerator not only complements contemporary kitchen aesthetics but is also designed with resistance to fingerprints, ensuring that it maintains its sleek appearance with minimal maintenance.

Overall, the Amana ABL2222FES stands out as a reliable appliance that combines practicality, efficiency, and modern design. With features tailored to meet the needs of today’s families, it is a worthwhile investment for anyone in search of a high-quality refrigerator that delivers both style and performance.
