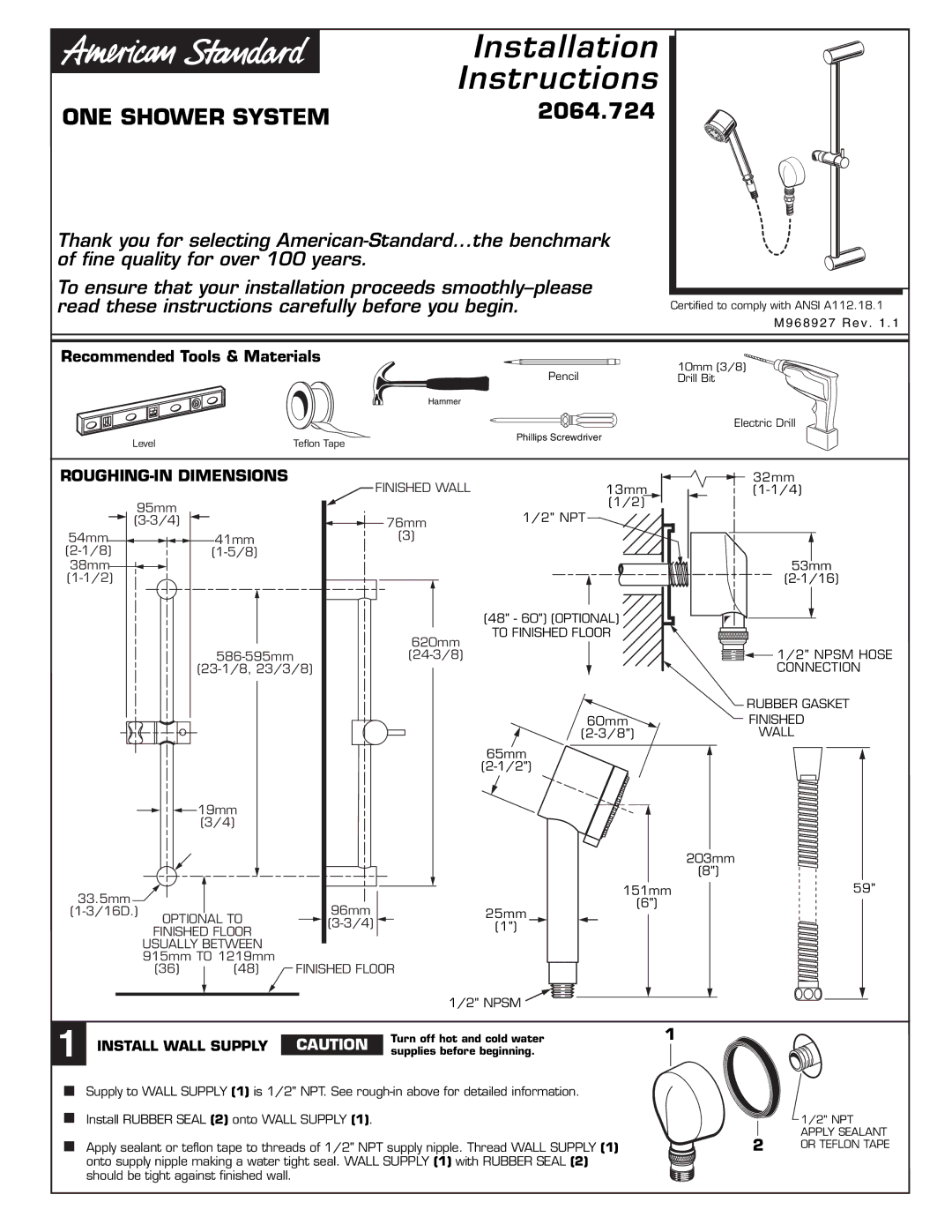

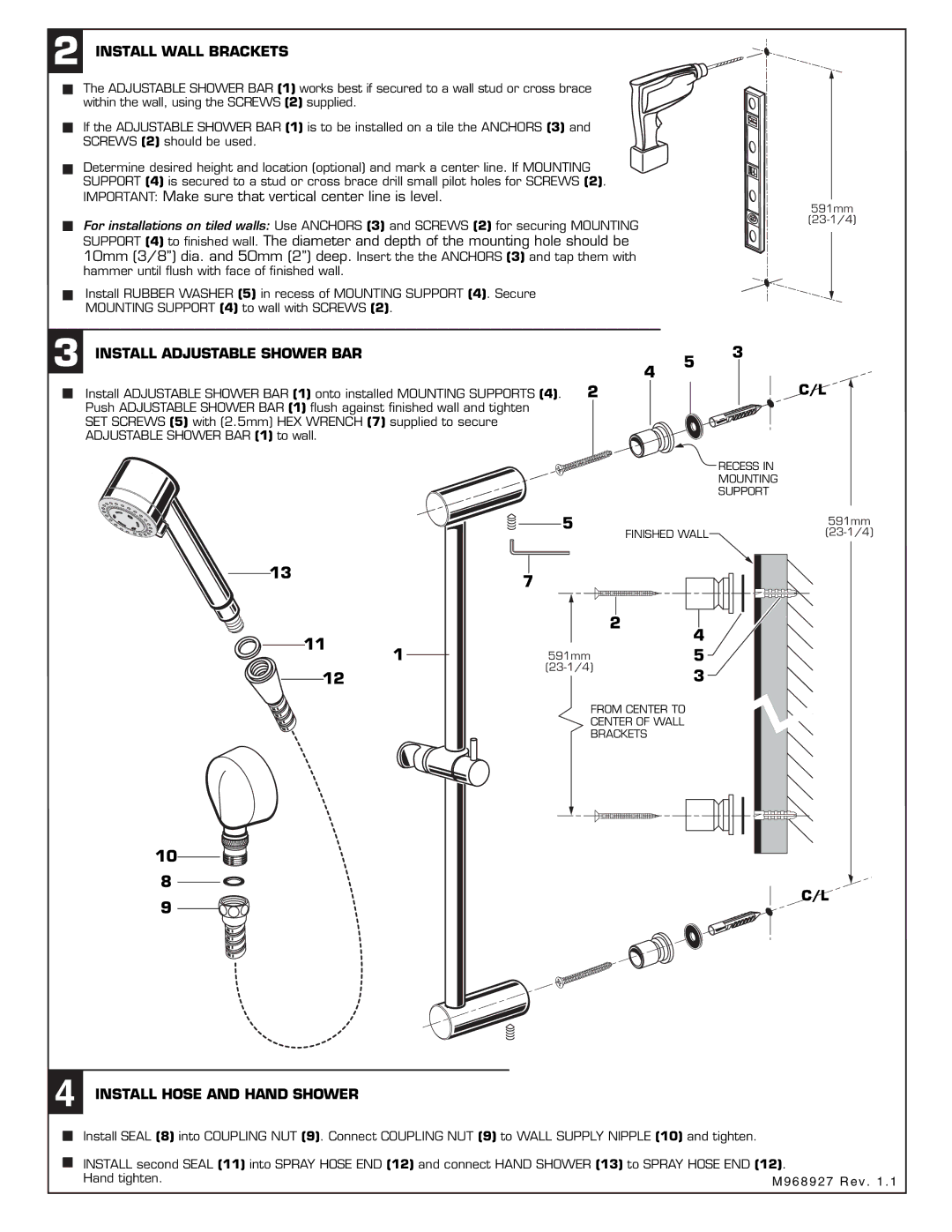

2 INSTALL WALL BRACKETS
The ADJUSTABLE SHOWER BAR (1) works best if secured to a wall stud or cross brace within the wall, using the SCREWS (2) supplied.
If the ADJUSTABLE SHOWER BAR (1) is to be installed on a tile the ANCHORS (3) and SCREWS (2) should be used.
Determine desired height and location (optional) and mark a center line. If MOUNTING SUPPORT (4) is secured to a stud or cross brace drill small pilot holes for SCREWS (2).
IMPORTANT: Make sure that vertical center line is level.
For installations on tiled walls: Use ANCHORS (3) and SCREWS (2) for securing MOUNTING SUPPORT (4) to finished wall. The diameter and depth of the mounting hole should be 10mm (3/8”) dia. and 50mm (2”) deep. Insert the the ANCHORS (3) and tap them with hammer until flush with face of finished wall.
Install RUBBER WASHER (5) in recess of MOUNTING SUPPORT (4). Secure MOUNTING SUPPORT (4) to wall with SCREWS (2).
591mm
3 INSTALL ADJUSTABLE SHOWER BAR |
|
|
| 4 | 5 | 3 | |
|
|
|
|
|
|
| |
Install ADJUSTABLE SHOWER BAR (1) onto installed MOUNTING SUPPORTS (4). 2 |
|
|
| ||||
Push ADJUSTABLE SHOWER BAR (1) flush against finished wall and tighten |
|
|
|
|
| ||
SET SCREWS (5) with (2.5mm) HEX WRENCH (7) supplied to secure |
|
|
|
|
|
| |
ADJUSTABLE SHOWER BAR (1) to wall. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| RECESS IN |
|
|
|
|
|
|
| MOUNTING |
|
|
|
|
|
|
| SUPPORT |
|
|
| 5 | FINISHED WALL |
| ||
|
|
|
|
| |||
13 |
| 7 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
| 2 |
| 4 |
|
11 |
|
|
|
|
|
| |
1 |
| 591mm |
|
| 5 |
| |
|
|
|
|
| |||
12 |
|
|
| 3 |
| ||
|
|
|
|
|
| ||
|
|
|
| FROM CENTER TO |
|
| |
|
|
|
| CENTER OF WALL |
|
| |
|
|
|
| BRACKETS |
|
|
|
10
8
9
C/L
591mm
C/L
4 INSTALL HOSE AND HAND SHOWER
Install SEAL (8) into COUPLING NUT (9). Connect COUPLING NUT (9) to WALL SUPPLY NIPPLE (10) and tighten.
INSTALL second SEAL (11) into SPRAY HOSE END (12) and connect HAND SHOWER (13) to SPRAY HOSE END (12). Hand tighten.
