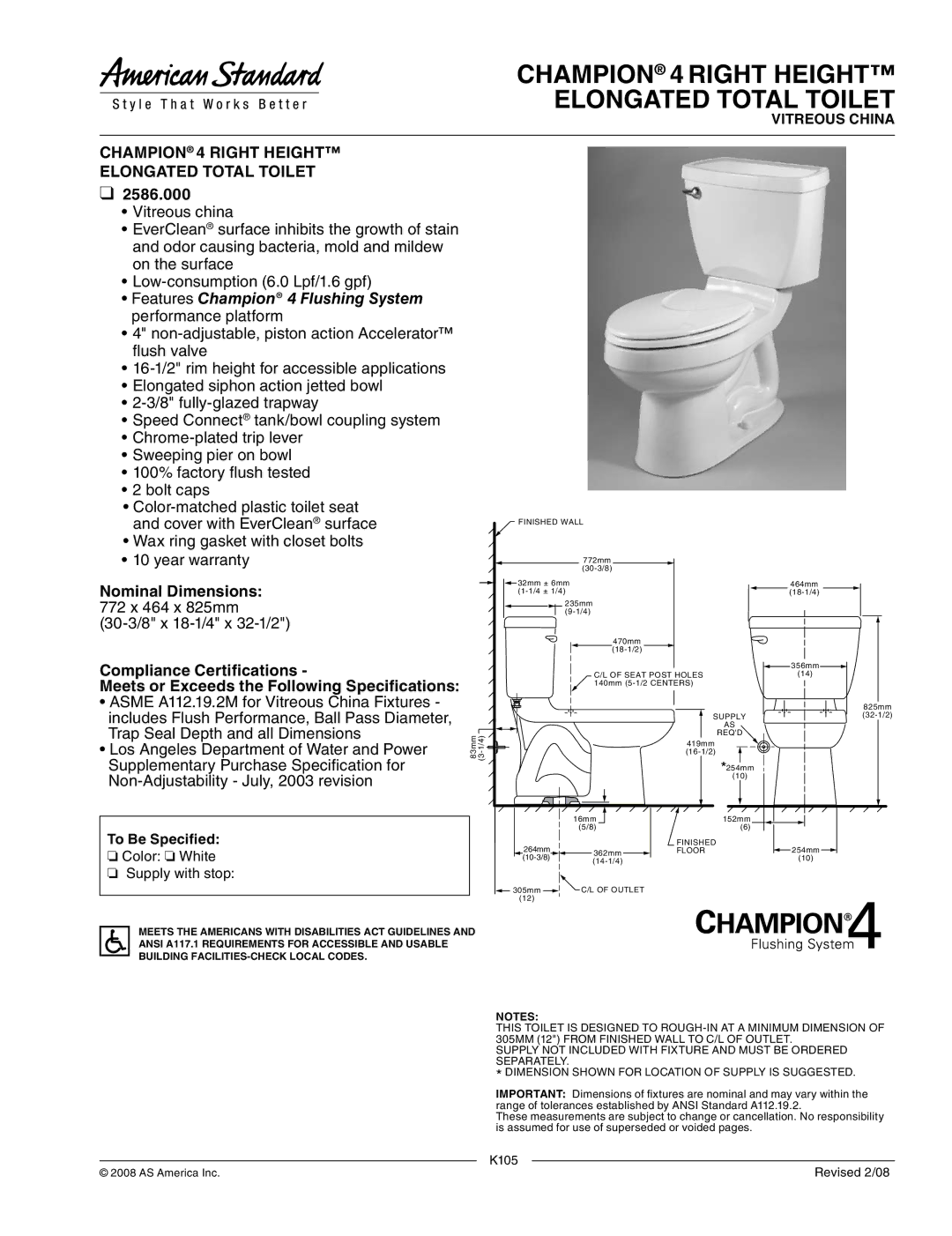

American Standard 2586.000 dimensions CHAMPION 4 RIGHT HEIGHT ELONGATED TOTAL TOILET

CHAMPION® 4 RIGHT HEIGHT™

ELONGATED TOTAL TOILET

❑2586.000

•Vitreous china

•EverClean® surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface

•Low-consumption (6.0 Lpf/1.6 gpf)

•Features Champion® 4 Flushing System performance platform

•4" non-adjustable, piston action Accelerator™ flush valve

•16-1/2" rim height for accessible applications

•Elongated siphon action jetted bowl

•2-3/8" fully-glazed trapway

•Speed Connect® tank/bowl coupling system

•Chrome-plated trip lever

•Sweeping pier on bowl

•100% factory flush tested

•2 bolt caps

•Color-matched plastic toilet seat and cover with EverClean® surface

•Wax ring gasket with closet bolts

•10 year warranty

Nominal Dimensions:

772 x 464 x 825mm

(30-3/8" x 18-1/4" x 32-1/2")

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•ASME A112.19.2M for Vitreous China Fixtures - includes Flush Performance, Ball Pass Diameter, Trap Seal Depth and all Dimensions

•Los Angeles Department of Water and Power Supplementary Purchase Specification for Non-Adjustability - July, 2003 revision

To Be Specified:

❏Color: ❏ White

❏Supply with stop:

CHAMPION® 4 RIGHT HEIGHT™ ELONGATED TOTAL TOILET

VITREOUS CHINA

FINISHED WALL
	772mm
	(30-3/8)
32mm ± 6mm				464mm
(1-1/4 ± 1/4)				(18-1/4)
	235mm
	(9-1/4)
	470mm
	(18-1/2)
				356mm
	C/L OF SEAT POST HOLES			(14)
	140mm (5-1/2 CENTERS)
				825mm
		SUPPLY		(32-1/2)
			AS
83mm 1/4)-(3			REQ'D
		419mm
		(16-1/2)
			*254mm(10)
	16mm		152mm
	(5/8)		(6)
264mm		FINISHED		254mm
	362mm	FLOOR
(10-3/8)				(10)
	(14-1/4)
305mm	C/L OF OUTLET
(12)

MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND

ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE

BUILDING FACILITIES-CHECK LOCAL CODES.

	NOTES:
	THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
	305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
	SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
	SEPARATELY.
	* DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
	IMPORTANT: Dimensions of fixtures are nominal and may vary within the
	range of tolerances established by ANSI Standard A112.19.2.
	These measurements are subject to change or cancellation. No responsibility
	is assumed for use of superseded or voided pages.
	K105
© 2008 AS America Inc.		Revised 2/08
