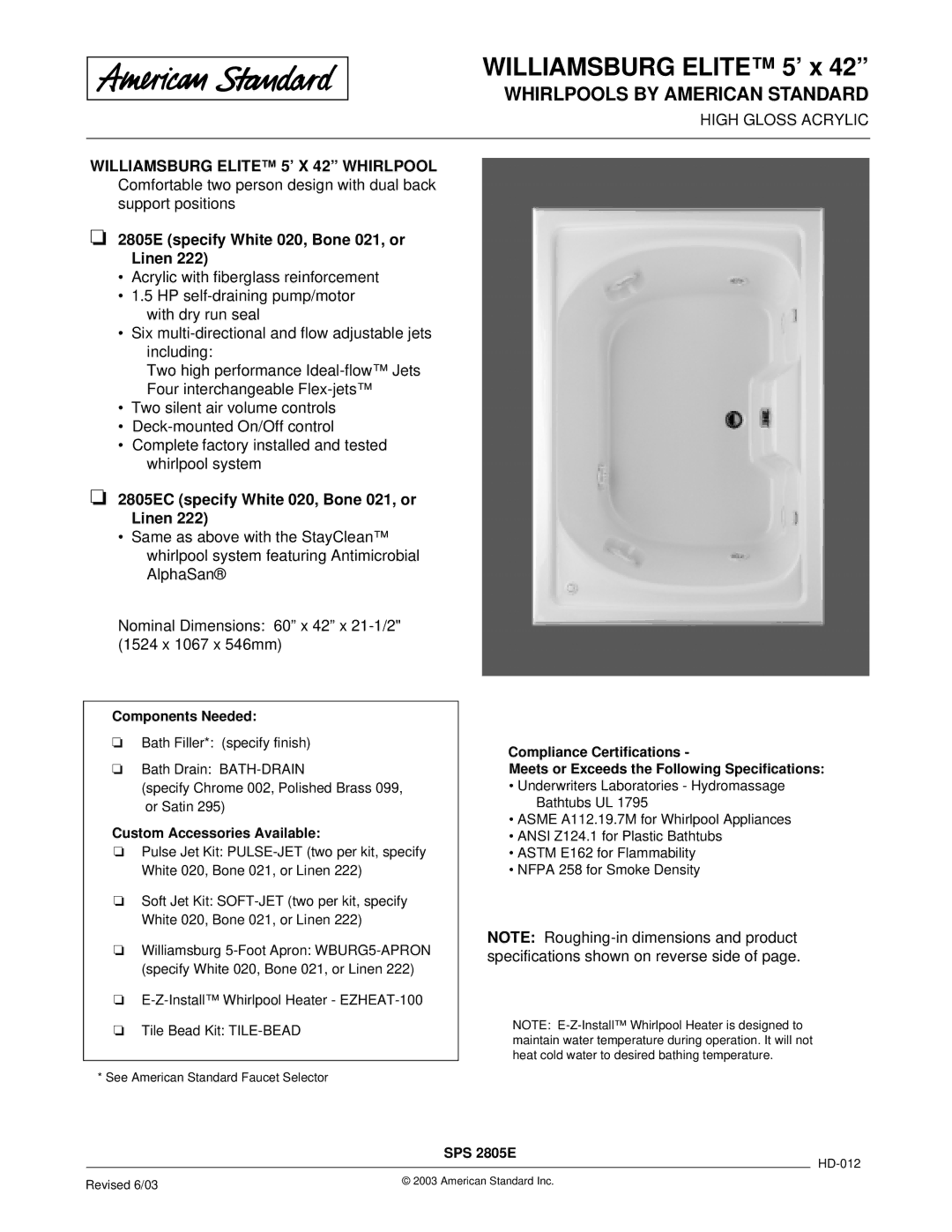

WILLIAMSBURG ELITE™ 5’ x 42”

WHIRLPOOLS BY AMERICAN STANDARD

HIGH GLOSS ACRYLIC

WILLIAMSBURG ELITE™ 5’ X 42” WHIRLPOOL Comfortable two person design with dual back support positions

❏2805E (specify White 020, Bone 021, or Linen 222)

•Acrylic with fiberglass reinforcement

•1.5 HP self-draining pump/motor

with dry run seal

•Six multi-directional and flow adjustable jets including:

Two high performance Ideal-flow™ Jets Four interchangeable Flex-jets™

•Two silent air volume controls

•Deck-mounted On/Off control

•Complete factory installed and tested whirlpool system

❏2805EC (specify White 020, Bone 021, or Linen 222)

•Same as above with the StayClean™ whirlpool system featuring Antimicrobial AlphaSan®

Nominal Dimensions: 60” x 42” x 21-1/2" (1524 x 1067 x 546mm)

Components Needed:

❏Bath Filler*: (specify finish)

❏Bath Drain: BATH-DRAIN

(specify Chrome 002, Polished Brass 099, or Satin 295)

Custom Accessories Available:

❏Pulse Jet Kit: PULSE-JET (two per kit, specify White 020, Bone 021, or Linen 222)

❏Soft Jet Kit: SOFT-JET (two per kit, specify White 020, Bone 021, or Linen 222)

❏Williamsburg 5-Foot Apron: WBURG5-APRON (specify White 020, Bone 021, or Linen 222)

❏E-Z-Install™ Whirlpool Heater - EZHEAT-100

❏Tile Bead Kit: TILE-BEAD

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•Underwriters Laboratories - Hydromassage Bathtubs UL 1795

•ASME A112.19.7M for Whirlpool Appliances

•ANSI Z124.1 for Plastic Bathtubs

•ASTM E162 for Flammability

•NFPA 258 for Smoke Density

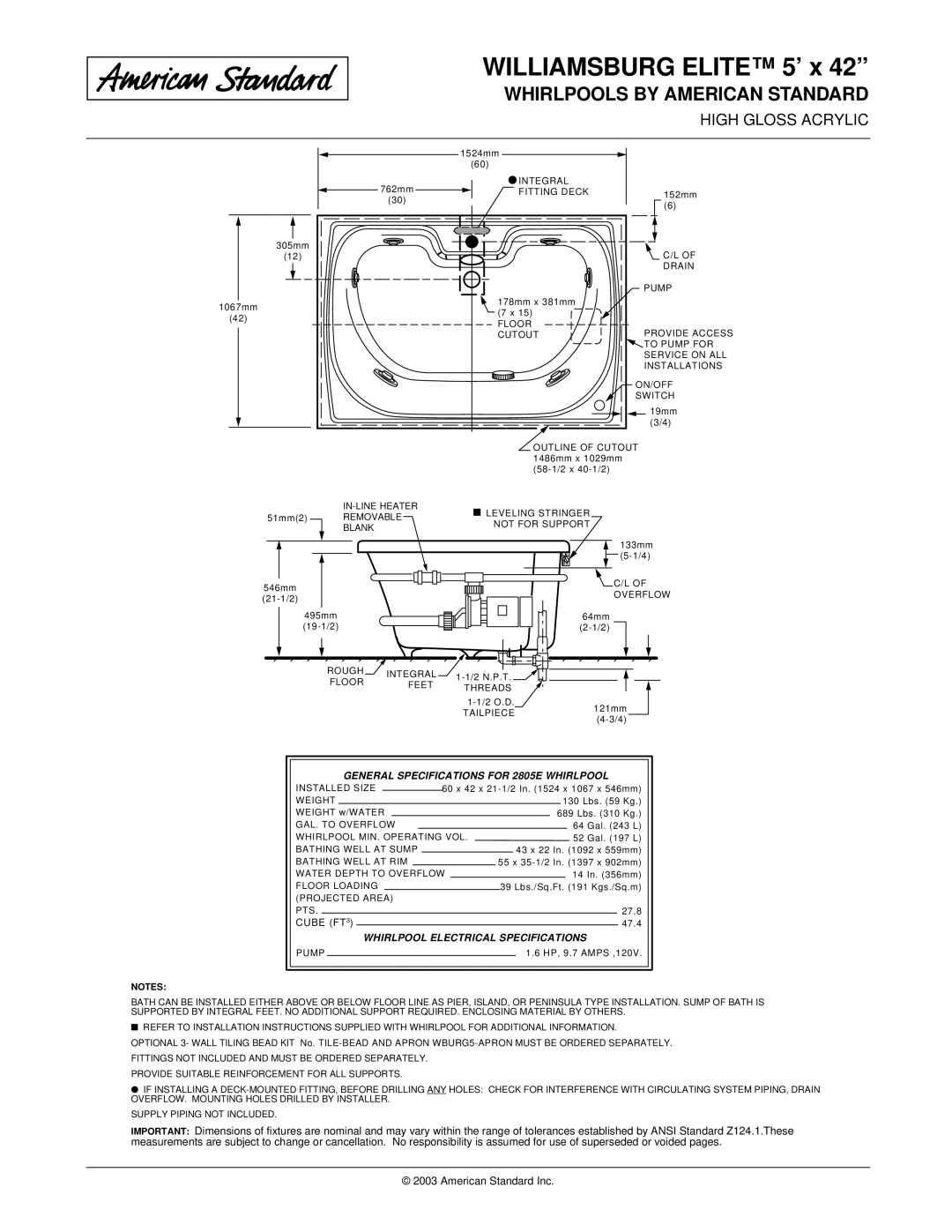

NOTE: Roughing-in dimensions and product specifications shown on reverse side of page.

NOTE: E-Z-Install™ Whirlpool Heater is designed to maintain water temperature during operation. It will not heat cold water to desired bathing temperature.

* See American Standard Faucet Selector

SPS 2805E

HD-012

Revised 6/03 © 2003 American Standard Inc.
