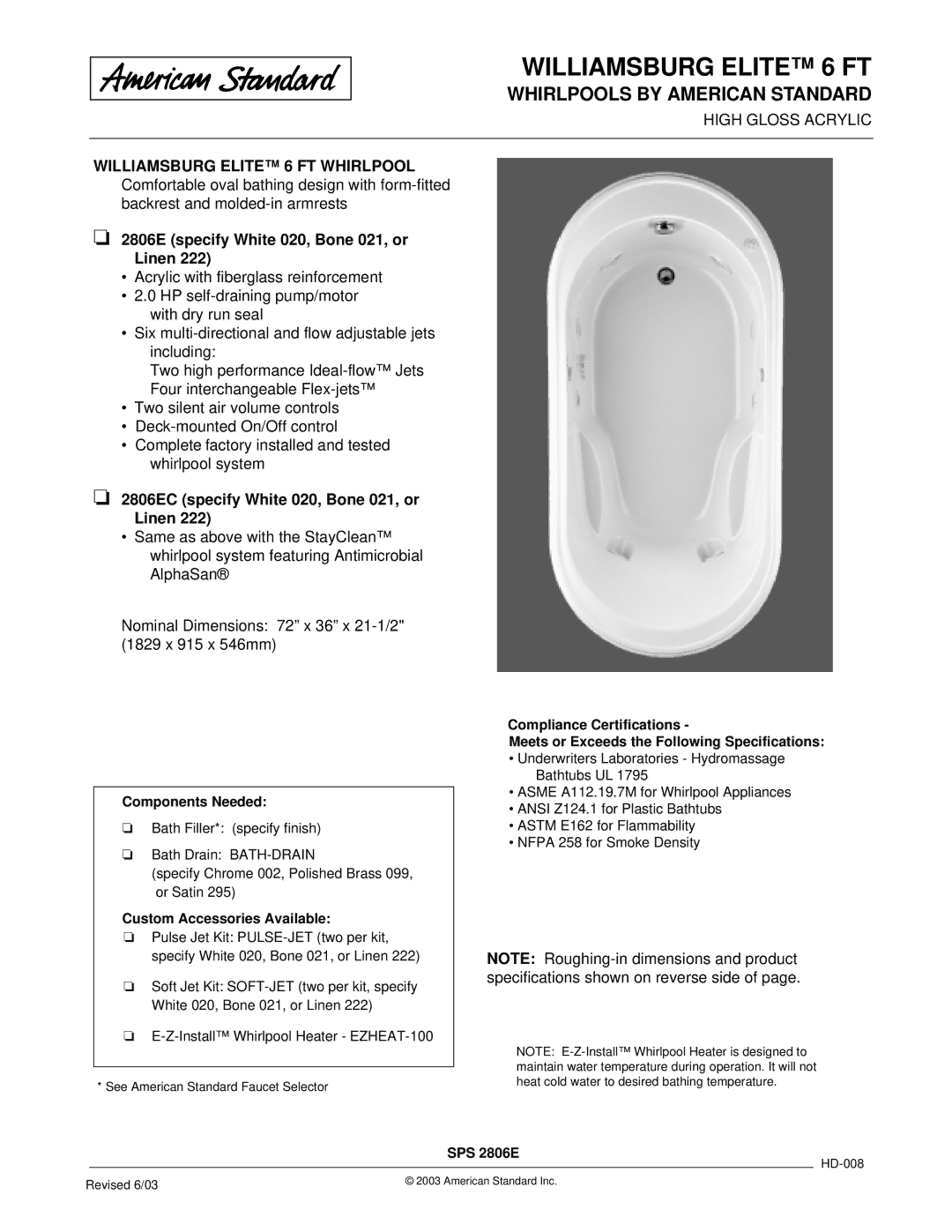

WILLIAMSBURG ELITE™ 6 FT
WHIRLPOOLS BY AMERICAN STANDARD
HIGH GLOSS ACRYLIC
WILLIAMSBURG ELITE™ 6 FT WHIRLPOOL Comfortable oval bathing design with
❏2806E (specify White 020, Bone 021, or Linen 222)
•Acrylic with fiberglass reinforcement
•2.0 HP
with dry run seal
•Six
Two high performance
•Two silent air volume controls
•
•Complete factory installed and tested whirlpool system
❏2806EC (specify White 020, Bone 021, or Linen 222)
•Same as above with the StayClean™ whirlpool system featuring Antimicrobial AlphaSan®
Nominal Dimensions: 72” x 36” x
Components Needed:
❏Bath Filler*: (specify finish)
❏Bath Drain:
(specify Chrome 002, Polished Brass 099, or Satin 295)
Custom Accessories Available:
❏Pulse Jet Kit:
❏Soft Jet Kit:
❏
*See American Standard Faucet Selector
Compliance Certifications -
Meets or Exceeds the Following Specifications:
•Underwriters Laboratories - Hydromassage Bathtubs UL 1795
•ASME A112.19.7M for Whirlpool Appliances
•ANSI Z124.1 for Plastic Bathtubs
•ASTM E162 for Flammability
•NFPA 258 for Smoke Density

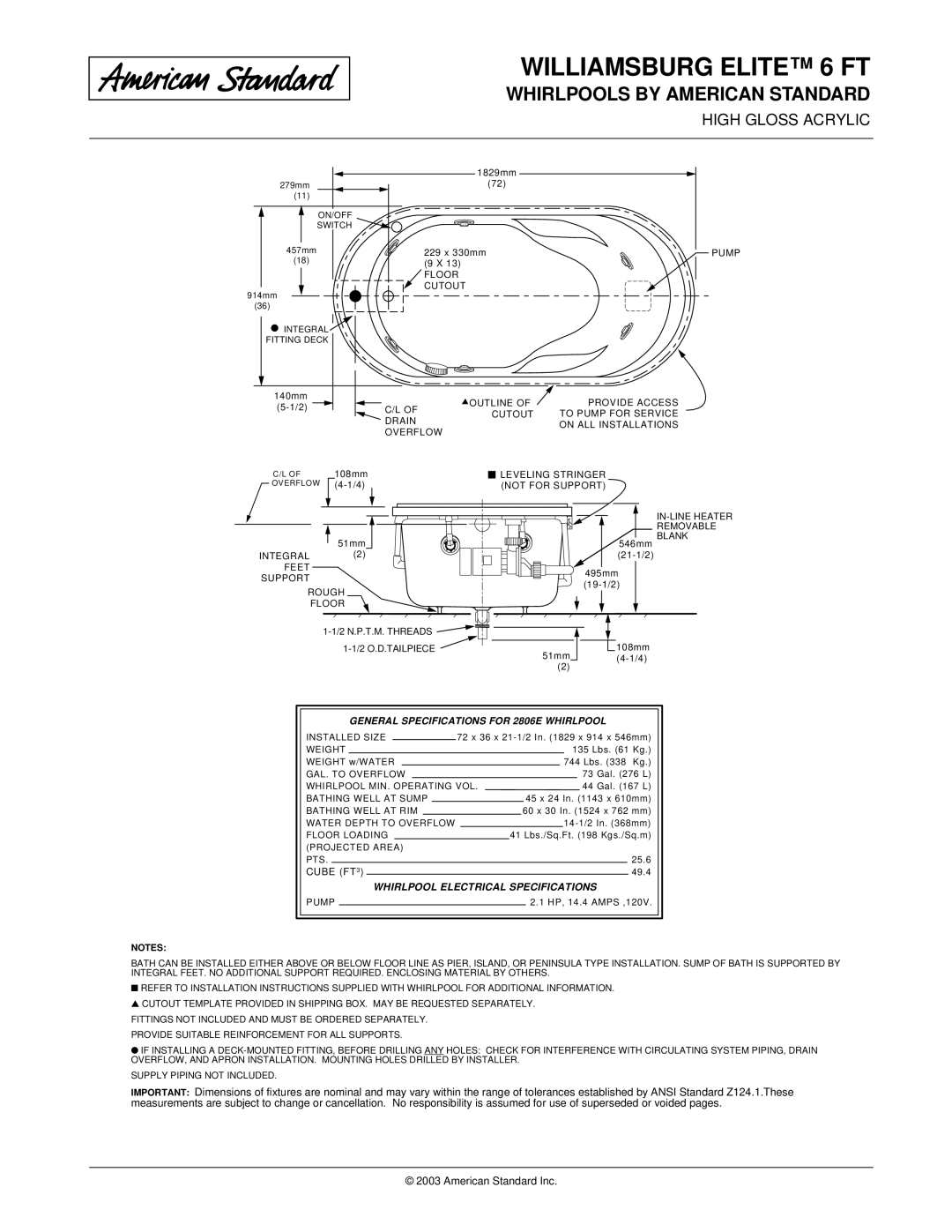

NOTE:
NOTE:
SPS 2806E
Revised 6/03 | © 2003 American Standard Inc. |
