MADERA™ FloWise® 15" HEIGHT 1.28 GPF FLUSHOMETER TOILET

BARRIER FREE

MADERA™ FloWise® 15" HEIGHT

Floor mount flushometer valve toilet

Vitreous china

Meets definition for HET (High Efficiency Toilet)

High Efficiency (4.8 Lpf/1.28 gpf)

EverClean® surface inhibits the growth of stain- and odor-causing bacteria, mold, and mildew on the surface

Fully glazed 2-1/8" trapway

Elongated bowl

10" or 12" roughing-in

15" rim height

Condensation channel

Powerful direct-fed siphon jet action

10" x 12" water surface area

1-1/2" inlet spud

2 bolt caps

100% factory flush tested

3451.128 Elongated bowl only, top spud

3452.128 Elongated bowl only, top spud with slotted rim for bedpan holding (White only)

3453.128 Elongated bowl only, back spud

3455.128 Elongated bowl only, back spud with slotted rim for bedpan holding (White only)

Component Parts:

047007-0070AInlet Spud (furnished with bowl)

481310-100Bolt caps with retainers (furnished with bowl)

Nominal Dimensions:

718 x 356 x 381mm

(28-1/4" x 14" x 15")

Recommended working pressure–between

25 psi at valve when flushing and 80 psi static

Fixture only, less flushometer valve and seat

Compliance Certifications -

Meets or Exceeds the Following Specifications:

ASME A112.19.2 for Vitreous China Fixtures

CAN/CSA International B45

SEE REVERSE FOR ROUGHING-IN DIMENSIONS

To Be Specified:

Color: White Bone Silver Linen Black

Seat:

American Standard #5901.100 Heavy duty open front less cover

American Standard #5905.100 Extra heavy duty open front less cover

Flushometer Valve:

American Standard Selectronic#6065.121.002 DC Power (Top Spud)

American Standard Selectronic#6065.221.007 DC Power (Back Spud)

American Standard Selectronic#6067.221.007 AC Power (Back Spud)

American Standard Selectronic#6068.221.007 Multi AC Power (Back Spud)



M59



© 2008 AS America Inc.

Revised 12/08



Page 1
Image 1

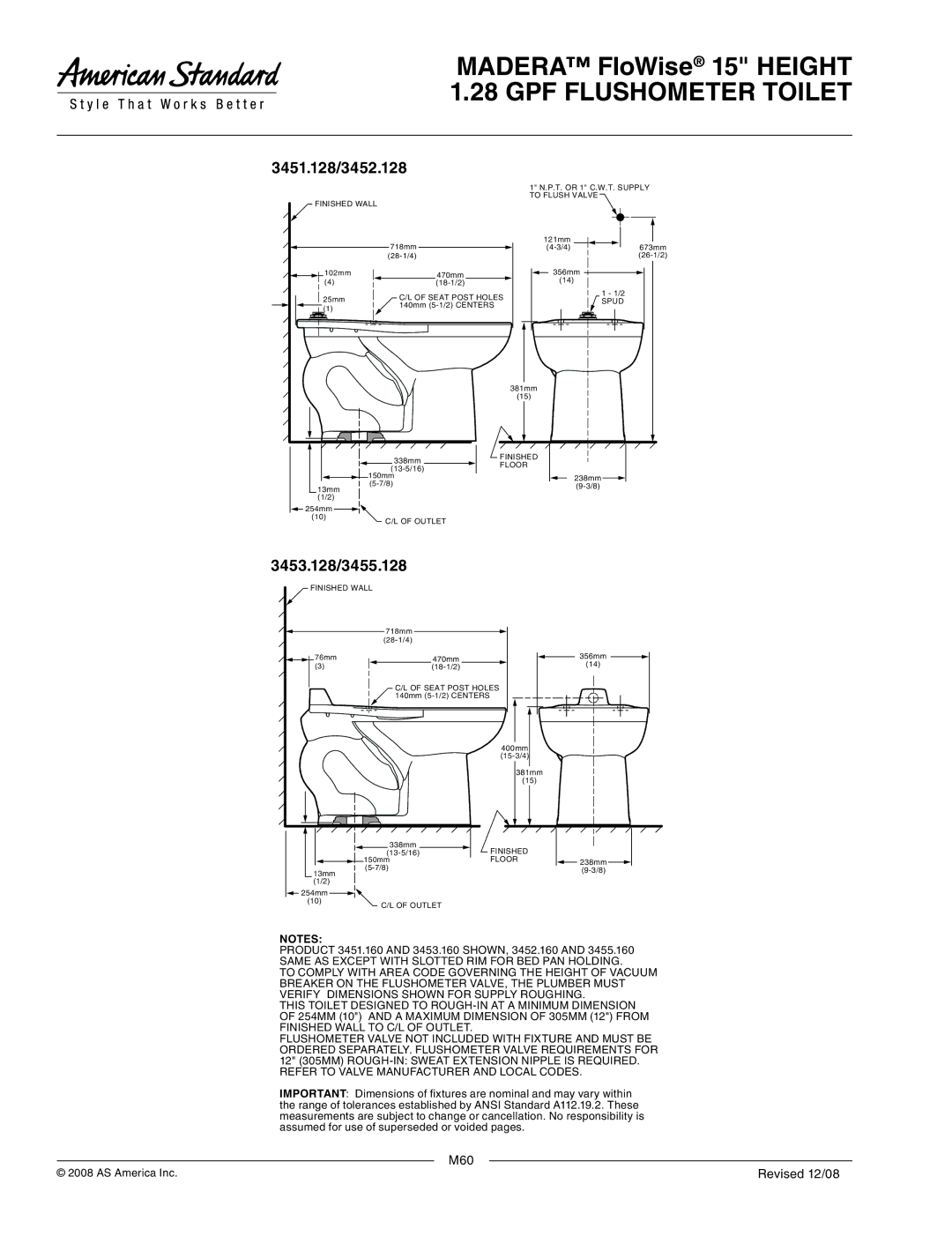

American Standard 3455.128, 3453.128 dimensions Madera FloWise 15 Height 1.28 GPF Flushometer Toilet, Component Parts

3452.128, 3451.128, 3455.128, 3453.128 specifications

The American Standard 3452.128, 3453.128, 3451.128, and 3455.128 toilets represent a commitment to quality, performance, and innovative design in bathroom fixtures. Each model features a sleek, modern design that seamlessly fits into contemporary bathrooms, enhancing both functionality and aesthetic appeal.

One of the main features common across these toilet models is the EverClean surface, a patented technology that helps keep the toilet cleaner for a longer period. This surface minimizes the growth of stain and odor-causing bacteria, mold, and mildew on the toilet bowl, resulting in less frequent cleaning and a more hygienic experience.

All four models utilize a powerful flush system designed to maximize performance while minimizing water usage. The toilets are equipped with a dual-flush mechanism that allows users to choose between a full flush for solid waste and a reduced flush for liquid waste, helping conserve water without compromising performance. This makes them an environmentally friendly choice and helps lower utility bills.

In terms of comfort, these toilets boast an elongated bowl design, which offers more room and support compared to traditional round bowls. This design not only enhances user comfort but also provides a modern look that can elevate the overall style of the bathroom. The height of the toilets is also ADA-compliant, ensuring accessibility for users of all ages and abilities.

Installation is made easy with the included installation instructions and high-quality components. The toilets are designed to fit standard 12-inch rough-in dimensions, making them compatible with most existing plumbing setups. Additionally, their quiet operation reduces noise disturbances, making them suitable for any household setting, from busy family homes to tranquil guest bathrooms.

In summary, the American Standard 3452.128, 3453.128, 3451.128, and 3455.128 toilets offer advanced technologies and features that prioritize cleanliness, comfort, and efficiency. With their stylish design, powerful flush systems, and eco-friendly functionality, these toilets are a smart investment for anyone looking to upgrade their bathroom experience. They combine practicality with modern elegance, making them a top choice for homeowners and designers alike.
