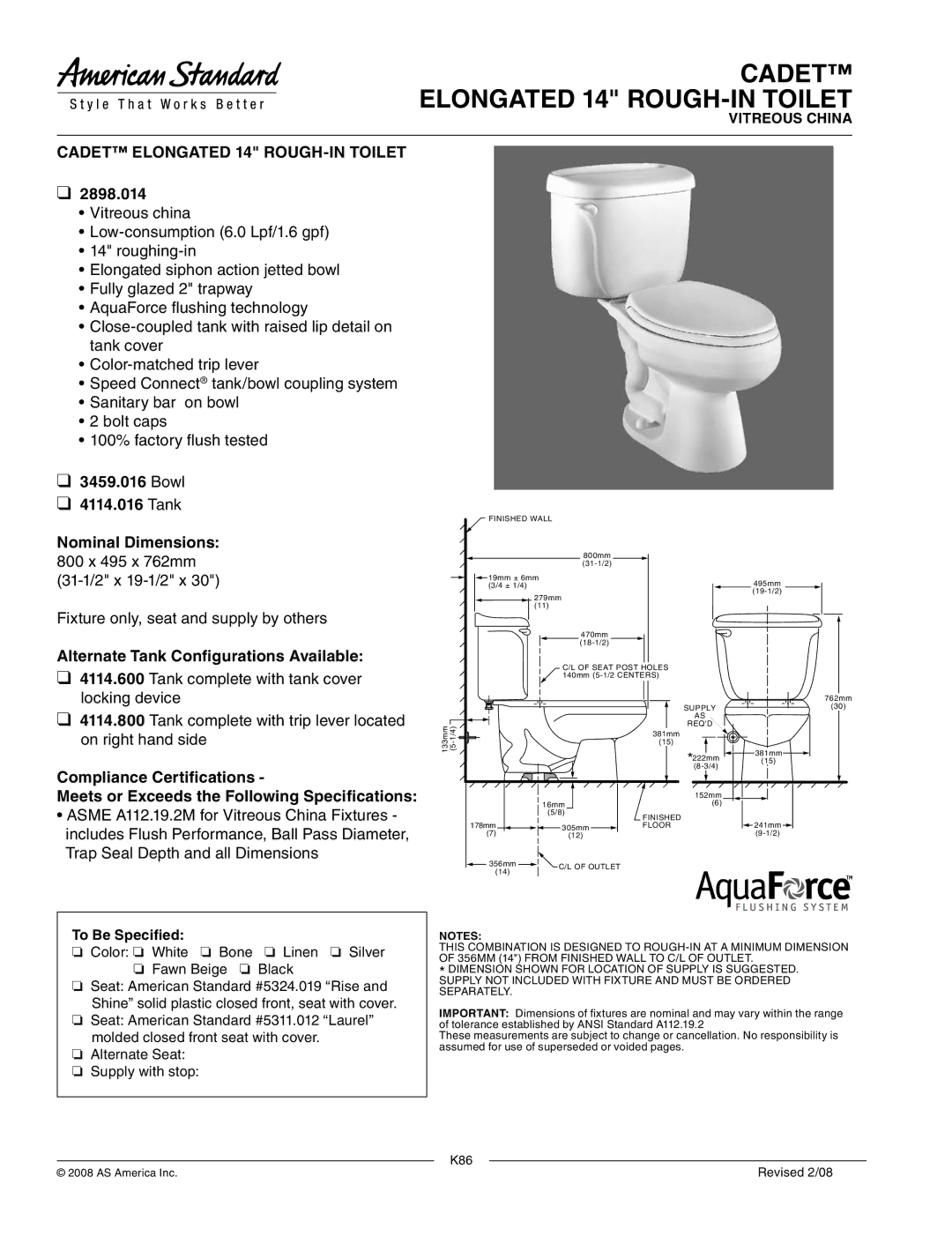

CADET™

ELONGATED 14" ROUGH-IN TOILET

VITREOUS CHINA

CADET™ ELONGATED 14" ROUGH-IN TOILET

❑2898.014

•Vitreous china

•Low-consumption (6.0 Lpf/1.6 gpf)

•14" roughing-in

•Elongated siphon action jetted bowl

•Fully glazed 2" trapway

•AquaForce flushing technology

•Close-coupled tank with raised lip detail on tank cover

•Color-matched trip lever

•Speed Connect® tank/bowl coupling system

•Sanitary bar on bowl

•2 bolt caps

•100% factory flush tested

❑3459.016 Bowl

❑4114.016 Tank

Nominal Dimensions:

800 x 495 x 762mm

(31-1/2" x 19-1/2" x 30")

Fixture only, seat and supply by others

Alternate Tank Configurations Available:

❑4114.600 Tank complete with tank cover locking device

❑4114.800 Tank complete with trip lever located on right hand side

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•ASME A112.19.2M for Vitreous China Fixtures - includes Flush Performance, Ball Pass Diameter, Trap Seal Depth and all Dimensions

To Be Specified:

❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Silver

❏Fawn Beige ❏ Black

❏Seat: American Standard #5324.019 “Rise and Shine” solid plastic closed front, seat with cover.

❏Seat: American Standard #5311.012 “Laurel” molded closed front seat with cover.

❏Alternate Seat:

❏Supply with stop:

© 2008 AS America Inc.

FINISHED WALL
	800mm
	(31-1/2)
19mm ± 6mm			495mm
(3/4 ± 1/4)
	279mm		(19-1/2)
	(11)
	470mm
	(18-1/2)
	C/L OF SEAT POST HOLES
	140mm (5-1/2 CENTERS)
			762mm
		SUPPLY	(30)
		AS
133mm 1/4)-(5		REQ'D
		381mm
		(15)
		*222mm(8-3/4)	381mm
			(15)
		152mm
	16mm	(6)
	(5/8)	FINISHED
178mm	305mm	FLOOR	241mm
(7)			(9-1/2)
	(12)
356mm	C/L OF OUTLET
(14)

NOTES:

THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 356MM (14") FROM FINISHED WALL TO C/L OF OUTLET.

*DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED. SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

K86

Revised 2/08
