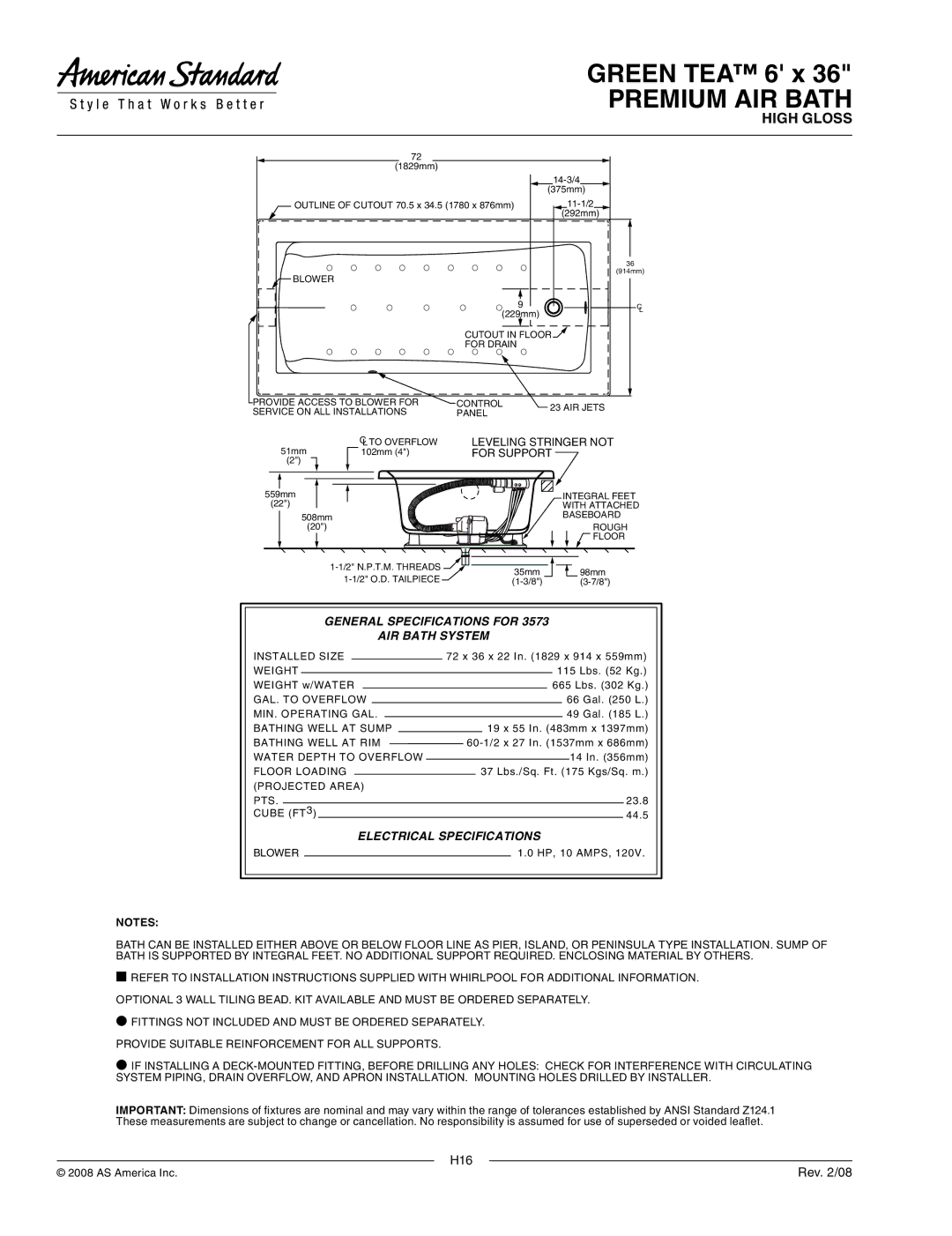

GREEN TEA™ 6' x 36" Premium Air Bath

HIGH GLOSS

72

(1829mm)

14-3/4

(375mm)

OUTLINE OF CUTOUT 70.5 x 34.5 (1780 x 876mm)



11-1/2





(292mm)

BLOWER

9

(229mm)

CUTOUT IN FLOOR

FOR DRAIN

36

(914mm)

C

L

PROVIDE ACCESS TO BLOWER FOR

CONTROL

23 AIR JETS

SERVICE ON ALL INSTALLATIONS

PANEL





C

LEVELING STRINGER NOT

51mm

L TO OVERFLOW

102mm (4")

FOR SUPPORT

(2")







559mm





INTEGRAL FEET

(22")





WITH ATTACHED

508mm



BASEBOARD



(20")



ROUGH







FLOOR



1-1/2" N.P.T.M. THREADS

35mm

98mm



1-1/2" O.D. TAILPIECE



(1-3/8")

(3-7/8")

GENERAL SPECIFICATIONS FOR 3573

AIR BATH SYSTEM

INSTALLED SIZE

















72 x 36 x 22 In. (1829 x 914 x 559mm)

WEIGHT





























115 Lbs. (52 Kg.)





























WEIGHT w/WATER























665 Lbs. (302 Kg.)

GAL. TO OVERFLOW

























66 Gal. (250 L.)























MIN. OPERATING GAL.

















49 Gal. (185 L.)

















BATHING WELL AT SUMP









19 x 55 In. (483mm x 1397mm)

BATHING WELL AT RIM









60-1/2 x 27 In. (1537mm x 686mm)









WATER DEPTH TO OVERFLOW



















14 In. (356mm)



















FLOOR LOADING











37 Lbs./Sq. Ft. (175 Kgs/Sq. m.)











(PROJECTED AREA)























PTS.













23.8

CUBE (FT3)









44.5











ELECTRICAL SPECIFICATIONS

BLOWER

1.0 HP, 10 AMPS, 120V.

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUMP OF BATH IS SUPPORTED BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. ENCLOSING MATERIAL BY OTHERS.

REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION. OPTIONAL 3 WALL TILING BEAD. KIT AVAILABLE AND MUST BE ORDERED SEPARATELY.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY. PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IF INSTALLING A DECK-MOUNTED FITTING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING SYSTEM PIPING, DRAIN OVERFLOW, AND APRON INSTALLATION. MOUNTING HOLES DRILLED BY INSTALLER.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1 These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaflet.



H16



© 2008 AS America Inc.

Rev. 2/08



Page 2
Image 2

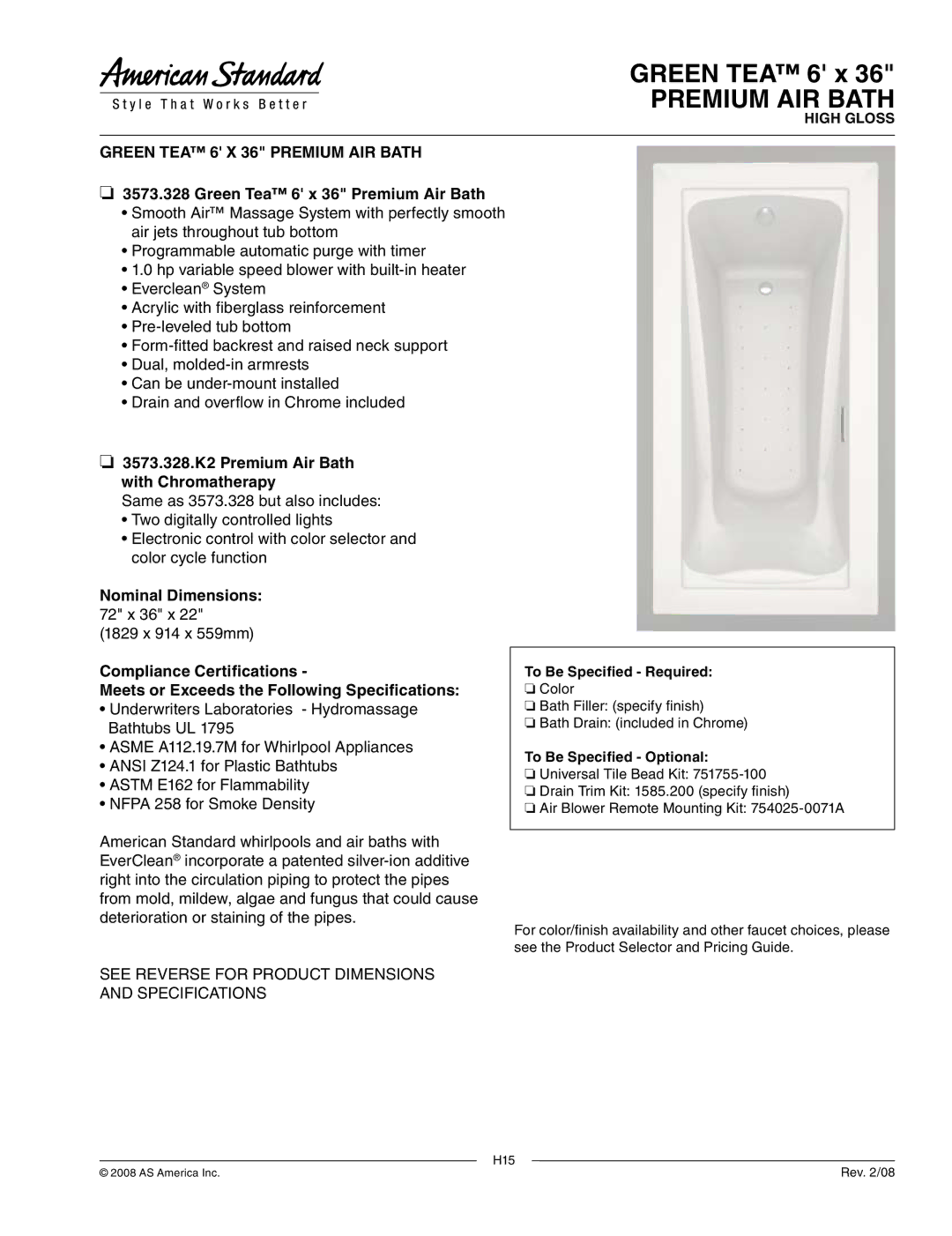

American Standard 3573.328.K2 dimensions Green TEA 6 x 36 Premium Air Bath, General Specifications for AIR Bath System

3573.328.K2, 3573.328 specifications
