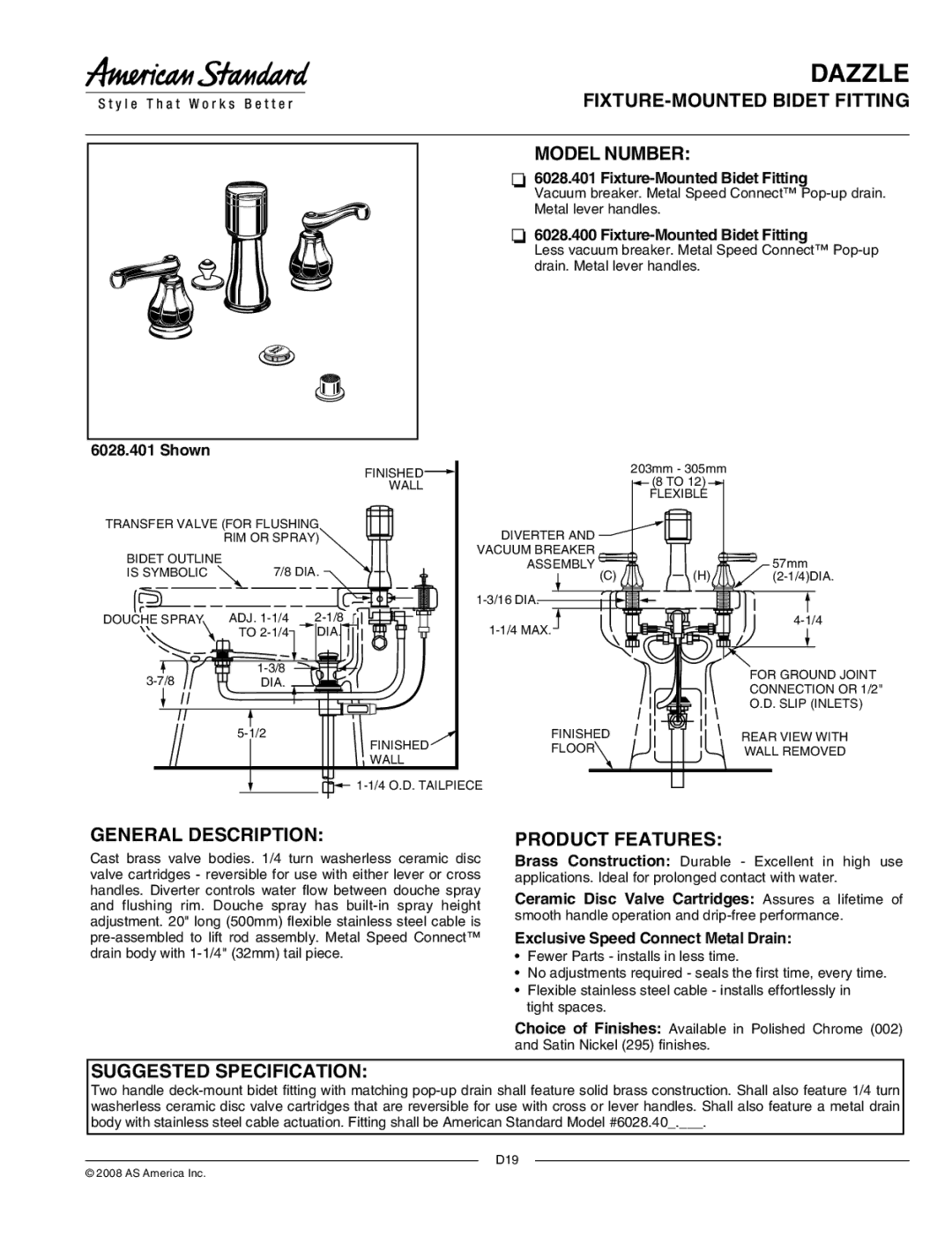

DAZZLE

FIXTURE-MOUNTED BIDET FITTING

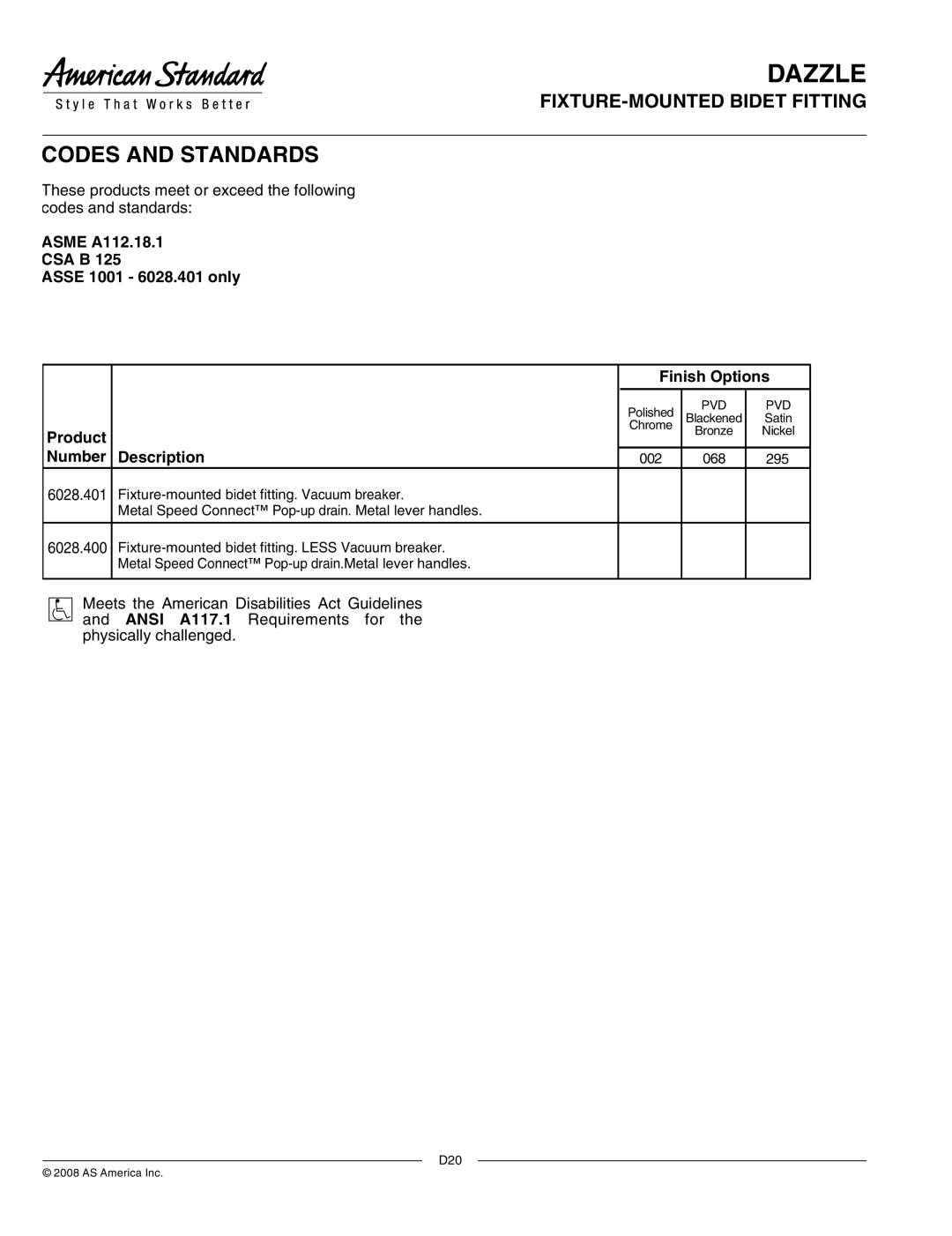

MODEL NUMBER:

6028.401 Fixture-Mounted Bidet Fitting

Vacuum breaker. Metal Speed Connect™ Pop-up drain.

Metal lever handles.

6028.400 Fixture-Mounted Bidet Fitting

Less vacuum breaker. Metal Speed Connect™ Pop-up drain. Metal lever handles.

6028.401 Shown

		FINISHED
		WALL
TRANSFER VALVE (FOR FLUSHING
	RIM OR SPRAY)
BIDET OUTLINE	7/8 DIA.
IS SYMBOLIC
DOUCHE SPRAY	ADJ. 1-1/4	2-1/8
	TO 2-1/4	DIA.
3-7/8	1-3/8
	DIA.
	5-1/2	FINISHED
		WALL

	203mm - 305mm
	(8 TO 12)
	FLEXIBLE
DIVERTER AND
VACUUM BREAKER		57mm
ASSEMBLY
(C)	(H)	(2-1/4)DIA.
1-3/16 DIA.
1-1/4 MAX.		4-1/4
		FOR GROUND JOINT
		CONNECTION OR 1/2"
		O.D. SLIP (INLETS)
FINISHED		REAR VIEW WITH
FLOOR		WALL REMOVED

1-1/4 O.D. TAILPIECE

GENERAL DESCRIPTION:

Cast brass valve bodies. 1/4 turn washerless ceramic disc valve cartridges - reversible for use with either lever or cross handles. Diverter controls water flow between douche spray and flushing rim. Douche spray has built-in spray height adjustment. 20" long (500mm) flexible stainless steel cable is pre-assembled to lift rod assembly. Metal Speed Connect™ drain body with 1-1/4" (32mm) tail piece.

PRODUCT FEATURES:

Brass Construction: Durable - Excellent in high use applications. Ideal for prolonged contact with water.

Ceramic Disc Valve Cartridges: Assures a lifetime of smooth handle operation and drip-free performance.

Exclusive Speed Connect Metal Drain:

•Fewer Parts - installs in less time.

•No adjustments required - seals the first time, every time.

•Flexible stainless steel cable - installs effortlessly in tight spaces.

Choice of Finishes: Available in Polished Chrome (002) and Satin Nickel (295) finishes.

SUGGESTED SPECIFICATION:

Two handle deck-mount bidet fitting with matching pop-up drain shall feature solid brass construction. Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use with cross or lever handles. Shall also feature a metal drain body with stainless steel cable actuation. Fitting shall be American Standard Model #6028.40_.___.

D19

© 2008 AS America Inc.
