JETBROOK™

URINAL

VITREOUS CHINA

BARRIER FREE

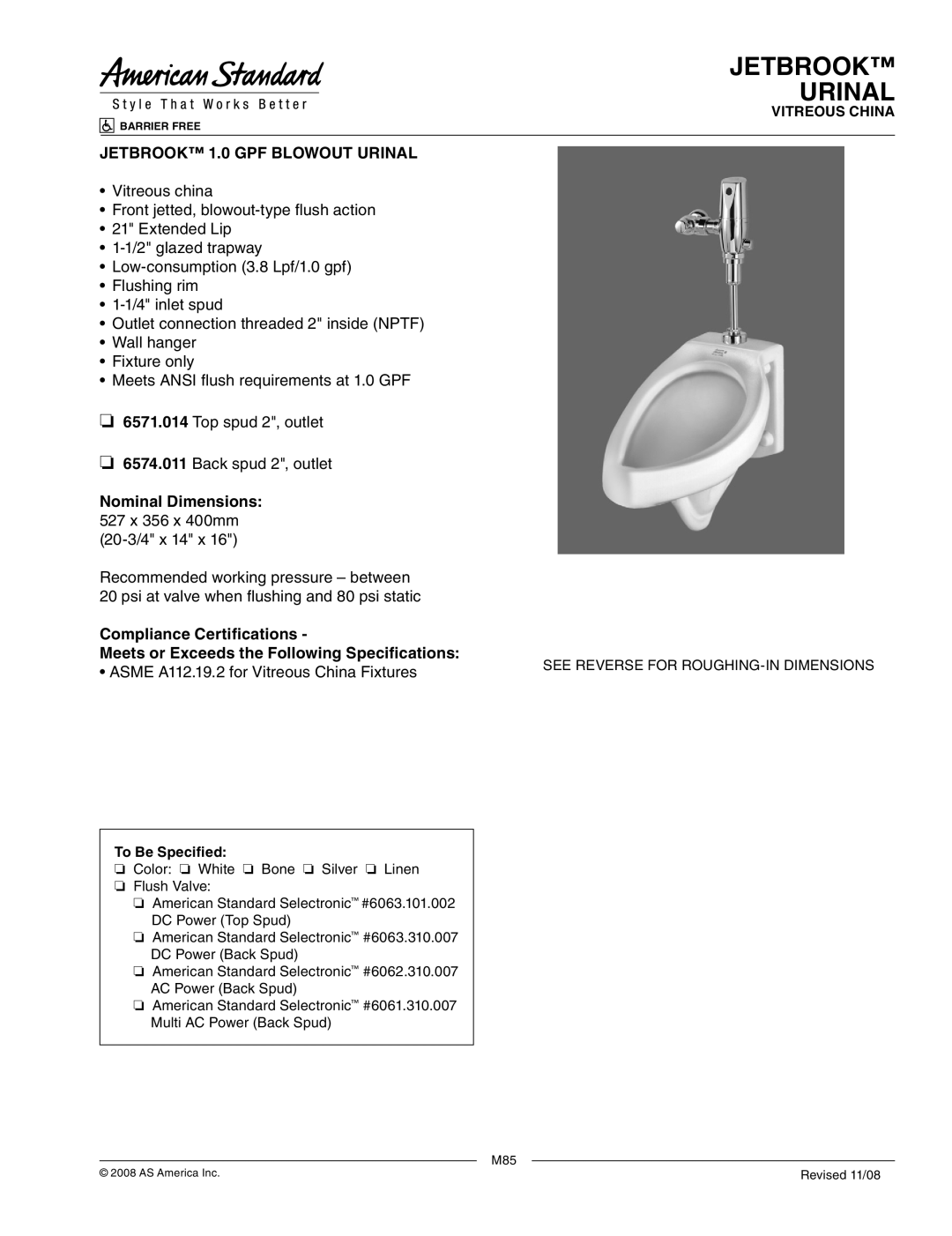

JETBROOK™ 1.0 GPF BLOWOUT URINAL
• Vitreous china
• Front jetted, blowout-type flush action
• 21" Extended Lip
• 1-1/2" glazed trapway
• Low-consumption (3.8 Lpf/1.0 gpf)
• Flushing rim
• 1-1/4" inlet spud
• Outlet connection threaded 2" inside (NPTF)
• Wall hanger
• Fixture only
• Meets ANSI flush requirements at 1.0 GPF
❏ 6571.014 Top spud 2", outlet
❏ 6574.011 Back spud 2", outlet
Nominal Dimensions:
527 x 356 x 400mm
(20-3/4" x 14" x 16")
Recommended working pressure – between
20 psi at valve when flushing and 80 psi static
Compliance Certifications -

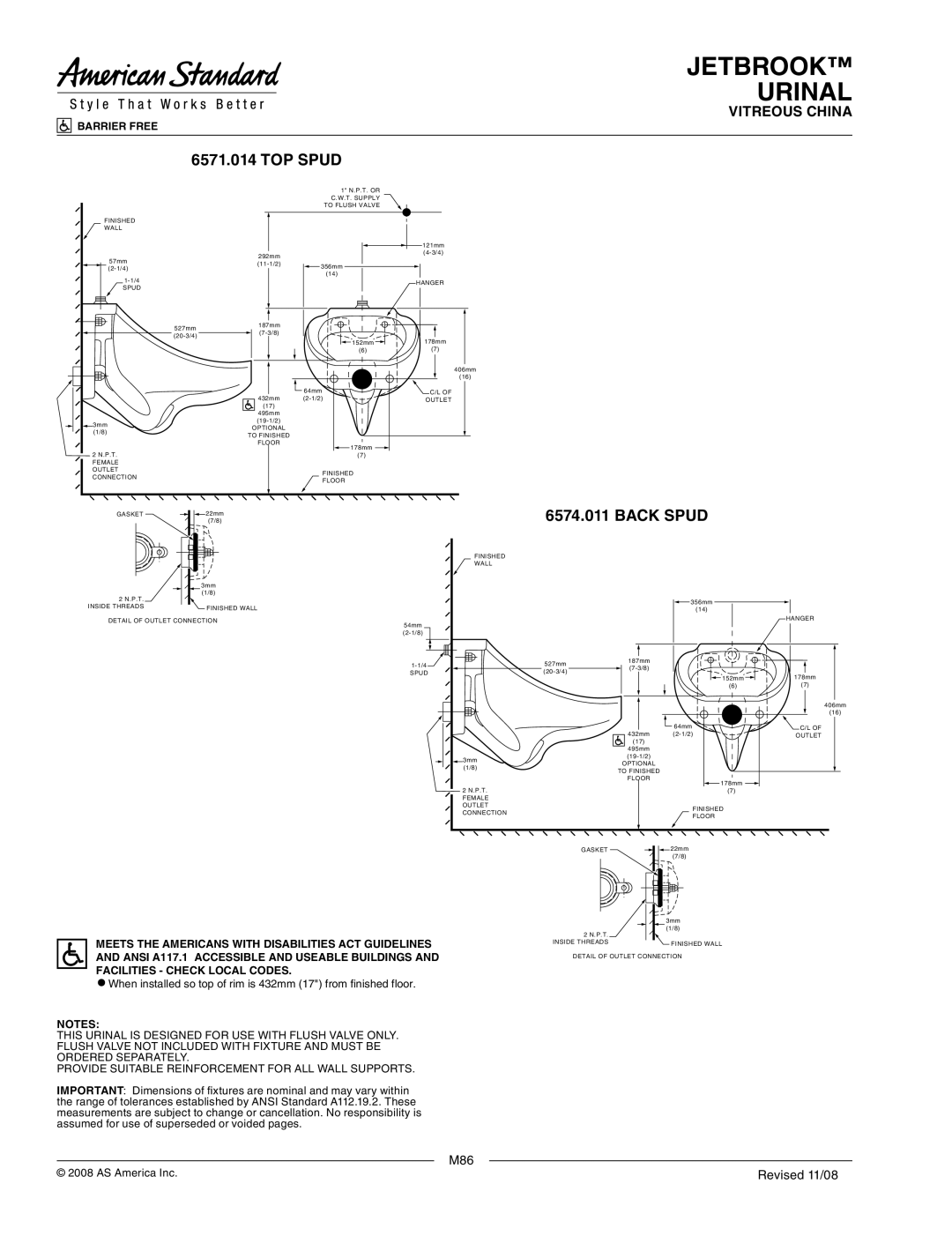

Meets or Exceeds the Following Specifications:	SEE REVERSE FOR ROUGHING-IN DIMENSIONS
• ASME A112.19.2 for Vitreous China Fixtures

To Be Specified:

❏Color: ❏ White ❏ Bone ❏ Silver ❏ Linen

❏Flush Valve:

❏American Standard Selectronic™ #6063.101.002 DC Power (Top Spud)

❏American Standard Selectronic™ #6063.310.007 DC Power (Back Spud)

❏American Standard Selectronic™ #6062.310.007 AC Power (Back Spud)

❏American Standard Selectronic™ #6061.310.007 Multi AC Power (Back Spud)

	M85
