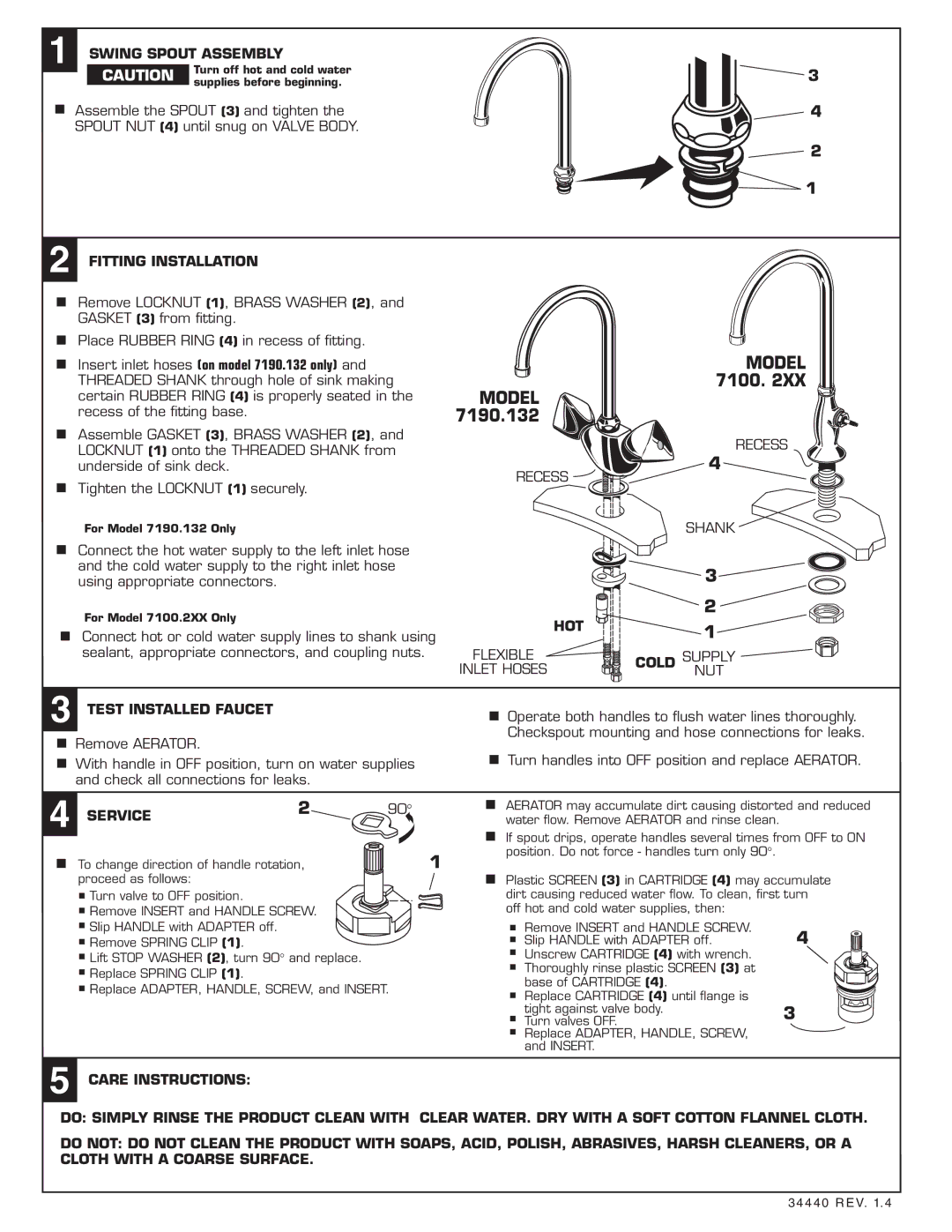

Installation Instructions

7100.2XX

SINGLE-HOLE BAR/PANTRY FAUCET WITH SWING SPOUT

7190.132

Thank you for selecting American-Standard...

the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly-- please read these instructions carefully before you begin.

Certified to comply with ANSI A112.18.1M

U.S. Patent No. 5,819,789

34440 REV. 1. 4

066108-YYY0A

AERATOR

012087-0070A

SPOUT SEAL KIT

A911758-0070A

RUBBER RING

M961714-0070A

MOUNTING KIT

Replace the "YYY" with appropriate finish code

CHROME

002

POL. BRASS

099

SATIN NICKEL

295

SATIN/BRASS

297

CHROME/POL. BRASS

299

MODEL 7190.132

MODEL 7100.2XX

012088-YYY0A









012088-YYY0A





SWING SPOUT KIT









SWING SPOUT KIT













028611-0070A

066108-YYY0A



HANDLE SCREW

AERATOR





012087-0070A





SPOUT SEAL KIT







030741-0070A





CARTRIDGE SEAL

A908424-YYY0A



KIT





HANDLE





028610-0070A





CARTRIDGE



028611-0070A









HANDLE SCREW



012671-0070





RUBBER RING

028610-0070A





CARTRIDGE

012094-0070A

MOUNTING KIT

024220-0070A





















SUPPLY NUT



Replace the "YYY" with





















appropriate finish code













HOT LINE FOR HELP











CHROME

002

For toll-free information and answers to your questions, call:







WHITE

020

Weekdays 8:00 a.m. to 6:00 p.m. EST





1-800-442-1902











IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)





BONE

021

Weekdays 8:00 a.m. to 7:00 p.m. EST









IN MEXICO 01-800-839-1200





POL. BRASS

099
