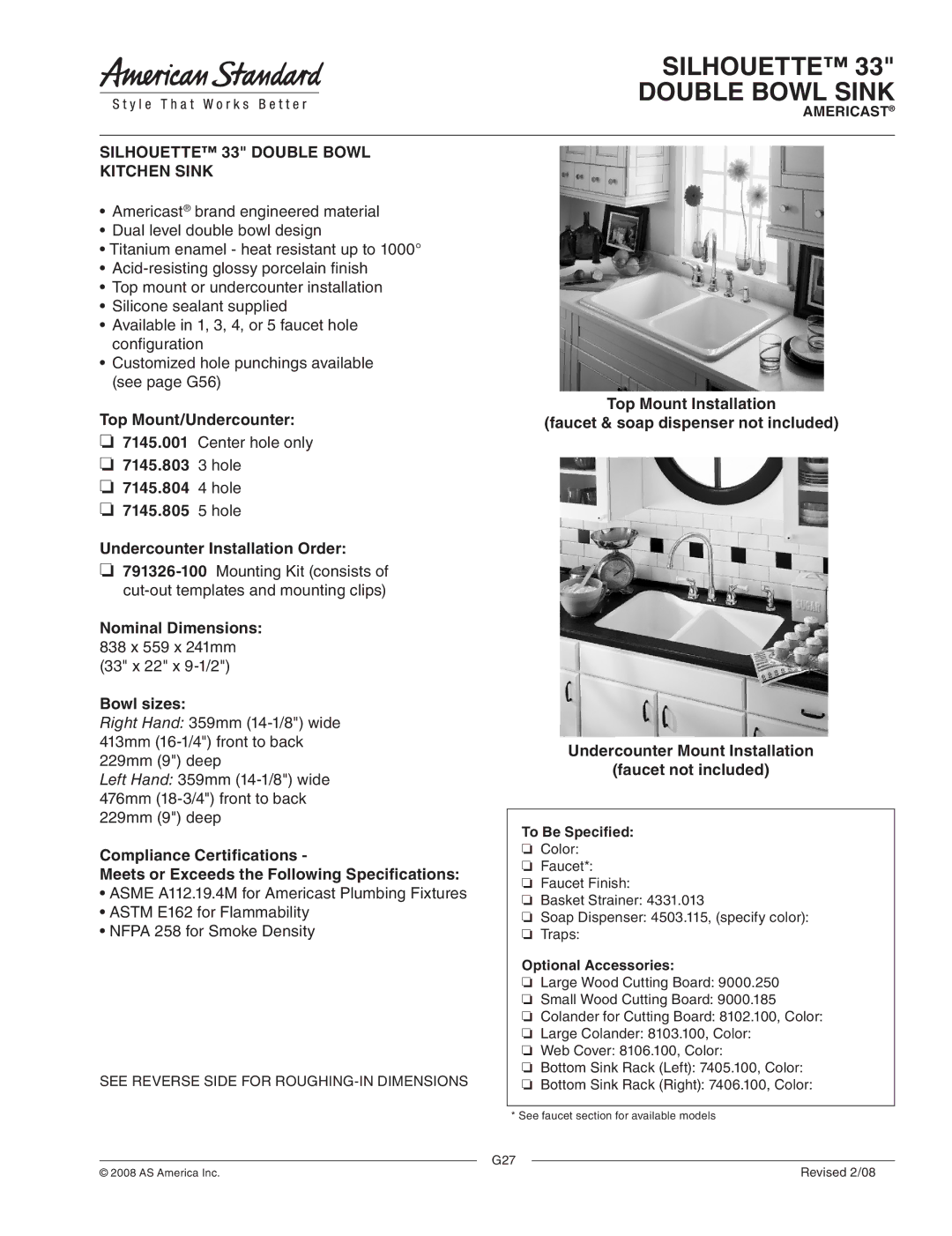

American Standard 7145.804 dimensions Silhouette Double Bowl Sink, Top Mount/Undercounter

SILHOUETTE™ 33"

DOUBLE BOWL SINK

AMERICAST®

SILHOUETTE™ 33" DOUBLE BOWL

KITCHEN SINK

•Americast® brand engineered material

•Dual level double bowl design

•Titanium enamel - heat resistant up to 1000°

•Acid-resisting glossy porcelain finish

•Top mount or undercounter installation

•Silicone sealant supplied

•Available in 1, 3, 4, or 5 faucet hole configuration

•Customized hole punchings available (see page G56)

Top Mount/Undercounter:

❏7145.001 Center hole only

❏7145.803 3 hole

❏7145.804 4 hole

❏7145.805 5 hole

Undercounter Installation Order:

❏791326-100Mounting Kit (consists of cut-out templates and mounting clips)

Nominal Dimensions: 838 x 559 x 241mm (33" x 22" x 9-1/2")

Bowl sizes:

Right Hand: 359mm (14-1/8") wide 413mm (16-1/4") front to back 229mm (9") deep

Left Hand: 359mm (14-1/8") wide 476mm (18-3/4") front to back 229mm (9") deep

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•ASME A112.19.4M for Americast Plumbing Fixtures

•ASTM E162 for Flammability

•NFPA 258 for Smoke Density

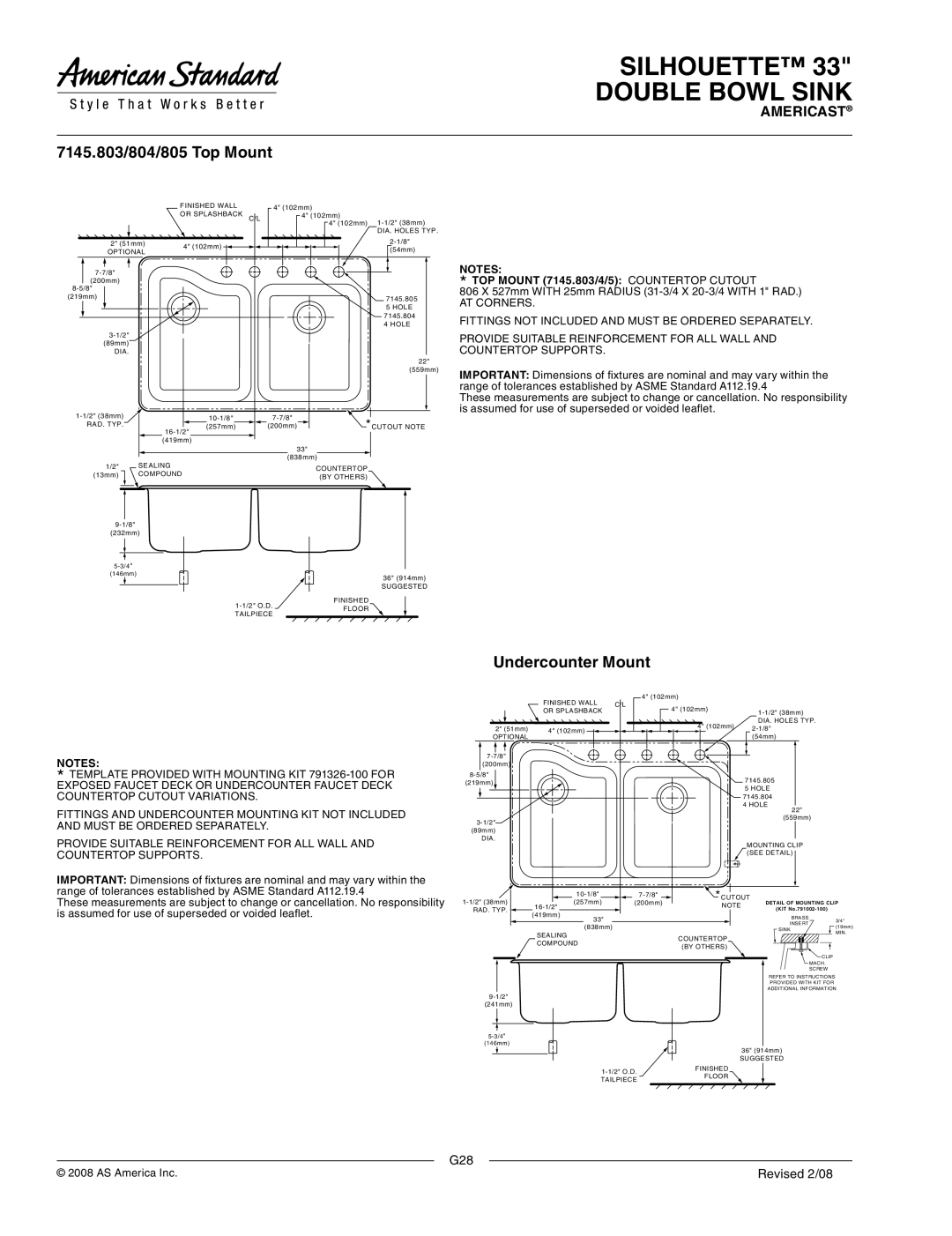

SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS

© 2008 AS America Inc.

Top Mount Installation

(faucet & soap dispenser not included)

Undercounter Mount Installation

(faucet not included)

To Be Specified:

❏Color:

❏Faucet*:

❏Faucet Finish:

❏Basket Strainer: 4331.013

❏Soap Dispenser: 4503.115, (specify color):

❏Traps:

Optional Accessories:

❏Large Wood Cutting Board: 9000.250

❏Small Wood Cutting Board: 9000.185

❏Colander for Cutting Board: 8102.100, Color:

❏Large Colander: 8103.100, Color:

❏Web Cover: 8106.100, Color:

❏Bottom Sink Rack (Left): 7405.100, Color:

❏Bottom Sink Rack (Right): 7406.100, Color:

* See faucet section for available models
