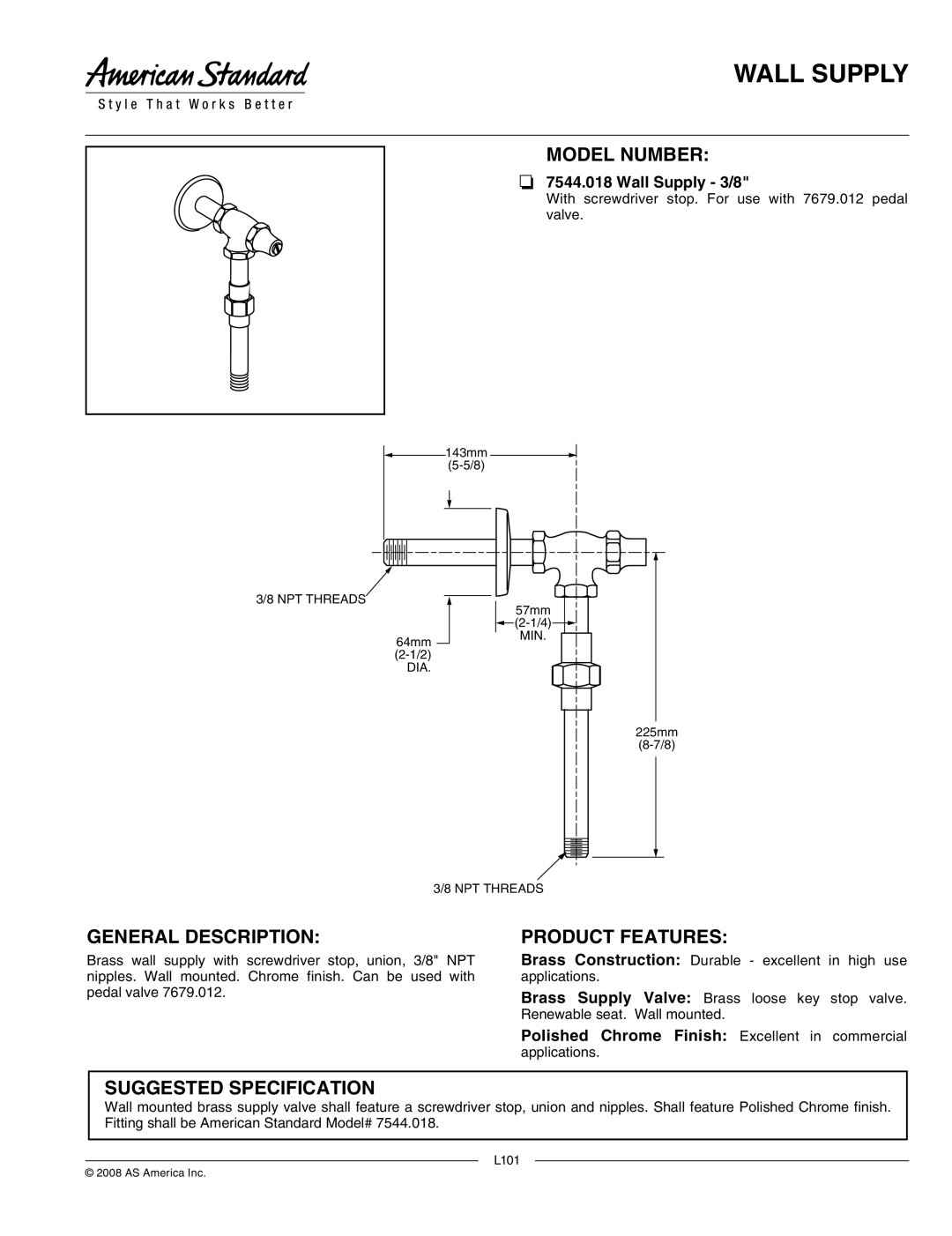

WALL SUPPLY

MODEL NUMBER:

7544.018 Wall Supply - 3/8"

With screwdriver stop. For use with 7679.012 pedal valve.

143mm

(5-5/8)

3/8 NPT THREADS

57mm





(2-1/4)

64mm

MIN.



(2-1/2)



DIA.



225mm

(8-7/8)



3/8 NPT THREADS

GENERAL DESCRIPTION:

PRODUCT FEATURES:

Brass wall supply with screwdriver stop, union, 3/8" NPT nipples. Wall mounted. Chrome finish. Can be used with pedal valve 7679.012.

Brass Construction: Durable - excellent in high use applications.

Brass Supply Valve: Brass loose key stop valve. Renewable seat. Wall mounted.

Polished Chrome Finish: Excellent in commercial applications.

SUGGESTED SPECIFICATION

Wall mounted brass supply valve shall feature a screwdriver stop, union and nipples. Shall feature Polished Chrome finish. Fitting shall be American Standard Model# 7544.018.

L101

© 2008 AS America Inc.

Page 1
Image 1
