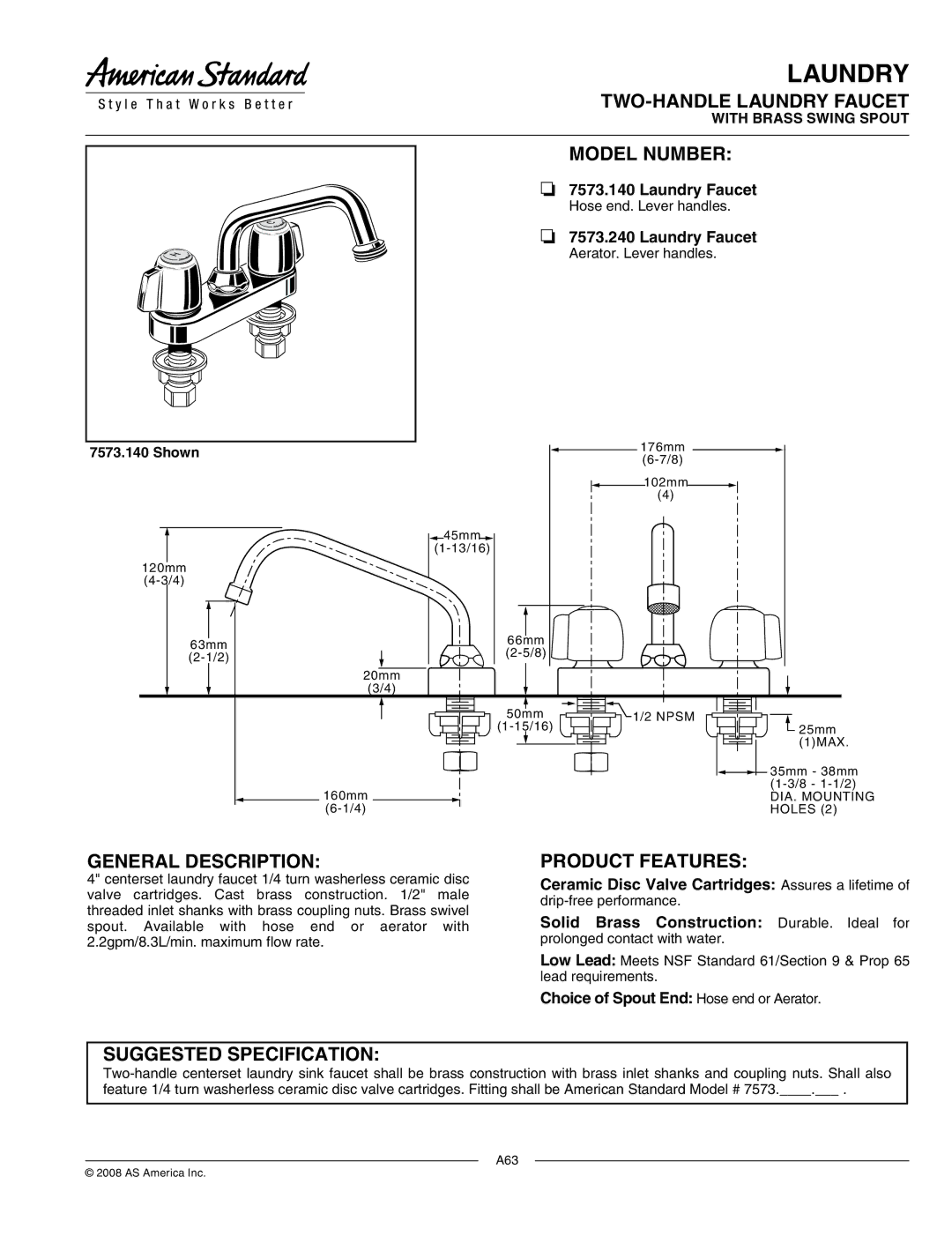

LAUNDRY

TWO-HANDLE LAUNDRY FAUCET

WITH BRASS SWING SPOUT

MODEL NUMBER:

7573.140 Laundry Faucet

Hose end. Lever handles.

7573.240 Laundry Faucet

Aerator. Lever handles.

7573.140 Shown





176mm

(6-7/8)



102mm

(4)

45mm (1-13/16)

120mm (4-3/4)

63mm

66mm



(2-5/8)



(2-1/2)









20mm





(3/4)





50mm

1/2 NPSM



(1-15/16)

25mm





(1)MAX.





35mm - 38mm



160mm

(1-3/8 - 1-1/2)



DIA. MOUNTING



(6-1/4)

HOLES (2)

GENERAL DESCRIPTION:

4" centerset laundry faucet 1/4 turn washerless ceramic disc valve cartridges. Cast brass construction. 1/2" male threaded inlet shanks with brass coupling nuts. Brass swivel spout. Available with hose end or aerator with 2.2gpm/8.3L/min. maximum flow rate.

PRODUCT FEATURES:

Ceramic Disc Valve Cartridges: Assures a lifetime of drip-free performance.

Solid Brass Construction: Durable. Ideal for prolonged contact with water.

Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead requirements.

Choice of Spout End: Hose end or Aerator.

SUGGESTED SPECIFICATION:

Two-handle centerset laundry sink faucet shall be brass construction with brass inlet shanks and coupling nuts. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 7573.____.___ .

A63

© 2008 AS America Inc.

Page 1
Image 1
American Standard 7573.240, 7573.140 manual TWO-HANDLE Laundry Faucet, Model Number, General Description, Product Features

7573.240, 7573.140 specifications

The American Standard 7573.140 and 7573.240 are two exceptional bathroom faucets designed to blend style with functionality, making them ideal choices for both modern and traditional bathroom settings. These models reflect American Standard's commitment to quality and innovation, offering a range of features that enhance user experience.

One of the standout characteristics of both models is the sleek and sophisticated design. The faucets are available in various finishes, including polished chrome and brushed nickel, allowing homeowners to select a style that best complements their existing decor. The graceful curves and minimalist aesthetics provide a timeless look that can elevate any bathroom space.

In terms of functionality, these faucets are equipped with a single-handle design, which allows for easy temperature and flow control. This user-friendly feature simplifies the process of adjusting water settings, making it convenient for users of all ages. The ergonomic lever provides a comfortable grip and precise control, ensuring a pleasant washing experience.

The American Standard 7573.140 and 7573.240 also incorporate innovative technologies that promote water efficiency without sacrificing performance. Both models are WaterSense certified, meaning they use significantly less water than traditional faucets while delivering the same level of performance. This eco-friendly feature not only conserves water but also helps homeowners save on utility bills, benefiting both the environment and their budget.

Another key characteristic is the faucet's easy installation process. American Standard has designed these models with a straightforward mounting system that allows for quick and hassle-free setup, making them appealing choices for DIY enthusiasts and professional installers alike.

Durability is a hallmark of American Standard products, and these faucets are no exception. Both models are constructed from high-quality materials that resist tarnishing and corrosion, ensuring long-lasting beauty and functionality. Additionally, the ceramic disc cartridge technology used in these faucets provides smooth operation and reduces the likelihood of leaks, enhancing their overall reliability.

In summary, the American Standard 7573.140 and 7573.240 faucets are defined by their elegant design, user-friendly features, water efficiency, and robust durability. These models are perfect for anyone looking to enhance their bathroom's aesthetic while providing practical and eco-friendly solutions for everyday use. With their superior performance and contemporary appeal, these faucets exemplify what homeowners have come to expect from the American Standard brand.
