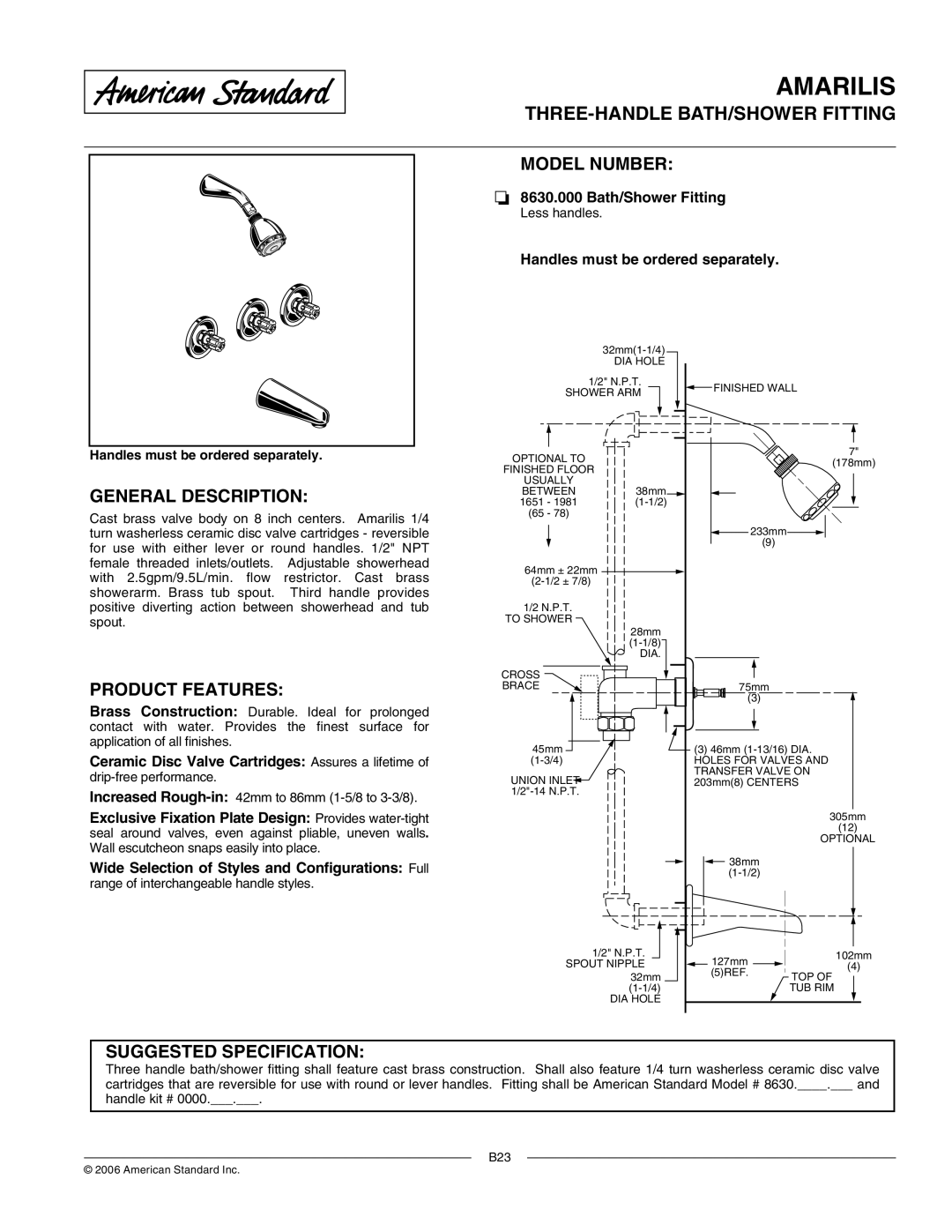

AMARILIS

THREE-HANDLE BATH/SHOWER FITTING

MODEL NUMBER:

8630.000 Bath/Shower Fitting

Less handles.

Handles must be ordered separately.

Handles must be ordered separately.

GENERAL DESCRIPTION:

Cast brass valve body on 8 inch centers. Amarilis 1/4 turn washerless ceramic disc valve cartridges - reversible for use with either lever or round handles. 1/2" NPT female threaded inlets/outlets. Adjustable showerhead with 2.5gpm/9.5L/min. flow restrictor. Cast brass showerarm. Brass tub spout. Third handle provides positive diverting action between showerhead and tub spout.

PRODUCT FEATURES:

Brass Construction: Durable. Ideal for prolonged contact with water. Provides the finest surface for application of all finishes.

Ceramic Disc Valve Cartridges: Assures a lifetime of

drip-free performance.

Increased Rough-in:42mm to 86mm (1-5/8 to 3-3/8).

Exclusive Fixation Plate Design: Provides water-tight seal around valves, even against pliable, uneven walls. Wall escutcheon snaps easily into place.

Wide Selection of Styles and Configurations: Full

range of interchangeable handle styles.



32mm(1-1/4)





DIA HOLE



1/2" N.P.T.

FINISHED WALL

SHOWER ARM



OPTIONAL TO



7"



(178mm)

FINISHED FLOOR







USUALLY

38mm



BETWEEN



1651 - 1981

(1-1/2)



(65 - 78)









233mm





(9)

64mm ± 22mm





(2-1/2 ± 7/8)





1/2 N.P.T.





TO SHOWER







28mm





(1-1/8)





DIA.



CROSS





BRACE



75mm





(3)

45mm



(3) 46mm (1-13/16) DIA.

(1-3/4)



HOLES FOR VALVES AND

UNION INLET



TRANSFER VALVE ON



203mm(8) CENTERS

1/2"-14 N.P.T.









305mm





(12)





OPTIONAL





38mm





(1-1/2)

1/2" N.P.T.













































































127mm



102mm









SPOUT NIPPLE









(4)













32mm









(5)REF.



TOP OF





(1-1/4)













TUB RIM





DIA HOLE





























SUGGESTED SPECIFICATION:

Three handle bath/shower fitting shall feature cast brass construction. Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use with round or lever handles. Fitting shall be American Standard Model # 8630.____.___ and

handle kit # 0000.___.___.

B23

© 2006 American Standard Inc.

Page 1
Image 1
