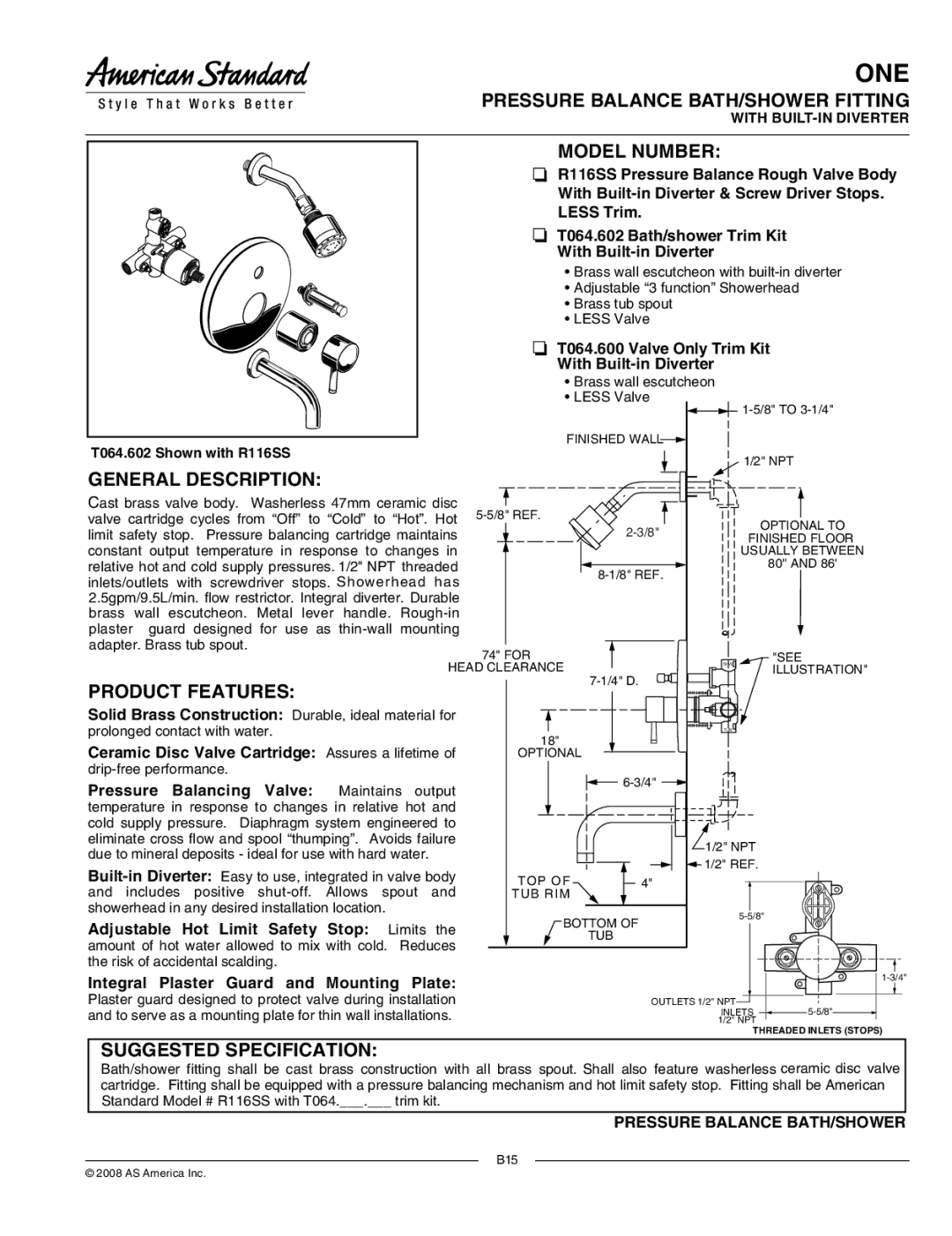

74" FOR
HEAD CLEARANCE

ONE

PRESSURE BALANCE BATH/SHOWER FITTING

WITH BUILT-IN DIVERTER

MODEL NUMBER:

R116SS Pressure Balance Rough Valve Body

With Built-in Diverter & Screw Driver Stops.

LESS Trim.

T064.602 Bath/shower Trim Kit

With Built-in Diverter

Brass wall escutcheon with built-in diverter

Adjustable “3 function” Showerhead

Brass tub spout

LESS Valve

T064.602 Shown with R116SS

GENERAL DESCRIPTION:

Cast brass valve body. Washerless 47mm ceramic disc valve cartridge cycles from “Off” to “Cold” to “Hot”. Hot limit safety stop. Pressure balancing cartridge maintains constant output temperature in response to changes in relative hot and cold supply pressures. 1/2" NPT threaded inlets/outlets with screwdriver stops. Showerhead has 2.5gpm/9.5L/min. flow restrictor. Integral diverter. Durable brass wall escutcheon. Metal lever handle. Rough-in plaster guard designed for use as thin-wall mounting adapter. Brass tub spout.

PRODUCT FEATURES:

Solid Brass Construction: Durable, ideal material for prolonged contact with water.

Ceramic Disc Valve Cartridge: Assures a lifetime of drip-free performance.

Pressure Balancing Valve: Maintains output temperature in response to changes in relative hot and cold supply pressure. Diaphragm system engineered to eliminate cross flow and spool “thumping”. Avoids failure due to mineral deposits - ideal for use with hard water.

Built-in Diverter: Easy to use, integrated in valve body and includes positive shut-off. Allows spout and showerhead in any desired installation location.

Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.

Integral Plaster Guard and Mounting Plate:

Plaster guard designed to protect valve during installation and to serve as a mounting plate for thin wall installations.

T064.600 Valve Only Trim Kit

With Built-in Diverter

Brass wall escutcheon

LESS Valve



1-5/8" TO 3-1/4"

FINISHED WALL





1/2" NPT

5-5/8" REF.

OPTIONAL TO

2-3/8"

FINISHED FLOOR





USUALLY BETWEEN

8-1/8" REF.

80'' AND 86'







SHW

"SEE





ILLUSTRATION"



7-1/4" D.













TUB



18"







OPTIONAL









6-3/4"







1/2" NPT







1/2" REF.



TOP OF



4"



TUB RIM







BOTTOM OF

5-5/8"









TUB











1-3/4"





OUTLETS 1/2" NPT

5-5/8"





INLETS





1/2" NPT







THREADED INLETS (STOPS)

SUGGESTED SPECIFICATION:

Bath/shower fitting shall be cast brass construction with all brass spout. Shall also feature washerless ceramic disc valve cartridge. Fitting shall be equipped with a pressure balancing mechanism and hot limit safety stop. Fitting shall be American Standard Model # R116SS with T064.___.___ trim kit.

PRESSURE BALANCE BATH/SHOWER

B15

© 2008 AS America Inc.

Page 1
Image 1
American Standard T064.602, T064.600, R116SS manual Pressure Balance BATH/SHOWER Fitting, Model Number, General Description

R116SS, T064.602, T064.600 specifications

American Standard is known for its commitment to quality, innovation, and style in bathroom and kitchen fixtures. The T064.602, T064.600, and R116SS are standout models exemplifying this legacy. These products have been designed to elevate the user experience while combining functionality with aesthetics.

The T064.602 is a single-handle faucet that embodies simplicity and elegance. Its ergonomic design allows for easy temperature and flow control with a single motion. The faucet features a ceramic disc cartridge that ensures a drip-free experience and long-lasting performance, minimizing maintenance needs. Additionally, it comes with a brushed nickel finish that not only enhances its visual appeal but also provides resistance to fingerprints and water spots.

The T064.600 complements the T064.602 with its wall-mounted installation, offering a contemporary vibe that maximizes counter space. This model is ideal for smaller bathrooms or those looking to achieve a minimalist aesthetic. Like its counterpart, the T064.600 boasts a reliable ceramic disc cartridge that guarantees smooth operation and durability. Its sleek design and easy-to-clean surface make it not only a stylish choice but also a practical one.

The R116SS is a robust shower system that features advanced technology to deliver an exceptional showering experience. Its Rain shower head is equipped with multiple spray settings, providing users with the flexibility to choose their preferred water flow. The system includes an easy-to-use diverter, allowing for seamless transitions between shower head and hand shower. With a stainless steel body, the R116SS is built to withstand everyday wear and tear, while its anti-lime system helps prevent mineral buildup, ensuring optimal performance over time.

All three products emphasize water conservation without sacrificing performance, adhering to American Standard’s commitment to sustainability. They incorporate technology such as low-flow aerators and efficient water paths that significantly reduce water usage while maintaining powerful performance.

The design of the T064.602, T064.600, and R116SS is not just about functionality; each model integrates style with modern trends, making them suitable for a variety of bathroom decors. With their combination of innovative technology, durability, and aesthetic appeal, these American Standard fixtures undoubtedly enhance any bathroom space, providing an elevated user experience while ensuring high standards of quality are met.
