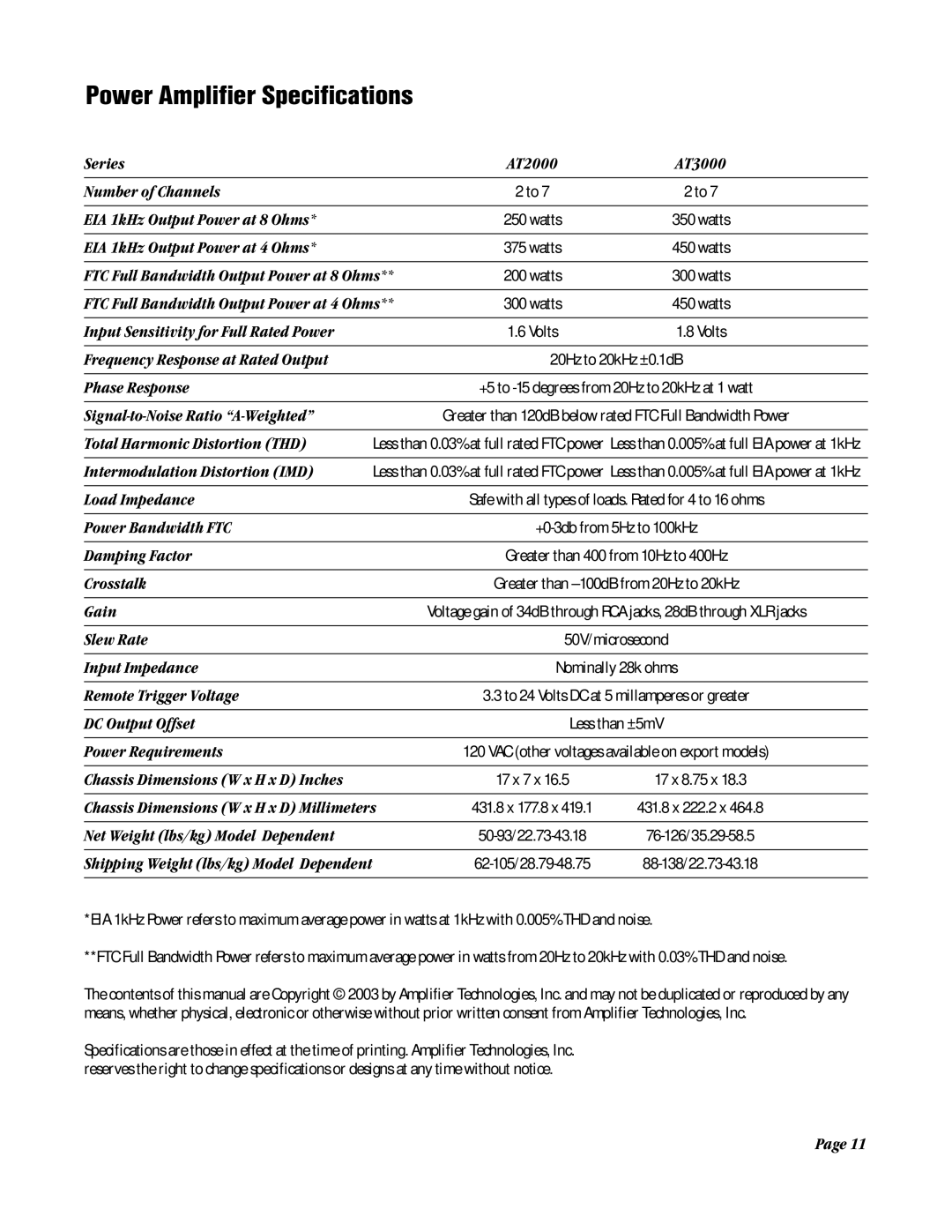

Page 11
Image 11

Power Amplifier Specifications

Series



AT2000

AT3000









Number of Channels



2 to 7

2 to 7









EIA 1kHz Output Power at 8 Ohms*



250 watts

350 watts









EIA 1kHz Output Power at 4 Ohms*



375 watts

450 watts







FTC Full Bandwidth Output Power at 8 Ohms**

200 watts

300 watts







FTC Full Bandwidth Output Power at 4 Ohms**

300 watts

450 watts









Input Sensitivity for Full Rated Power



1.6 Volts

1.8 Volts







Frequency Response at Rated Output



20Hz to 20kHz ±0.1dB







Phase Response



+5 to -15 degrees from 20Hz to 20kHz at 1 watt







Signal-to-Noise Ratio “A-Weighted”



Greater than 120dB below rated FTC Full Bandwidth Power





Total Harmonic Distortion (THD)

Less than 0.03% at full rated FTC power Less than 0.005% at full EIA power at 1kHz





Intermodulation Distortion (IMD)

Less than 0.03% at full rated FTC power Less than 0.005% at full EIA power at 1kHz







Load Impedance



Safe with all types of loads. Rated for 4 to 16 ohms







Power Bandwidth FTC



+0-3db from 5Hz to 100kHz







Damping Factor



Greater than 400 from 10Hz to 400Hz







Crosstalk



Greater than –100dB from 20Hz to 20kHz







Gain



Voltage gain of 34dB through RCA jacks, 28dB through XLR jacks







Slew Rate



50V/microsecond







Input Impedance



Nominally 28k ohms







Remote Trigger Voltage



3.3 to 24 Volts DC at 5 millamperes or greater







DC Output Offset



Less than ±5mV







Power Requirements



120 VAC (other voltages available on export models)









Chassis Dimensions (W x H x D) Inches



17 x 7 x 16.5

17 x 8.75 x 18.3







Chassis Dimensions (W x H x D) Millimeters

431.8 x 177.8 x 419.1

431.8 x 222.2 x 464.8









Net Weight (lbs/kg) Model Dependent



50-93/22.73-43.18

76-126/35.29-58.5









Shipping Weight (lbs/kg) Model Dependent



62-105/28.79-48.75

88-138/22.73-43.18









*EIA 1kHz Power refers to maximum average power in watts at 1kHz with 0.005% THD and noise.

**FTC Full Bandwidth Power refers to maximum average power in watts from 20Hz to 20kHz with 0.03% THD and noise.

The contents of this manual are Copyright © 2003 by Amplifier Technologies, Inc. and may not be duplicated or reproduced by any means, whether physical, electronic or otherwise without prior written consent from Amplifier Technologies, Inc.

Specifications are those in effect at the time of printing. Amplifier Technologies, Inc. reserves the right to change specifications or designs at any time without notice.
