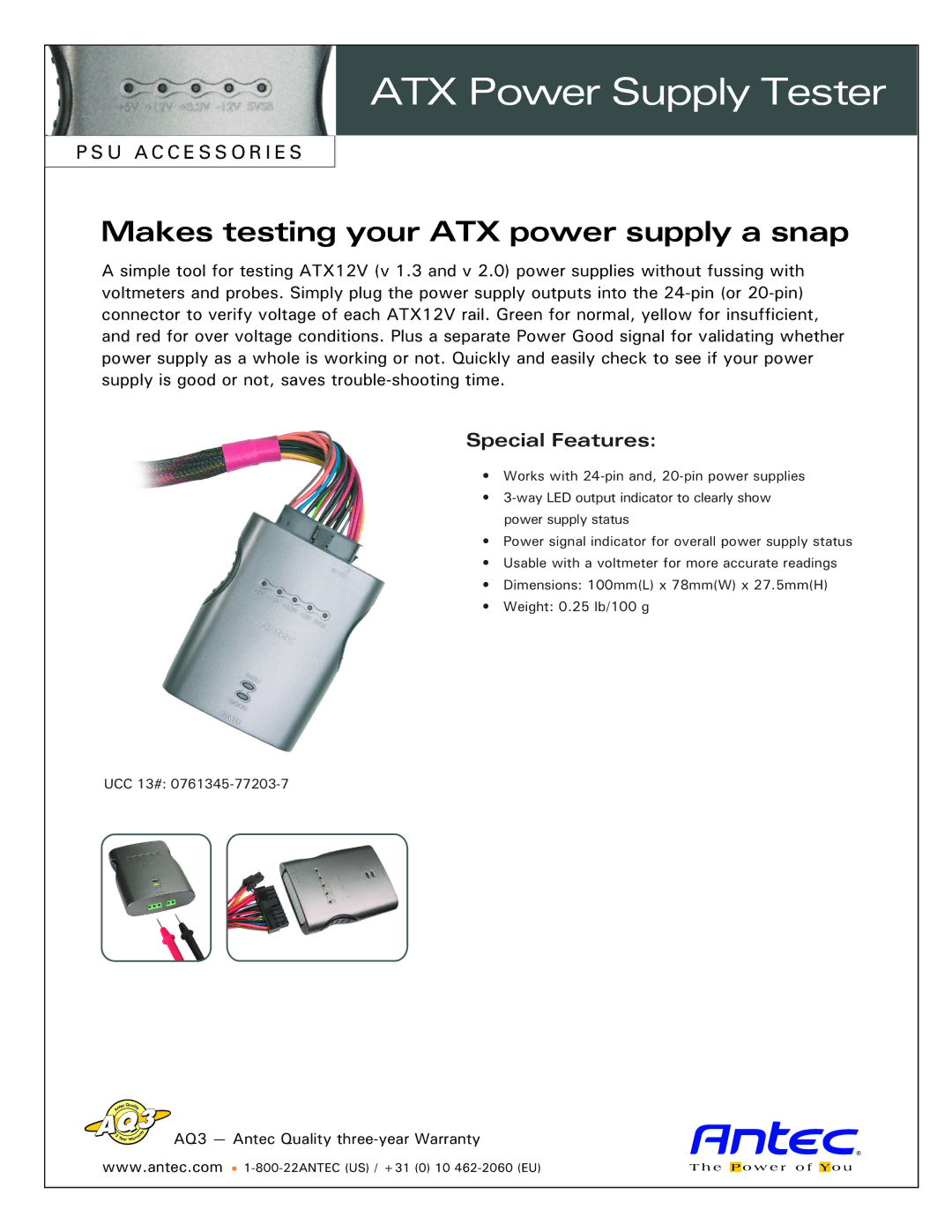

ATX Power Supply Tester

P S U A C C E S S O R I E S

Makes testing your ATX power supply a snap

A simple tool for testing ATX12V (v 1.3 and v 2.0) power supplies without fussing with voltmeters and probes. Simply plug the power supply outputs into the 24-pin (or 20-pin) connector to verify voltage of each ATX12V rail. Green for normal, yellow for insufficient, and red for over voltage conditions. Plus a separate Power Good signal for validating whether power supply as a whole is working or not. Quickly and easily check to see if your power supply is good or not, saves trouble-shooting time.

Special Features:

• Works with 24-pin and, 20-pin power supplies

• 3-way LED output indicator to clearly show power supply status

• Power signal indicator for overall power supply status

• Usable with a voltmeter for more accurate readings

• Dimensions: 100mm(L) x 78mm(W) x 27.5mm(H)

• Weight: 0.25 lb/100 g

UCC 13#: 0761345-77203-7

AQ3 — Antec Quality three-year Warranty
