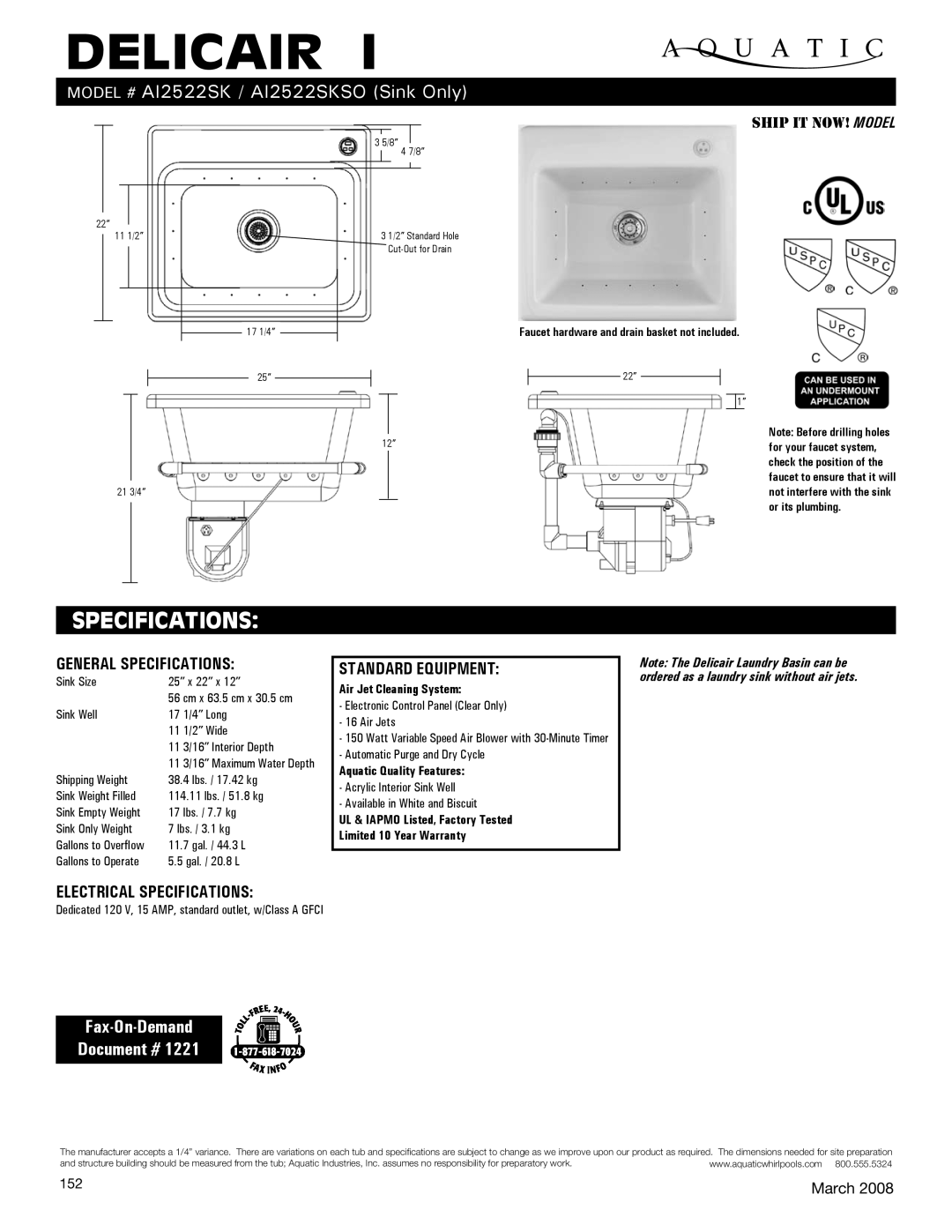

delicair I

model # AI2522SK / AI2522SKSO (Sink Only)

SHIP IT NOW! Model

3 5/8”

22”

4 7/8”

11 1/2”	3 1/2” Standard Hole
	Cut-Out for Drain

17 1/4”

25”

12”

21 3/4”

Faucet hardware and drain basket not included.

22”

1”

Note: Before drilling holes for yourRofaucetgh-InsystePlumbing, check theMeaposurementsition of the

faucet to ensure that it will not interfere with the sink or its plumbing.

SPECIFICATIONS:

General Specifications:

Sink Size	25” x 22” x 12”
	56 cm x 63.5 cm x 30.5 cm
Sink Well	17	1/4” Long
	11	1/2” Wide
	11	3/16” Interior Depth
	11	3/16” Maximum Water Depth
Shipping Weight	38.4 lbs. / 17.42 kg
Sink Weight Filled	114.11 lbs. / 51.8 kg
Sink Empty Weight	17 lbs. / 7.7 kg
Sink Only Weight	7 lbs. / 3.1 kg
Gallons to Overflow	11.7 gal. / 44.3 L
Gallons to Operate	5.5 gal. / 20.8 L

Electrical Specifications:

Dedicated 120 V, 15 AMP, standard outlet, w/Class A GFCI

Standard equipment:

Air Jet Cleaning System:

-Electronic Control Panel (Clear Only)

-16 Air Jets

-150 Watt Variable Speed Air Blower with 30-Minute Timer

-Automatic Purge and Dry Cycle

Aquatic Quality Features:

-Acrylic Interior Sink Well

-Available in White and Biscuit

UL & IAPMO Listed, Factory TestedLimited 10 Year Warranty

Note: The Delicair Laundry Basin can be ordered as a laundry sink without air jets.

Fax-On-Demand

Document # 1221

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
