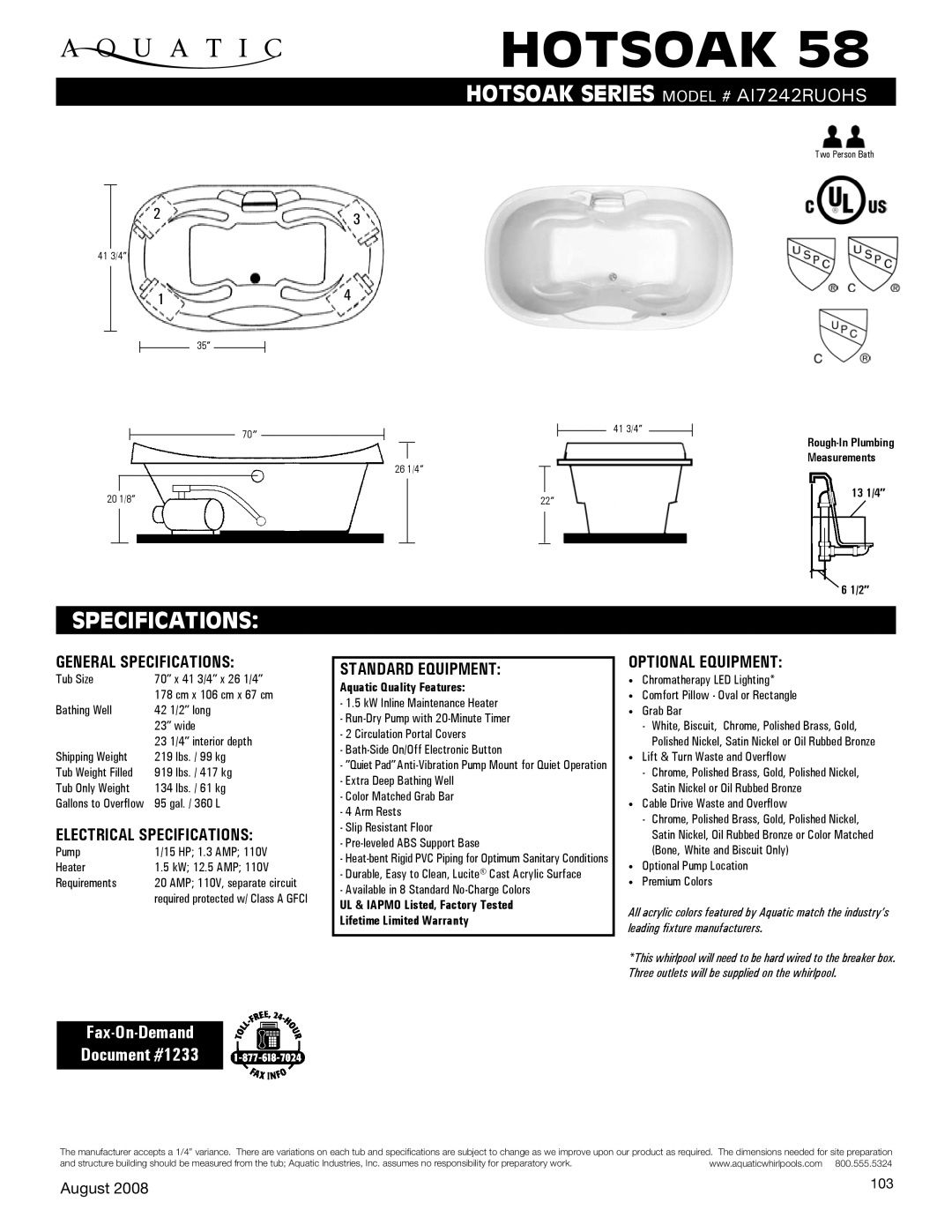

hotsoak 58

hotsoak series Model # ai7242ruohs

Two Person Bath

	2	3
41 3/4”

1	4
	35”

70”

26 1/4”

20 1/8” 22”

SPECIFICATIONS:

41 3/4”

Rough-In Plumbing Measurements

13 1/4”

6 1/2”

General Specifications:

Tub Size	70” x 41 3/4” x 26 1/4”
	178 cm x 106 cm x 67 cm
Bathing Well	42 1/2” long
	23” wide
	23 1/4” interior depth
Shipping Weight	219 lbs. / 99 kg
Tub Weight Filled	919 lbs. / 417 kg
Tub Only Weight	134 lbs. / 61 kg
Gallons to Overflow	95 gal. / 360 L

Electrical Specifications:

Pump	1/15 HP; 1.3 AMP; 110V
Heater	1.5 kW; 12.5 AMP; 110V
Requirements	20 AMP; 110V, separate circuit
	required protected w/ Class A GFCI

Fax-On-Demand

Document #1233

Standard equipment:

Aquatic Quality Features:

-1.5 kW Inline Maintenance Heater

-Run-Dry Pump with 20-Minute Timer

-2 Circulation Portal Covers

-Bath-side On/Off Electronic Button

-”Quiet Pad” anti-vibration pump mount for quiet operation

-Extra Deep Bathing Well

-Color Matched Grab Bar

-4 Arm Rests

-Slip Resistant Floor

-Pre-leveled ABS Support Base

-Heat-bent rigid PVC piping for optimum sanitary conditions

-Durable, easy to clean, Lucite® Cast Acrylic Surface

-Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory TestedLifetime Limited Warranty

optional equipment:

•Chromatherapy LED Lighting*

•Comfort Pillow - Oval or Rectangle

•Grab Bar

-White, Biscuit, Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

•Lift & Turn Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel,

Satin Nickel or Oil Rubbed Bronze

•Cable Drive Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel, Oil Rubbed Bronze or Color Matched (Bone, White and Biscuit only)

•Optional Pump Location

•Premium colors

All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.

*This whirlpool will need to be hard wired to the breaker box. Three outlets will be supplied on the whirlpool.

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
