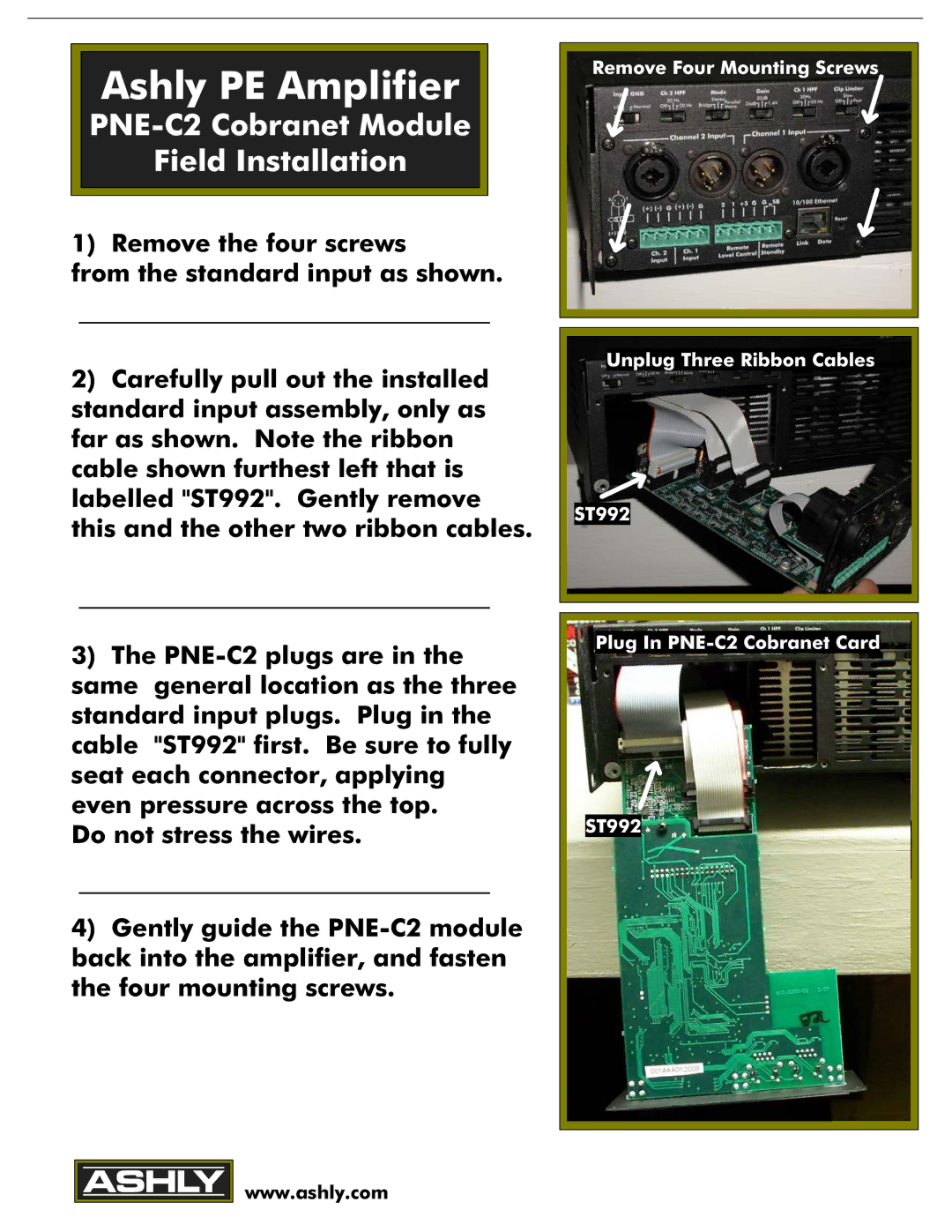

Ashly pne-c2 manual AshlyPEAmplifier, PNE-C2CobranetModule FieldInstalation

AshlyPEAmplifier

PNE-C2CobranetModule

FieldInstalation

1)Removethefourscrews

from thestandardinputasshown.

RemoveFourMountingScrews

2)Carefulypulouttheinstaled standardinputassembly,onlyas farasshown.Notetheribbon cableshownfurthestleftthatis labeled"ST992".Gentlyremove thisandtheothertworibboncables.

3)ThePNE-C2plugsareinthe same generallocationasthethree standardinputplugs.Pluginthe cable "ST992"first.Besuretofuly seateachconnector,applying evenpressureacrossthetop. Donotstressthewires.

4)GentlyguidethePNE-C2module backintotheamplifier,andfasten thefourmountingscrews.

UnplugThreeRibbonCables

ST992

PlugInPNEPNE-C2-C2CobranetModuleCard

ST992

www.ashly.com
