ASRock manual IMB-380-L IMB-380-D, Intel Q87

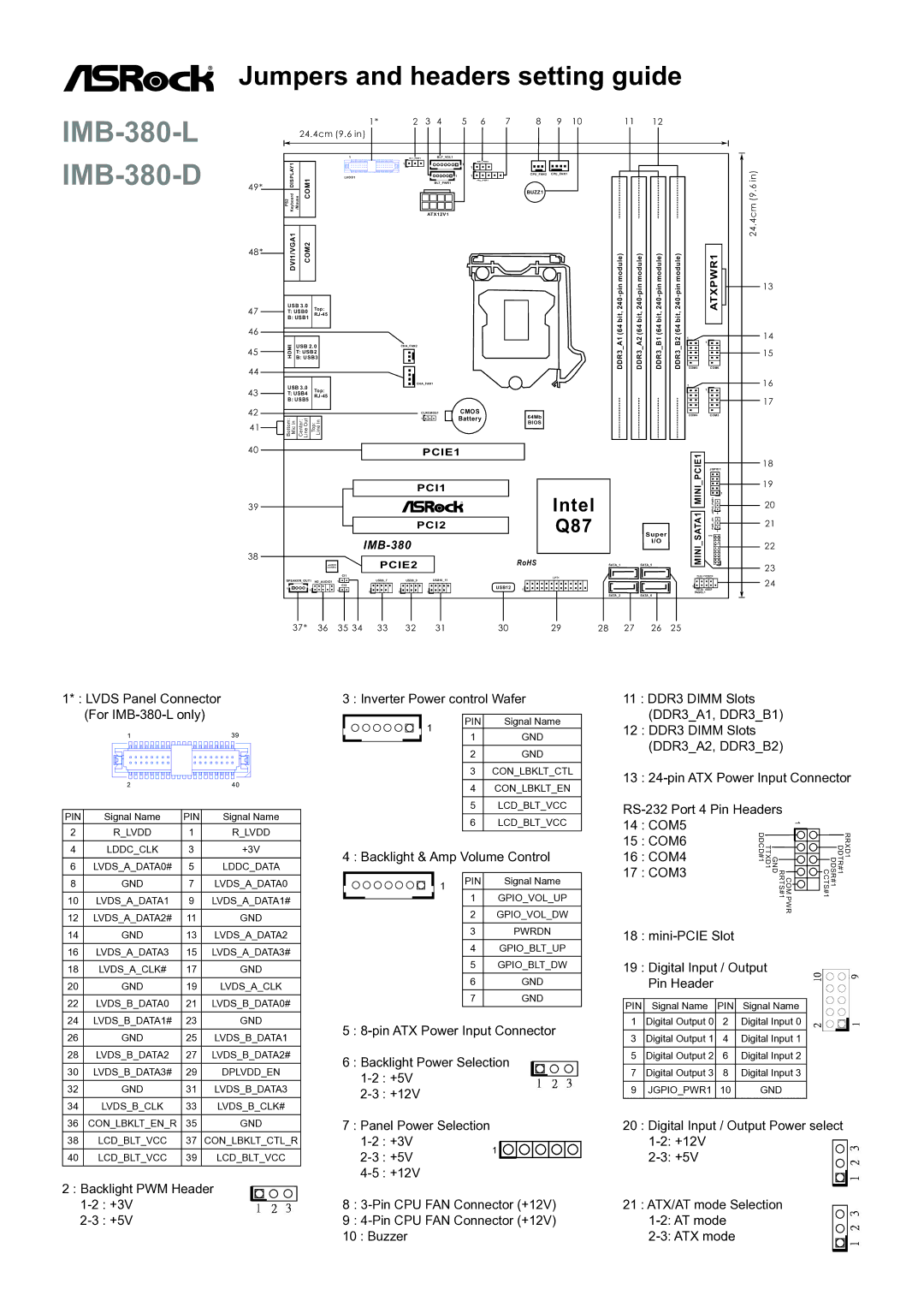

Jumpers and headers setting guide

IMB-380-L

IMB-380-D

49*

1* 2 3 4 5 6 7 8 9 10 11 12

24.4cm (9.6 in)

1 BLT_PWM1 BLT_VOL1

	1						BKT_PWR1
					1	1
	AY					1
PS2	DISPLKeyboard	/Mouse	COM1		1	1	CPU_FAN2	CPU_FAN1
				LVDS1
							PNL_PWR1
					BLT_PWR1
							BUZZ1
					ATX12V1

24.4cm (9.6 in)

48*

47

46

45

44

43

42

41

DVI1/VGA1		COM2
USB 3.0			Top:
T: USB0
			RJ-45
B: USB1
HDMI	USB 2.0
	T: USB2
	B: USB3
USB 3.0			Top:
T: USB4
			RJ-45
B: USB5
Bottom: Mic In		Center: Line Out	Top: Line In

CHA_FAN2

CHA_FAN1

CLRCMOS1 1

CMOS

Battery64Mb

BIOS

DDR3_A1 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

1

COM5

1

COM4

ATXPWR1

1

COM6

1

COM3

13

14

15

16

17

40

39

38

AUDIO CODEC

PCIE1

PCI1

PCI2

IMB-380

PCIE2

	Intel
	Q87	Super
		I/O
RoHS		SATA_5
	SATA_1

MINI_SATA1 MINI_PCIE1

JGPIO1

	1
JGPIO PWR1	1
PWR JP1
	1

TPM1

1

18

19

20

21

22

23

				CI1			LPT1	PLED PWRBTN
				USB6_7	USB8_9	USB10_11
SPEAKER_OUT1		HD_AUDIO1	1
				CI2		USB12		1
1
	1		1				1	HDLED RESET
				1	1	1
								PANEL1
							SATA_2	SATA_6

37* 36 35 34 33 32 31 30 29 28 27 26 25

24

1* : LVDS Panel Connector				3 : Inverter Power control Wafer
	(For IMB-380-L only)
						1		PIN			Signal Name
	1		39					1				GND
								2				GND
								3		CON_LBKLT_CTL
	2		40					4		CON_LBKLT_EN
								5		LCD_BLT_VCC
PIN	Signal Name	PIN	Signal Name					6		LCD_BLT_VCC
2	R_LVDD	1	R_LVDD
4	LDDC_CLK	3	+3V	4 : Backlight & Amp Volume Control
6	LVDS_A_DATA0#	5	LDDC_DATA
8	GND	7	LVDS_A_DATA0				1	PIN			Signal Name
								1		GPIO_VOL_UP
10	LVDS_A_DATA1	9	LVDS_A_DATA1#
								2	GPIO_VOL_DW
12	LVDS_A_DATA2#	11	GND
								3			PWRDN
14	GND	13	LVDS_A_DATA2
								4		GPIO_BLT_UP
16	LVDS_A_DATA3	15	LVDS_A_DATA3#
								5	GPIO_BLT_DW
18	LVDS_A_CLK#	17	GND
								6				GND
20	GND	19	LVDS_A_CLK
								7				GND
22	LVDS_B_DATA0	21	LVDS_B_DATA0#
24	LVDS_B_DATA1#	23	GND	5 : 8-pin ATX Power Input Connector
26	GND	25	LVDS_B_DATA1
28	LVDS_B_DATA2	27	LVDS_B_DATA2#	6 : Backlight Power Selection
30	LVDS_B_DATA3#	29	DPLVDD_EN
					1-2 : +5V
32	GND	31	LVDS_B_DATA3
					2-3 : +12V
34	LVDS_B_CLK	33	LVDS_B_CLK#
				7 : Panel Power Selection
36	CON_LBKLT_EN_R	35	GND
38	LCD_BLT_VCC	37	CON_LBKLT_CTL_R		1-2 : +3V					1
40	LCD_BLT_VCC	39	LCD_BLT_VCC		2-3 : +5V
					4-5 : +12V
2 : Backlight PWM Header
1-2 : +3V				8 : 3-Pin CPU FAN Connector (+12V)
2-3 : +5V				9 : 4-Pin CPU FAN Connector (+12V)
				10 : Buzzer

11 : DDR3 DIMM Slots

(DDR3_A1, DDR3_B1)

12 : DDR3 DIMM Slots

(DDR3_A2, DDR3_B2)

13 : 24-pin ATX Power Input Connector

RS-232 Port 4 Pin Headers
14 : COM5				1
15 : COM6	DDCD#1	RRTS#1 GND TTXD1	COMPWR	RRXD1 DDTR#1 DDSR#1 CCTS#1
16 : COM4

17 : COM3

18 : mini-PCIE Slot

19 : Digital Input / Output

Pin Header

PIN	Signal Name	PIN	Signal Name
1	Digital Output 0	2	Digital Input 0
3	Digital Output 1	4	Digital Input 1
5	Digital Output 2	6	Digital Input 2
7	Digital Output 3	8	Digital Input 3
9	JGPIO_PWR1	10	GND

20 : Digital Input / Output Power select

1-2: +12V

2-3: +5V

21 : ATX/AT mode Selection

1-2: AT mode

2-3: ATX mode
