DIMENSIONS
MODEL ABCD MOUNTS TO BAFFLE MODELS
CS95-8 934"11
14"11
34"4
14" 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W),
(249mm) (286mm) (298mm) (108mm) G22-8, M222(W), P900, VP60-R

DESCRIPTION

Ideal for contractors with limited storage facilities, this conically shaped enclo-
sure nests to achieve reduced inventory space requirements and transportation
costs. Furnished with four combination conduit knockouts 12" – 34" (13-19mm),
four J-clips and two flexible perforated mounting straps. One-piece CRS con-
struction, undercoated, patch-jute lined, and finished in epoxy.
The CS95-8 enclosure is a perfect for use with the new Atlas Sound SD72W,
SD72WV or the new high performance 8" 8-watt coaxial model GD87W loud-
speaker/transformer/baffle packages. Note: Enclosure is not designed to mount
other loudspeaker packages with pre-mounted high performance transformers
(HT-87, HT-167, HT-327).

ARCHITECT AND ENGINEER SPECIFICATIONS

The metal protective enclosure shall be Atlas Sound Model (CS95-8) or approved
equal. The enclosure shall have four 8-32 J-Clips installed in the mounting flange.
The enclosures shall have 4 combination knockouts 12" – 34" (13-19mm) spaced
90 degrees apart and shall be of one piece construction.
Interior of enclosure shall be undercoated to prevent mechanical and acoustical
resonances. Enclosure shall be finished in textured epoxy.
The enclosure shall mount Atlas Sound Model _________ baffle or approved equal.

OTHER SUGGESTED MOUNTING ACCESSORIES:

Model 81-8R Tile Bridge: For suspended 2’x2’or 2’x4’ ceiling applications.
See SL3-1431.
Model P78-8 Mounting Ring: To mark the enclosure location in new construc-
tion drywall (hard-deck) applications (16" stud spacing only). See SL3-1454.
Model P77-8 Mounting Ring: For retrofit applications in drywall (hard-deck)
surfaces. See SL3-1454
Specifications subject to change without notice
©2002 Atlas Sound Printed in U.S.A. 000902 ATS001383 RevB 9/02 SL3-1306

235

THREE

1601 JACK MCKAYBLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435 AtlasSound.com
ROUND RECESSED

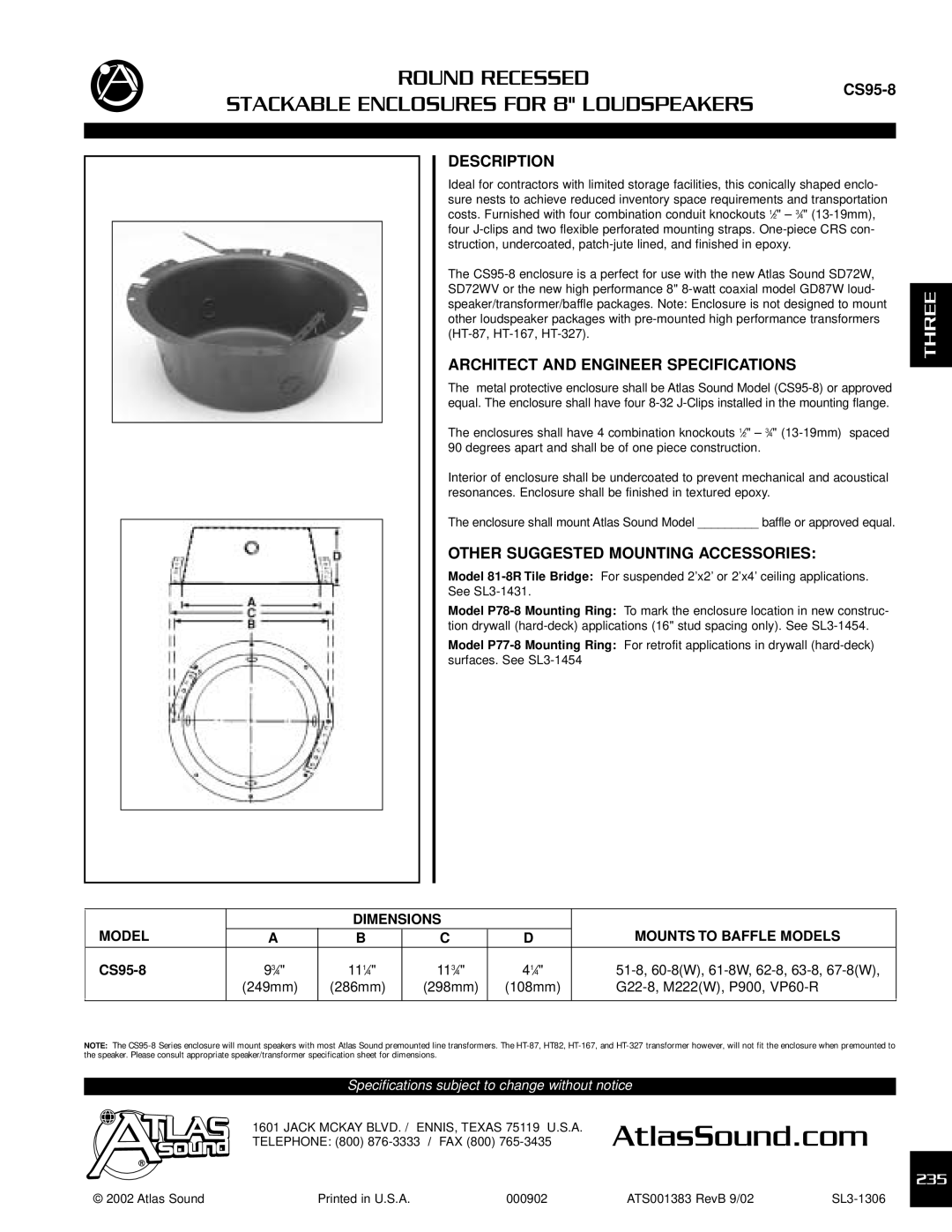

STACKABLE ENCLOSURES FOR 8" LOUDSPEAKERS CS95-8
NOTE: The CS95-8 Series enclosure will mount speakers with most Atlas Sound premounted line transformers. The HT-87, HT82, HT-167, and HT-327 transformer however, will not fit the enclosure when premounted to
the speaker. Please consult appropriate speaker/transformer specification sheet for dimensions.
