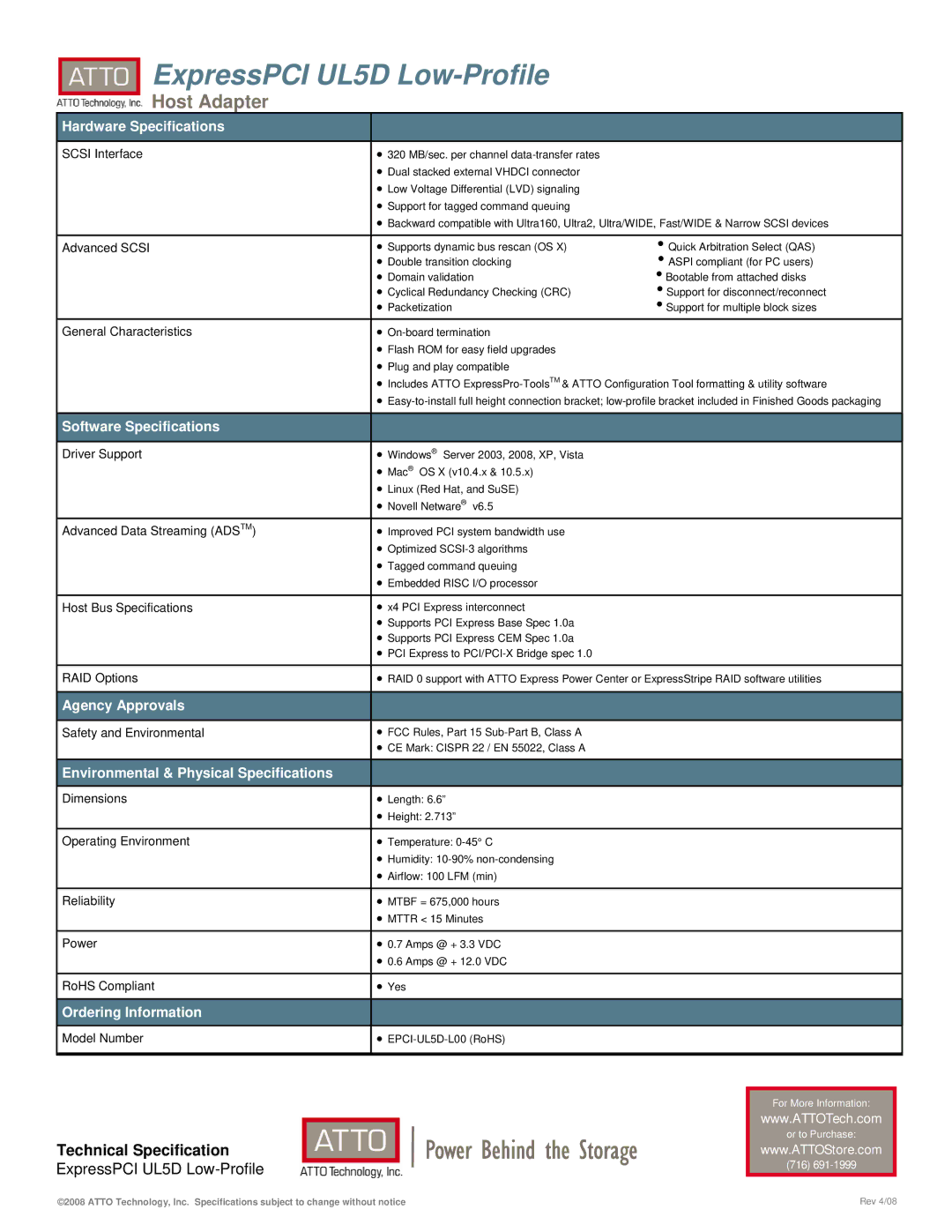

ExpressPCI UL5D Low-Profile



Host Adapter





Hardware Specifications





SCSI Interface

320 MB/sec. per channel data-transfer rates





Dual stacked external VHDCI connector





Low Voltage Differential (LVD) signaling





Support for tagged command queuing





Backward compatible with Ultra160, Ultra2, Ultra/WIDE, Fast/WIDE & Narrow SCSI devices







Advanced SCSI

Supports dynamic bus rescan (OS X)

Quick Arbitration Select (QAS)



Double transition clocking

ASPI compliant (for PC users)



Domain validation

Bootable from attached disks



Cyclical Redundancy Checking (CRC)

Support for disconnect/reconnect



Packetization

Support for multiple block sizes

General Characteristics

On-board termination





Flash ROM for easy field upgrades





Plug and play compatible





Includes ATTO ExpressPro-ToolsTM& ATTO Configuration Tool formatting & utility software



Easy-to-install full height connection bracket; low-profile bracket included in Finished Goods packaging







Software Specifications





Driver Support

Windows® Server 2003, 2008, XP, Vista





Mac® OS X (v10.4.x & 10.5.x)





Linux (Red Hat, and SuSE)





Novell Netware® v6.5



Advanced Data Streaming (ADSTM)

Improved PCI system bandwidth use





Optimized SCSI-3 algorithms





Tagged command queuing





Embedded RISC I/O processor









Host Bus Specifications

x4 PCI Express interconnect





Supports PCI Express Base Spec 1.0a





Supports PCI Express CEM Spec 1.0a





PCI Express to PCI/PCI-X Bridge spec 1.0







RAID Options

RAID 0 support with ATTO Express Power Center or ExpressStripe RAID software utilities







Agency Approvals





Safety and Environmental

FCC Rules, Part 15 Sub-Part B, Class A





CE Mark: CISPR 22 / EN 55022, Class A









Environmental & Physical Specifications





Dimensions

Length: 6.6”





Height: 2.713”









Operating Environment

Temperature: 0-45° C





Humidity: 10-90% non-condensing





Airflow: 100 LFM (min)









Reliability

MTBF = 675,000 hours





MTTR < 15 Minutes









Power

0.7 Amps @ + 3.3 VDC





0.6 Amps @ + 12.0 VDC









RoHS Compliant

Yes









Ordering Information





Model Number

EPCI-UL5D-L00 (RoHS)









Technical Specification

ExpressPCI UL5D Low-Profile

Power Behind the Storage

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

(716) 691-1999

©2008 ATTO Technology, Inc. Specifications subject to change without notice

Rev 4/08
