Installing the Model 1547 Traffic Sensor

The Model 1547 is a complete traffic detection solution for use with Series 1500 Intercom Systems. The sensor’s operating temperature range is -20º to +55ºC (-4º to 131ºF). A heater may be required in the drive-up enclosure for some low temperature applications.

1.Using a flat blade screw driver, carefully remove the knockout on the bottom of the 1520 Lane Station.

2.Plug the 1547 connector into the exposed port on the bottom of the 1520.

3.Drill two 5/16 inch holes 3/8 inch apart. Center the holes on the 1547’s IR emitter and receiver lenses (see detail below).

4.Turn the potentiometer on top of the sensor all the way clockwise.

5.Using the included hardware, mount the 1547 to the drive-up enclosure.



1520

Drive-up









Cabinet Wall



Adjust





Potentiometer



Knockout

Sensor

IR Beam







Detail

Sensor Cable









Mount to horizontal or





vertical flat surface



Sensor may be mounted vertically

Approx.

(as shown) or horizontally.

1 meter (40 in.)





















from







5/16”

pavement







3/8”

Sensor

Hole

Detail

2048 Mercer Road, Lexington, Kentucky 40511-1071



Phone: 859-233-4599 • Fax: 859-233-4510



Customer Toll-Free USA & Canada: 800-322-8346

752-527

Website: http://www.audioauthority.com

11/06



Page 1
Image 1

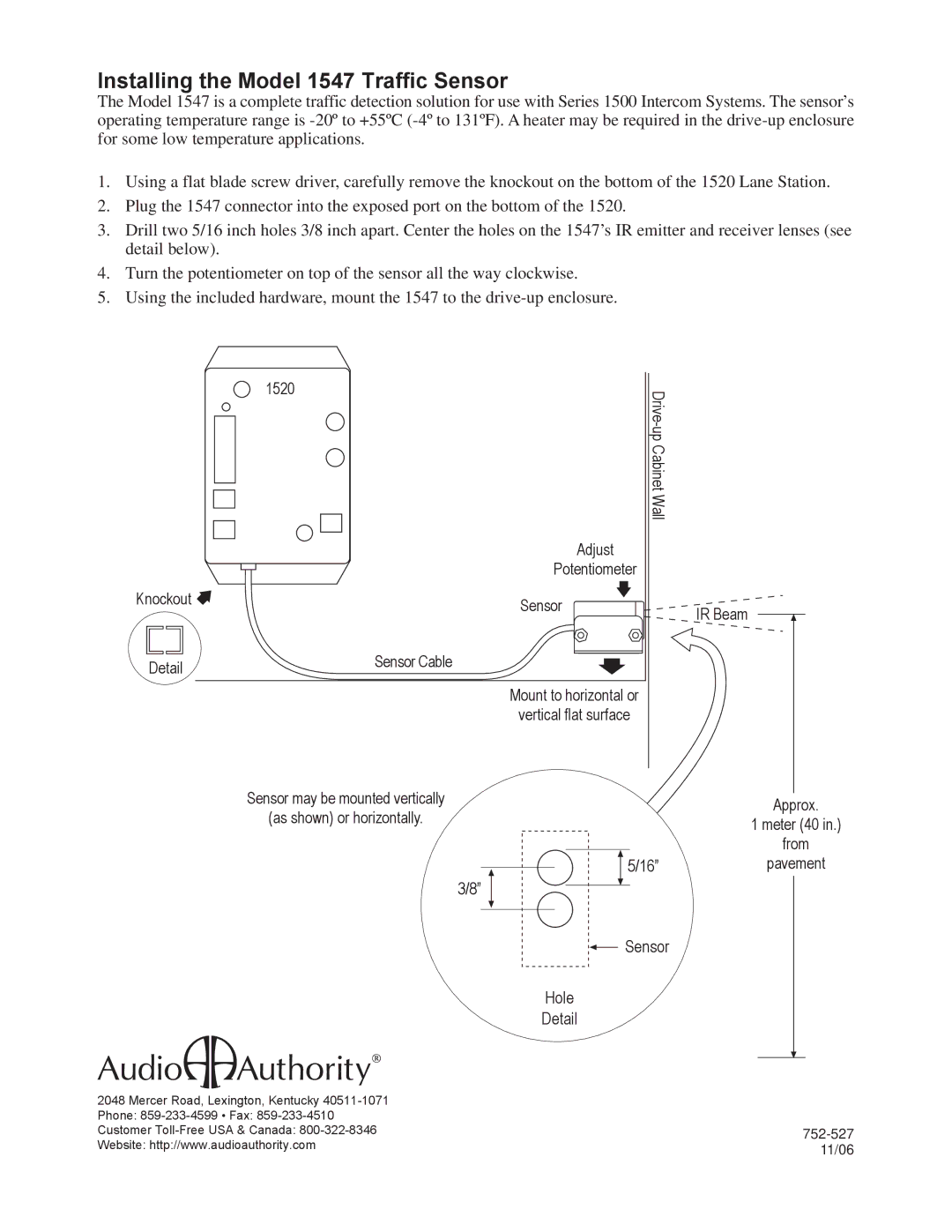

Audio Authority manual Installing the Model 1547 Traffic Sensor, Sensor Hole Detail
