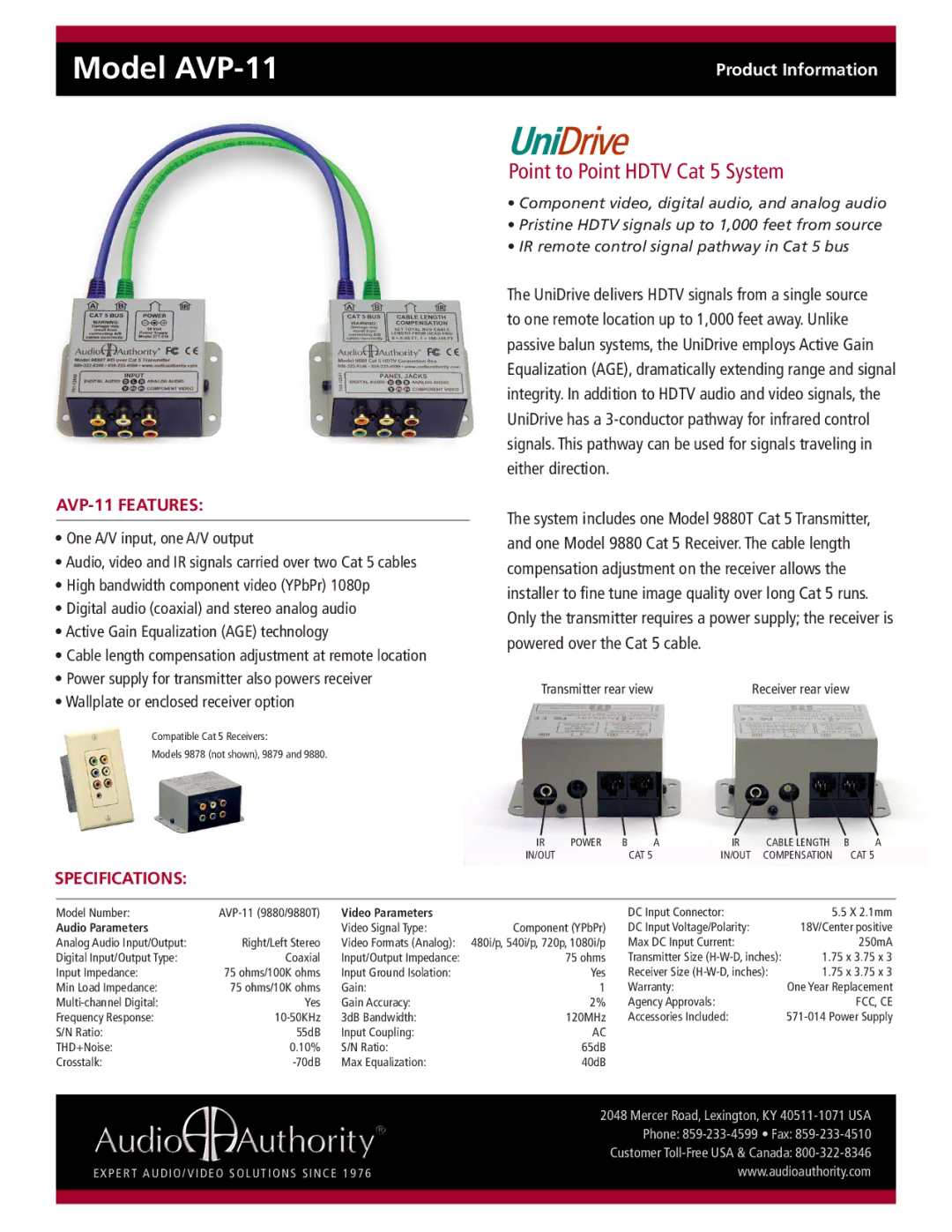

Model AVP-11

Model AVP-11

AVP-11 FEATURES:

One A/V input, one A/V output

Audio, video and IR signals carried over two Cat 5 cables

High bandwidth component video (YPbPr) 1080p
Digital audio (coaxial) and stereo analog audio
Active Gain Equalization (AGE) technology

Cable length compensation adjustment at remote location

Power supply for transmitter also powers receiver

Wallplate or enclosed receiver option

Compatible Cat 5 Receivers:

Models 9878 (not shown), 9879 and 9880.

Product Information

Point to Point HDTV Cat 5 System

Component video, digital audio, and analog audio

Pristine HDTV signals up to 1,000 feet from source

IR remote control signal pathway in Cat 5 bus

The UniDrive delivers HDTV signals from a single source to one remote location up to 1,000 feet away. Unlike passive balun systems, the UniDrive employs Active Gain Equalization (AGE), dramatically extending range and signal integrity. In addition to HDTV audio and video signals, the UniDrive has a 3-conductor pathway for infrared control signals. This pathway can be used for signals traveling in either direction.

The system includes one Model 9880T Cat 5 Transmitter, and one Model 9880 Cat 5 Receiver. The cable length compensation adjustment on the receiver allows the installer to fine tune image quality over long Cat 5 runs. Only the transmitter requires a power supply; the receiver is powered over the Cat 5 cable.

Transmitter rear view

Receiver rear view

IR

POWER

B

A

IR

CABLE LENGTH B

A

IN/OUT





CAT 5

IN/OUT

COMPENSATION

CAT 5

SPECIFICATIONS:

Model Number:

AVP-11 (9880/9880T)

Video Parameters



DC Input Connector:

5.5 X 2.1mm

Audio Parameters



Video Signal Type:

Component (YPbPr)

DC Input Voltage/Polarity:

18V/Center positive

Analog Audio Input/Output:

Right/Left Stereo

Video Formats (Analog):

480i/p, 540i/p, 720p, 1080i/p

Max DC Input Current:

250mA

Digital Input/Output Type:

Coaxial

Input/Output Impedance:

75 ohms

Transmitter Size (H-W-D, inches):

1.75 x 3.75 x 3

Input Impedance:

75 ohms/100K ohms

Input Ground Isolation:

Yes

Receiver Size (H-W-D, inches):

1.75 x 3.75 x 3

Min Load Impedance:

75 ohms/10K ohms

Gain:

1

Warranty:

One Year Replacement

Multi-channel Digital:

Yes

Gain Accuracy:

2%

Agency Approvals:

FCC, CE

Frequency Response:

10-50KHz

3dB Bandwidth:

120MHz

Accessories Included:

571-014 Power Supply

S/N Ratio:

55dB

Input Coupling:

AC





THD+Noise:

0.10%

S/N Ratio:

65dB





Crosstalk:

-70dB

Max Equalization:

40dB







2048 Mercer Road, Lexington, KY 40511-1071 USA



Phone: 859-233-4599 • Fax: 859-233-4510



Customer Toll-Free USA & Canada: 800-322-8346

E X P E R T A U D I O / V I D E O S O L U T I O N S S I N C E 1 9 7 6

www.audioauthority.com





2/08
