Cd Changer, Models CDC-FDC

INSTALLATION GUIDE FOR:

CAUTION: FOLLOW THE CONNECTION SEQUENCE DESCRIBED BELOW TO ENSURE PROPER RECOGNITION OF THE CD CHANGER BY THE FACTORY RADIO.

DO NOT FORCE CONNECTORS TOGETHER. LINE UP LOCATING TABS AND CAREFULLY MATE CONNECTORS.

NOTE: Only works with 6 Disc CD Changer.

IMPORTANT : Installation must be done with vehicle and radio in OFF position.

1.Mount the Six Disc CD Changer at the desired location in the trunk following the installation instructions supplied with the CD Changer.

2.Carefully connect the 8-pin circular din connector from the CDC-FDC to the mating socket on the Six Disc CD Changer.

3.Route the CDC-FDC cable toward the existing factory CD Changer connector on back of radio.

4.With the vehicle off, carefully connect the CDC-FDC male connector to the female CD Changer connector on back of factory radio.

1.Load CD's into the CD Changer cartridge and insert the cartridge into the changer.

2.Start vehicle and allow CD Changer to cycle.

Perform a brief functional test to verify proper operation according to the owner's manual.

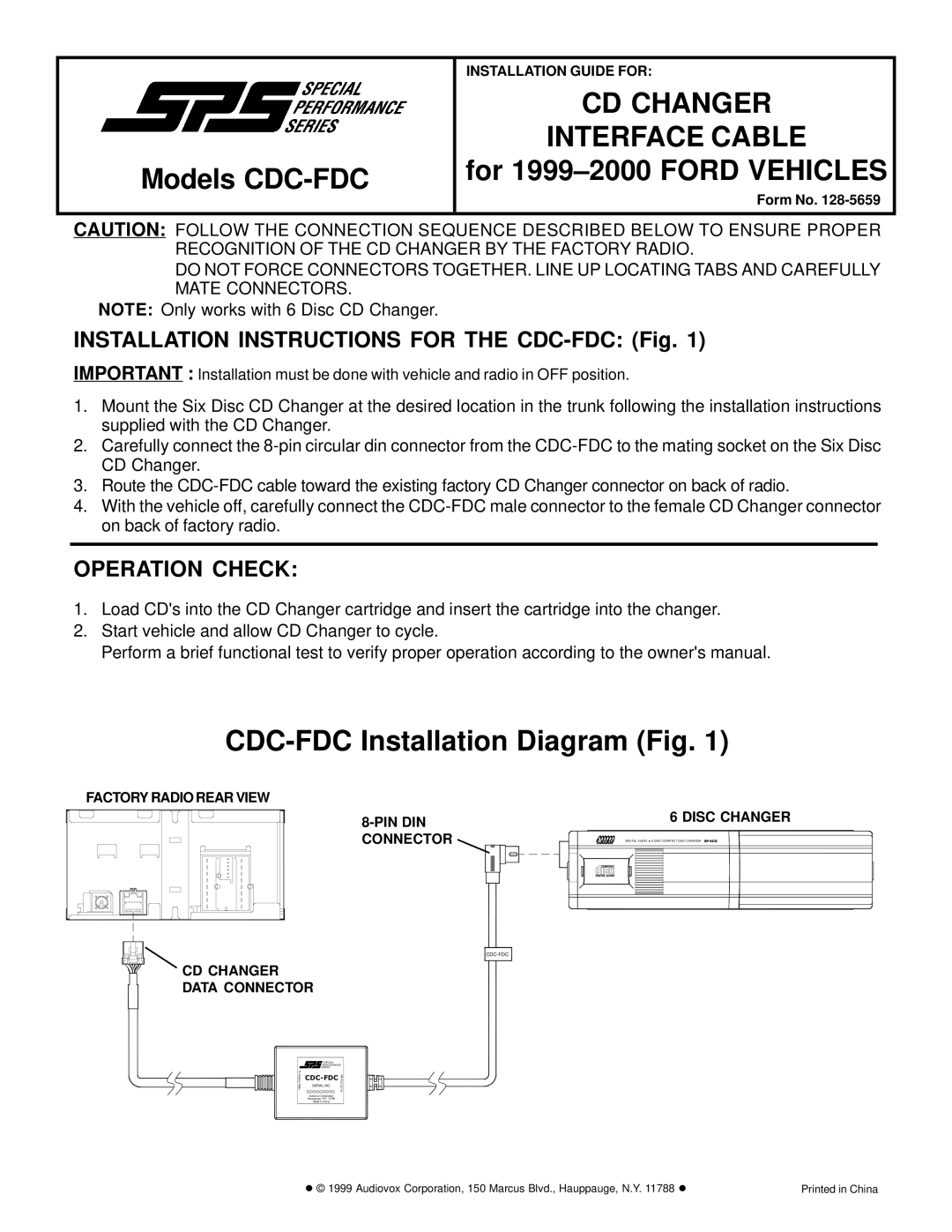

CDC-FDC Installation Diagram (Fig. 1)

FACTORY RADIO REAR VIEW

8-PIN DIN CONNECTOR

CDC-FDC

CD CHANGER

DATA CONNECTOR

SPECIAL

PERFORMANCE

SERIES

6 DISC CHANGER

DIGITAL AUDIO

6 DISC COMPACT DISC CHANGER SP-6CD
