12HPL76 Woofer

700 W continuous program power capacity

76 mm (3 in) aluminium voice coil

50 – 3500 Hz response

99 dB sensitivity Neodymium magnet allows a very light yet powerful motor assembly Ventilated voice coil gap for reduced power compression

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specification

Nominal Diameter

320 (12) mm (in)

Nominal Impedance (1)

8 Ohm

Minimum Impedence

6.7 Ohm

Nominal Power Handling (2)

350 W

Continuous Power Handling (3)

700 W

Sensitivity (1W/1m) (4)

99 dB

Frequency Range

50 -3500 Hz

Voice Coil Diameter

76 (3) mm (in)

Winding Material

Aluminium

Former Material

Glass Fibre

Winding Depth

17.5 (11/16) mm (in)

Magnetic Gap Depth

10 (0.4) mm (in)

Flux Density

1.15 T

Thiele & Small Parameters

Fs

49 Hz

Re

5.7 Ohm

Qes

0.26

Qms

2.5

Qts

0.25

Vas

91 (3.2) dm3 (ft3)

Sd

522 (80.9) cm2 (in2)

Eta Zero

4.1 %

Xmax

+/- 4 mm

Xvar

+/- 5.5 mm

Mms

43 g

Bl

17.3 Txm

Le

1.5 mH



Mounting and Shipping Info





Overall Diameter

315 mm (12.4 in)

Bolt Circle Diameter

296 mm (11.6 in)

Baffle Cutout Diameter

282 mm (11.1 in)

Depth

144 mm (5.7 in)

Flange and Gasket Thickness

12.5 mm (0.5 in)

Net Weight

3.2 kg (7.0 lb)

Shipping Weight

3.9 kg (8.6 lb)

Shipping Box

380x380x170 mm



(15x15x6.7 in)

1For different impedances, please ask.

22 hours test made with continuous pink noise signal (6 dB crest factor). Power calculated on rated minimum impedance.

3Power on Continuous Program is defined as 3 dB greater than the Nominal rating.

4Applied RMS Voltage is set to 2.83V for 8 ohms or 2.0V for 4 ohms Nominal Impedance

Page 1

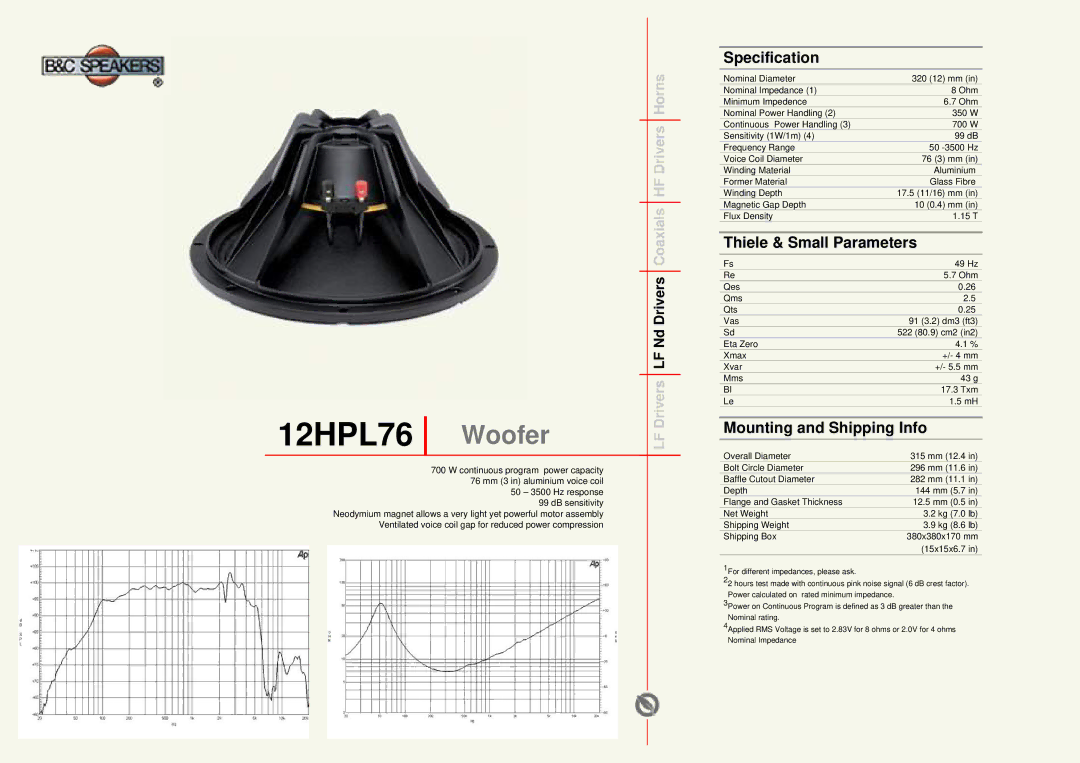

Image 1
