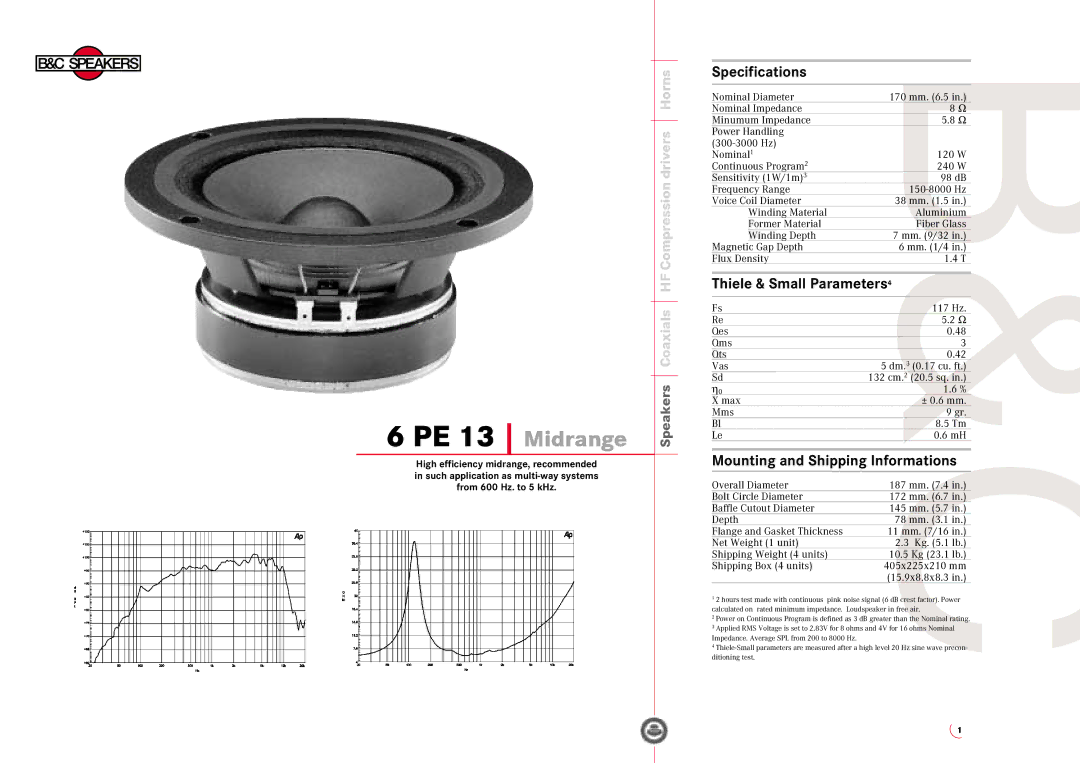

6 PE 13 Midrange
High efficiency midrange, recommended in such application as
Speakers Coaxials HF Compression drivers Horns
|
|
|
|
Specifications |
| B&C | |
|
|
| |
|
|
| |
Nominal Diameter | 170 mm. (6.5 in.) | ||
Nominal Impedance |
| 8 Ω | |
Minumum Impedance |
| 5.8 Ω | |
Power Handling |
|
|
|
|
|
| |
Nominal1 |
| 120 W | |
Continuous Program2 |
| 240 W | |
Sensitivity (1W/1m)3 |
| 98 dB | |
Frequency Range |
| ||
Voice Coil Diameter |
| 38 mm. (1.5 in.) | |
Winding Material |
| Aluminium | |
Former Material |
| Fiber Glass | |
Winding Depth |
| 7 mm. (9/32 in.) | |
Magnetic Gap Depth |
| 6 mm. (1/4 in.) | |
Flux Density |
| 1.4 T | |
|
|
| |
Thiele & Small Parameters4 |
|
| |
|
|
|
|
Fs |
| 117 Hz. | |
Re |
| 5.2 Ω | |
Qes |
| 0.48 |
|
Qms |
| 3 |
|
Qts |
| 0.42 |
|
Vas | 5 dm.3 (0.17 cu. ft.) | ||
Sd | 132 cm.2 (20.5 sq. in.) | ||
η 0 |
| 1.6 % |
|
X max |
| ± 0.6 mm. | |
Mms |
| 9 gr. | |
Bl |
| 8.5 Tm | |
Le |
| 0.6 mH | |
|
| ||
Mounting and Shipping Informations |
| ||
Overall Diameter | 187 mm. (7.4 in.) | ||
Bolt Circle Diameter | 172 mm. (6.7 in.) | ||
Baffle Cutout Diameter | 145 mm. (5.7 in.) | ||
Depth |
| 78 mm. (3.1 in.) | |
Flange and Gasket Thickness | 11 mm. (7/16 in.) | ||
Net Weight (1 unit) |
| 2.3 Kg. (5.1 lb.) | |
Shipping Weight (4 units) | 10.5 Kg (23.1 lb.) | ||
Shipping Box (4 units) | 405x225x210 mm | ||
| (15.9x8.8x8.3 in.) | ||
12 hours test made with continuous pink noise signal (6 dB crest factor). Power calculated on rated minimum impedance. Loudspeaker in free air.
2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. 3 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal Impedance. Average SPL from 200 to 8000 Hz.
4
1
