DCM50 MF Drivers

160 W continuous program power capacity 2” horn throat diameter 400 – 10000 Hz response 108.5 dB sensitivity

Neodymium magnet assembly

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specifications

Throat Diameter (1)

50 mm (2 in)

Nominal Impedance

8 ohm

Minimum Impedance

8 ohm

Nominal Power Handling (2)

80 W

Continuous Power Handling (3)

160 W

Sensitivity (1W/1m) (4)

108.5 dB

Frequency Range

0.4 -10 kHz

Recommended Crossover (5)

400 Hz

Voice Coil Diameter

51 mm (2 in)

Winding Material

Aluminium

Inductance

0.18 mH

Diaphragm Material

Composite

Flux Density

2.1 T



Mounting and Shipping Info





Four M6 holes 90° on 102 mm



(4 in) diameter



Overall Diameter

152 mm (6 in)

Depth

108 mm (4.25 in)

Net Weight

3.2 kg (7 lb)

Shipping Weight

3.4 kg (7.5 lb)

Shipping Box

170x170x140 mm



(6.7x6.7x5.5 in)

1Driver mounted on 320 Hz exponential horn

22 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range . Power calculated on rated minimum impedance.

3Power on Continuous Program is defined as 3 dB greater than the Nominal rating.

4Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. 512 dB/oct. or higher slope high-pass filter.

Page 1

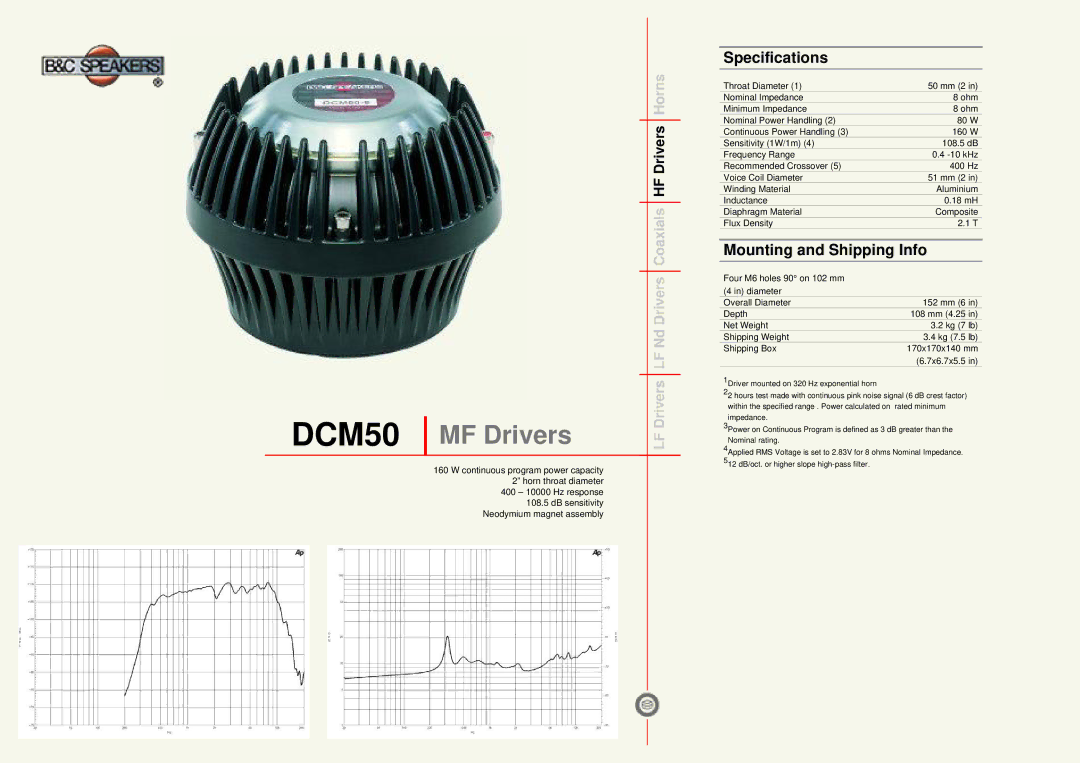

Image 1
B&C Speakers specifications DCM50 MF Drivers, Specifications, Mounting and Shipping Info

DCM50 specifications

B&C Speakers DCM50 is a high-performance loudspeaker driver that stands out for its versatility and superior sound quality. Designed primarily for professional audio applications, it serves as an ideal solution for a wide range of environments including live sound, installations, and studio monitoring. This driver is particularly noted for its impressive handling of both vocal and instrumental frequencies, making it a favorite among sound engineers and audiophiles alike.

One of the main features of the DCM50 is its robust neodymium magnet structure, which contributes to a lightweight yet powerful design. The neodymium magnet not only helps in reducing the overall weight of the driver, making it easier to transport and install, but it also allows for a more compact setup without compromising on performance. Coupled with a high-efficiency voice coil, this construction enables the DCM50 to produce clear and dynamic sound even at high output levels.

The DCM50 employs a unique cone design that enhances its acoustic performance. The cone, made from carefully selected materials, ensures smooth response across a wide frequency range. This characteristic is crucial for delivering accurate sound reproduction, whether in the crisp highs of vocals or the deep lows of bass instruments. The combination of its light weight and high stiffness results in reduced distortion, allowing for better sound fidelity.

Another noteworthy aspect of the DCM50 is its thermal management capabilities. Equipped with features that dissipate heat effectively, this driver can withstand extended periods of use without succumbing to thermal fatigue. This makes it especially suitable for high-demand applications where prolonged operation is common.

The DCM50 also showcases advanced engineering techniques, including finite element analysis. This technology optimizes the magnetic and mechanical performance of the driver, resulting in enhanced linearity and a more balanced sound profile. The driver is designed for enhanced reliability, with a rugged construction that can endure the rigors of both touring and fixed installations.

In summary, the B&C Speakers DCM50 is a professional-grade loudspeaker driver that focuses on high performance, reliability, and sound fidelity. Its lightweight neodymium magnet, advanced cone design, superior thermal management, and state-of-the-art engineering make it an exceptional choice for any sound reinforcement scenario. Whether used in a live concert setup or a studio environment, the DCM50 consistently delivers top-quality audio, making it a trusted option for professionals across the audio industry.
