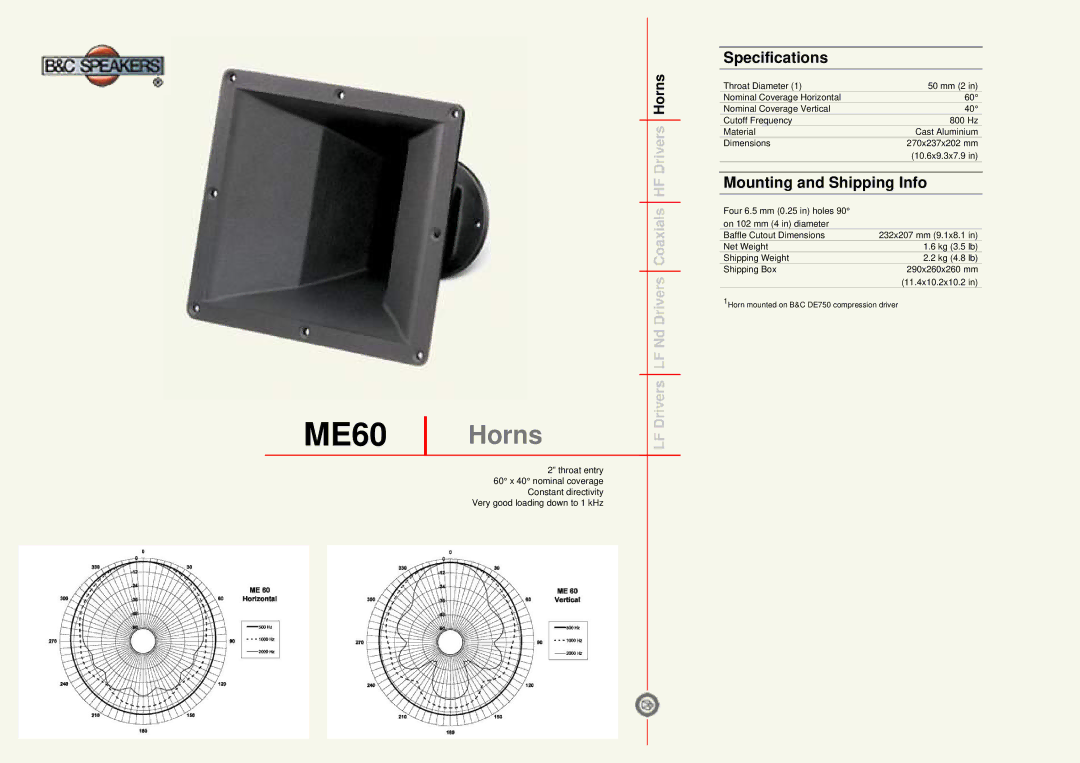

ME60 | Horns |
2” throat entry 60° x 40° nominal coverage Constant directivity Very good loading down to 1 kHz
LF Drivers LF Nd Drivers Coaxials HF Drivers Horns
Specifications
Throat Diameter (1) | 50 mm (2 in) |
Nominal Coverage Horizontal | 60° |
Nominal Coverage Vertical | 40° |
Cutoff Frequency | 800 Hz |
Material | Cast Aluminium |
Dimensions | 270x237x202 mm |
| (10.6x9.3x7.9 in) |
| |
Mounting and Shipping Info | |
|
|
Four 6.5 mm (0.25 in) holes 90° |
|
on 102 mm (4 in) diameter |
|
Baffle Cutout Dimensions | 232x207 mm (9.1x8.1 in) |
Net Weight | 1.6 kg (3.5 lb) |
Shipping Weight | 2.2 kg (4.8 lb) |
Shipping Box | 290x260x260 mm |
| (11.4x10.2x10.2 in) |
1Horn mounted on B&C DE750 compression driver
