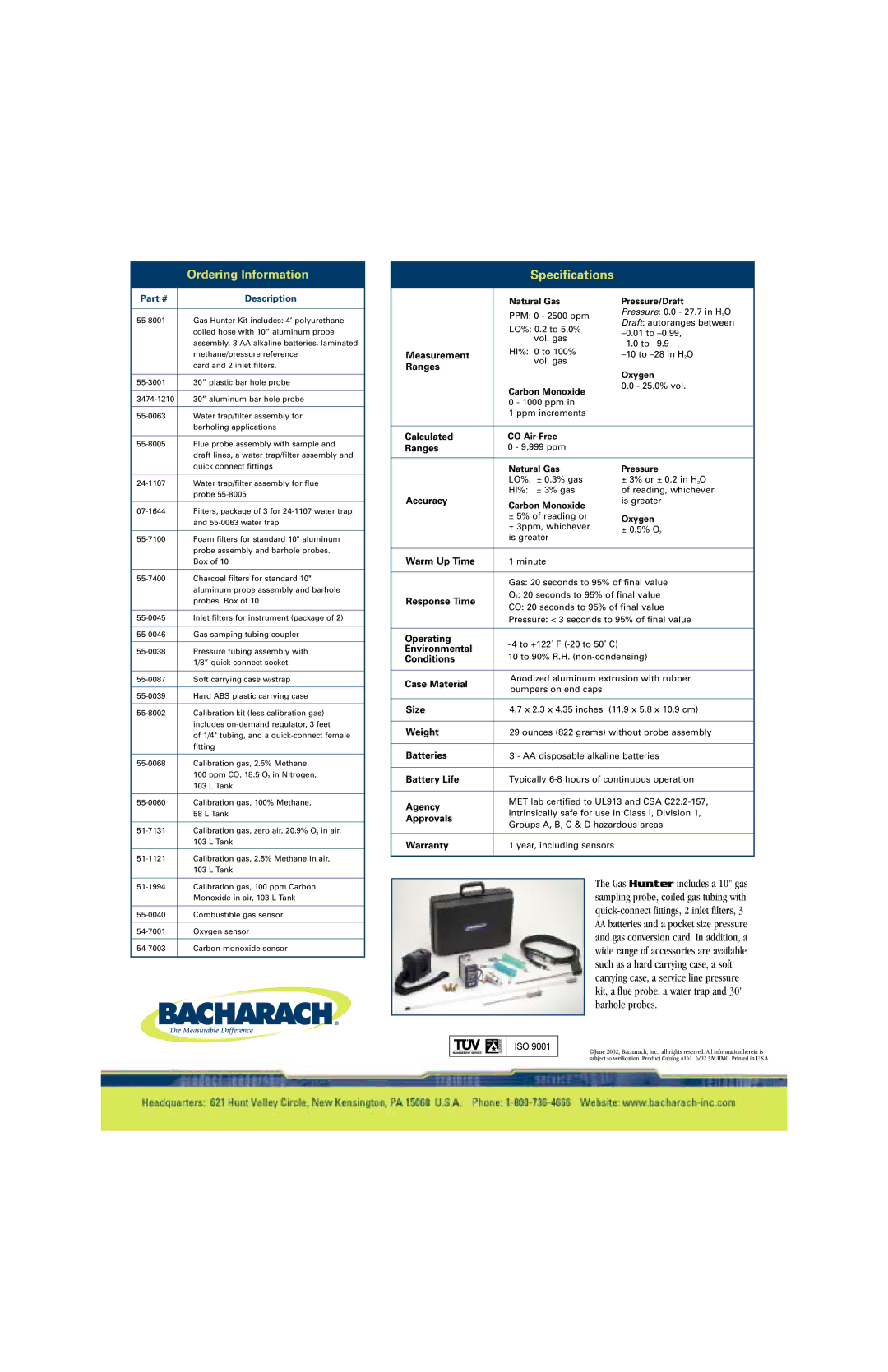

Ordering Information





Part #

Description





55-8001

Gas Hunter Kit includes: 4’ polyurethane



coiled hose with 10” aluminum probe



assembly. 3 AA alkaline batteries, laminated



methane/pressure reference



card and 2 inlet filters.





55-3001

30” plastic bar hole probe





3474-1210

30” aluminum bar hole probe

55-0063

Water trap/filter assembly for



barholing applications





55-8005

Flue probe assembly with sample and



draft lines, a water trap/filter assembly and



quick connect fittings

24-1107

Water trap/filter assembly for flue



probe 55-8005

07-1644

Filters, package of 3 for 24-1107 water trap



and 55-0063 water trap

55-7100

Foam filters for standard 10" aluminum



probe assembly and barhole probes.



Box of 10

55-7400

Charcoal filters for standard 10"



aluminum probe assembly and barhole



probes. Box of 10





55-0045

Inlet filters for instrument (package of 2)





55-0046

Gas samping tubing coupler

55-0038

Pressure tubing assembly with



1/8” quick connect socket





55-0087

Soft carrying case w/strap





55-0039

Hard ABS plastic carrying case





55-8002

Calibration kit (less calibration gas)



includes on-demand regulator, 3 feet



of 1/4" tubing, and a quick-connect female



fitting

55-0068

Calibration gas, 2.5% Methane,



100 ppm CO, 18.5 O2 in Nitrogen,



103 L Tank

55-0060

Calibration gas, 100% Methane,



58 L Tank





51-7131

Calibration gas, zero air, 20.9% O2 in air,



103 L Tank





51-1121

Calibration gas, 2.5% Methane in air,



103 L Tank





51-1994

Calibration gas, 100 ppm Carbon



Monoxide in air, 103 L Tank

55-0040

Combustible gas sensor

54-7001

Oxygen sensor

54-7003

Carbon monoxide sensor





Specifications



Natural Gas

Pressure/Draft



PPM: 0 - 2500 ppm

Pressure: 0.0 - 27.7 in H2O



Draft: autoranges between



LO%: 0.2 to 5.0%



–0.01 to –0.99,



vol. gas



–1.0 to –9.9



HI%: 0 to 100%

Measurement

–10 to –28 in H2O

Ranges

vol. gas





Oxygen







Carbon Monoxide

0.0 - 25.0% vol.







0 - 1000 ppm in





1 ppm increments









Calculated

CO Air-Free



Ranges

0 - 9,999 ppm











Natural Gas

Pressure



LO%: ± 0.3% gas

± 3% or ± 0.2 in H2O

Accuracy

HI%: ± 3% gas

of reading, whichever

Carbon Monoxide

is greater







± 5% of reading or

Oxygen



± 3ppm, whichever



± 0.5% O2



is greater











Warm Up Time

1 minute









Gas: 20 seconds to 95% of final value

Response Time

O2: 20 seconds to 95% of final value

CO: 20 seconds to 95% of final value





Pressure: < 3 seconds to 95% of final value

Operating

- 4 to +122˚ F (-20 to 50˚ C)

Environmental

10 to 90% R.H. (non-condensing)

Conditions





Case Material

Anodized aluminum extrusion with rubber

bumpers on end caps













Size

4.7 x 2.3 x 4.35 inches

(11.9 x 5.8 x 10.9 cm)





Weight

29 ounces (822 grams) without probe assembly





Batteries

3 - AA disposable alkaline batteries





Battery Life

Typically 6-8 hours of continuous operation





Agency

MET lab certified to UL913 and CSA C22.2-157,

intrinsically safe for use in Class I, Division 1,

Approvals

Groups A, B, C & D hazardous areas







Warranty

1 year, including sensors







The Gas Hunter includes a 10" gas sampling probe, coiled gas tubing with quick-connect fittings, 2 inlet filters, 3 AA batteries and a pocket size pressure and gas conversion card. In addition, a wide range of accessories are available such as a hard carrying case, a soft carrying case, a service line pressure kit, a flue probe, a water trap and 30" barhole probes.

©June 2002, Bacharach, Inc., all rights reserved. All information herein is subject to verification. Product Catalog 4161. 6/02 5M HMC. Printed in U.S.A.
