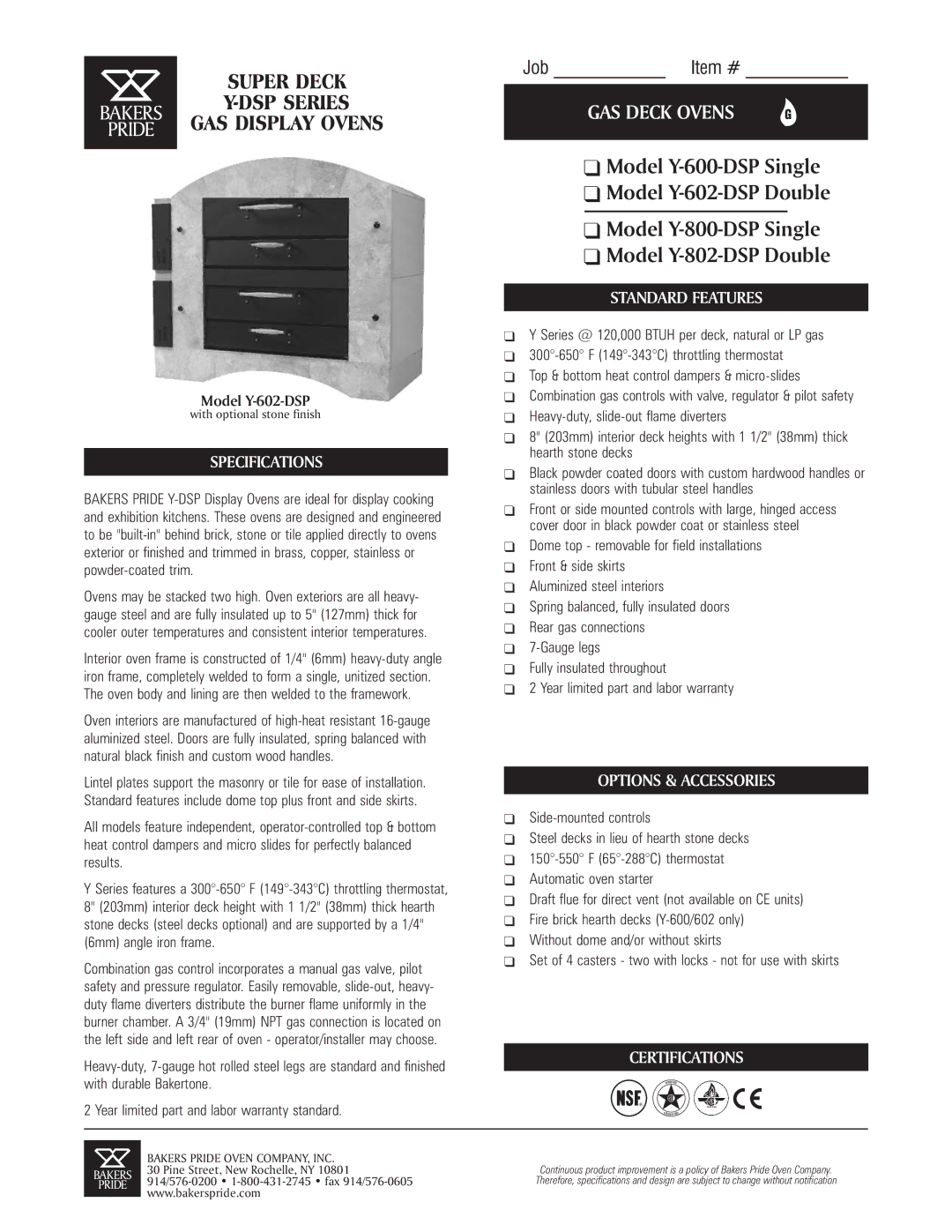

Bakers Pride Oven Y-802-DSP specifications Model Y-600-DSPSingle Model Y-602-DSPDouble, Bakers

	SUPER DECK
BAKERS	Y-DSP SERIES
	GAS DISPLAY OVENS
PRIDE

Model Y-602-DSP

with optional stone finish

SPECIFICATIONS

BAKERS PRIDE Y-DSP Display Ovens are ideal for display cooking and exhibition kitchens. These ovens are designed and engineered to be "built-in" behind brick, stone or tile applied directly to ovens exterior or finished and trimmed in brass, copper, stainless or powder-coated trim.

Ovens may be stacked two high. Oven exteriors are all heavy- gauge steel and are fully insulated up to 5" (127mm) thick for cooler outer temperatures and consistent interior temperatures.

Interior oven frame is constructed of 1/4" (6mm) heavy-duty angle iron frame, completely welded to form a single, unitized section. The oven body and lining are then welded to the framework.

Oven interiors are manufactured of high-heat resistant 16-gauge aluminized steel. Doors are fully insulated, spring balanced with natural black finish and custom wood handles.

Lintel plates support the masonry or tile for ease of installation. Standard features include dome top plus front and side skirts.

All models feature independent, operator-controlled top & bottom heat control dampers and micro slides for perfectly balanced results.

Y Series features a 300°-650° F (149°-343°C) throttling thermostat, 8" (203mm) interior deck height with 1 1/2" (38mm) thick hearth stone decks (steel decks optional) and are supported by a 1/4" (6mm) angle iron frame.

Combination gas control incorporates a manual gas valve, pilot safety and pressure regulator. Easily removable, slide-out, heavy- duty flame diverters distribute the burner flame uniformly in the burner chamber. A 3/4" (19mm) NPT gas connection is located on the left side and left rear of oven - operator/installer may choose.

Heavy-duty, 7-gauge hot rolled steel legs are standard and finished with durable Bakertone.

2 Year limited part and labor warranty standard.

	BAKERS PRIDE OVEN COMPANY, INC.
BAKERS	30 Pine Street, New Rochelle, NY 10801
	914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
	www.bakerspride.com

Job ____________ Item # ___________

GAS DECK OVENS G

￿Model Y-600-DSP Single

￿Model Y-602-DSP Double

￿Model Y-800-DSP Single

￿Model Y-802-DSP Double

STANDARD FEATURES

￿Y Series @ 120,000 BTUH per deck, natural or LP gas

￿300°-650° F (149°-343°C) throttling thermostat

￿Top & bottom heat control dampers & micro-slides

￿Combination gas controls with valve, regulator & pilot safety

￿Heavy-duty, slide-out flame diverters

￿8" (203mm) interior deck heights with 1 1/2" (38mm) thick hearth stone decks

￿Black powder coated doors with custom hardwood handles or stainless doors with tubular steel handles

￿Front or side mounted controls with large, hinged access cover door in black powder coat or stainless steel

￿Dome top - removable for field installations

￿Front & side skirts

￿Aluminized steel interiors

￿Spring balanced, fully insulated doors

￿Rear gas connections

￿7-Gauge legs

￿Fully insulated throughout

￿2 Year limited part and labor warranty

OPTIONS & ACCESSORIES

￿Side-mounted controls

￿Steel decks in lieu of hearth stone decks

￿150°-550° F (65°-288°C) thermostat

￿Automatic oven starter

￿Draft flue for direct vent (not available on CE units)

￿Fire brick hearth decks (Y-600/602 only)

￿Without dome and/or without skirts

￿Set of 4 casters - two with locks - not for use with skirts

CERTIFICATIONS

	DESIGN
®	CERTIFIED
	CERTIFIED

Continuous product improvement is a policy of Bakers Pride Oven Company. Therefore, specifications and design are subject to change without notification
