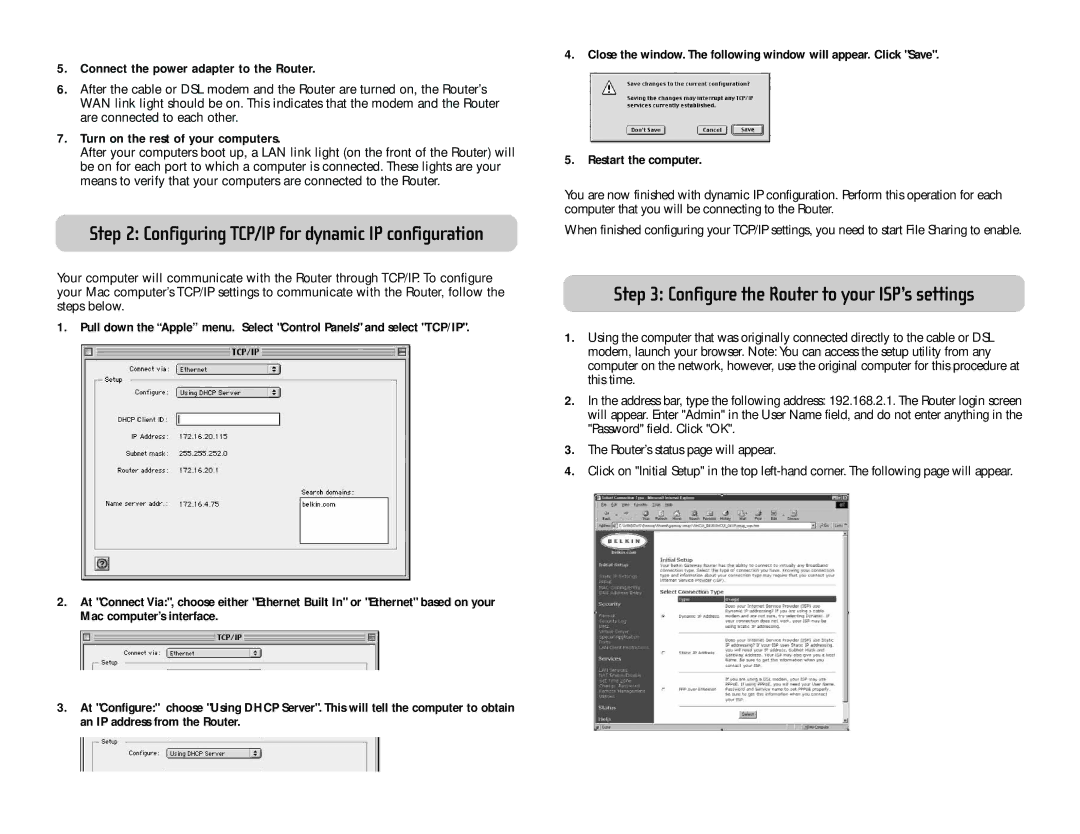

5.Connect the power adapter to the Router.

6.After the cable or DSL modem and the Router are turned on, the Router’s WAN link light should be on. This indicates that the modem and the Router are connected to each other.

7.Turn on the rest of your computers.

After your computers boot up, a LAN link light (on the front of the Router) will be on for each port to which a computer is connected. These lights are your means to verify that your computers are connected to the Router.

Step 2: Configuring TCP/IP for dynamic IP configuration

Your computer will communicate with the Router through TCP/IP. To configure your Mac computer’s TCP/IP settings to communicate with the Router, follow the steps below.

1. Pull down the “Apple” menu. Select "Control Panels" and select "TCP/IP".

2.At "Connect Via:", choose either "Ethernet Built In" or "Ethernet" based on your Mac computer’s interface.

4.Close the window. The following window will appear. Click "Save".

5.Restart the computer.

You are now finished with dynamic IP configuration. Perform this operation for each computer that you will be connecting to the Router.

When finished configuring your TCP/IP settings, you need to start File Sharing to enable.

Step 3: Configure the Router to your ISP’s settings

1.Using the computer that was originally connected directly to the cable or DSL modem, launch your browser. Note: You can access the setup utility from any computer on the network, however, use the original computer for this procedure at this time.

2.In the address bar, type the following address: 192.168.2.1. The Router login screen will appear. Enter "Admin" in the User Name field, and do not enter anything in the "Password" field. Click "OK".

3.The Router’s status page will appear.

4.Click on "Initial Setup" in the top left-hand corner. The following page will appear.

3.At "Configure:" choose "Using DHCP Server". This will tell the computer to obtain an IP address from the Router.

Page 1 Page 2
Page 2
Image 2

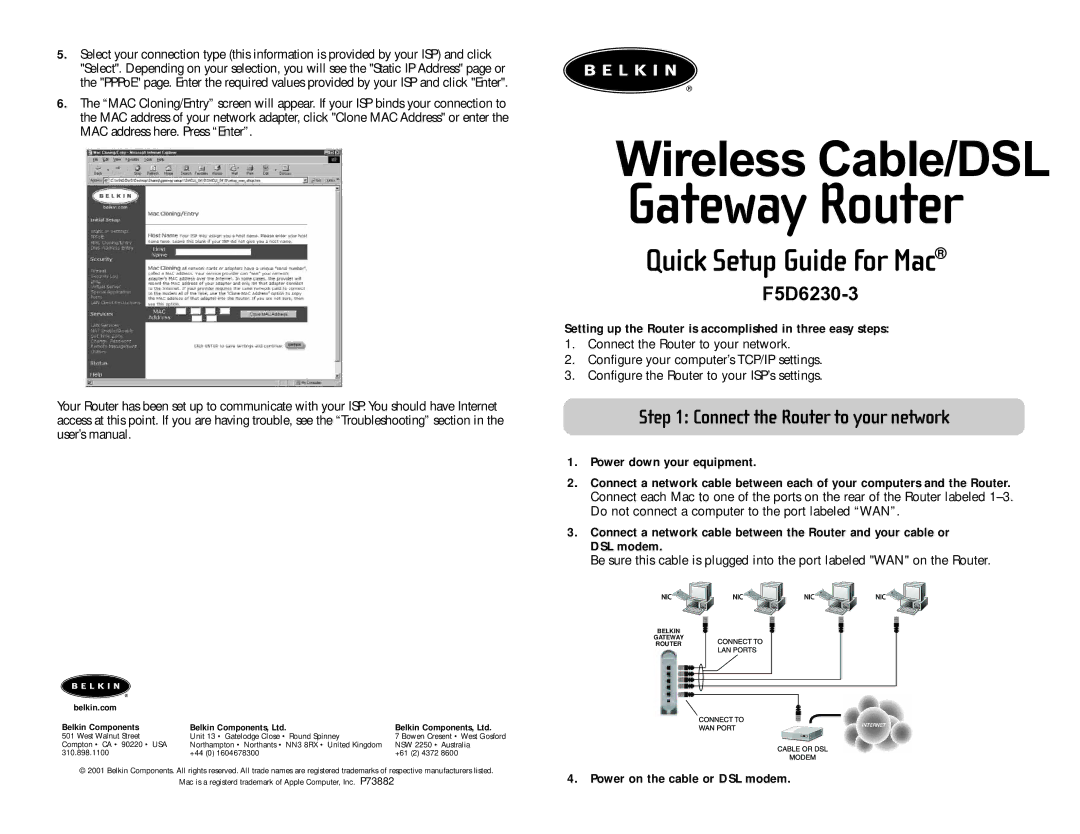

Belkin F5D6230-3 setup guide Connect the power adapter to the Router, Turn on the rest of your computers
Page 1 Page 2

F5D6230-3 specifications

The Belkin F5D6230-3 is a wireless router known for its robust performance and user-friendly features, making it a popular choice for both home and small office environments. This device operates on the IEEE 802.11b/g wireless communication standards, providing a reliable connection to all compatible devices. With a maximum wireless speed of up to 54 Mbps, the F5D6230-3 is suitable for everyday activities such as web browsing, email, and even streaming multimedia content, although users with higher bandwidth needs might want to look for faster alternatives.

One of the key features of the Belkin F5D6230-3 is its integrated firewall, which provides essential security measures to protect the network from unauthorized access. It employs Network Address Translation (NAT) and Stateful Packet Inspection (SPI) technology, which work together to enhance security by monitoring incoming traffic and ensuring that only legitimate data packets enter the network. This is particularly important for users who frequently engage in online transactions or manage sensitive information.

The router includes multiple Ethernet ports, allowing users to connect wired devices directly for faster and more stable connections. The inclusion of four LAN ports makes it easy to connect computers, printers, and gaming consoles without relying solely on wireless connectivity, thus ensuring a seamless and efficient network experience.

Another notable feature is its ease of setup and use. The Belkin F5D6230-3 comes with a user-friendly web interface, guiding users through the installation and configuration process. Additionally, the router supports WEP and WPA/WPA2 encryption protocols, enabling users to select their preferred level of security.

The design of the F5D6230-3 is compact and unobtrusive, allowing it to fit seamlessly into various environments without taking up much space. Furthermore, its versatile antenna positioning helps to optimize signal strength and reception throughout the coverage area.

Overall, the Belkin F5D6230-3 remains a solid option for users looking for an efficient wireless networking solution that combines reliability, security, and ease of use.
